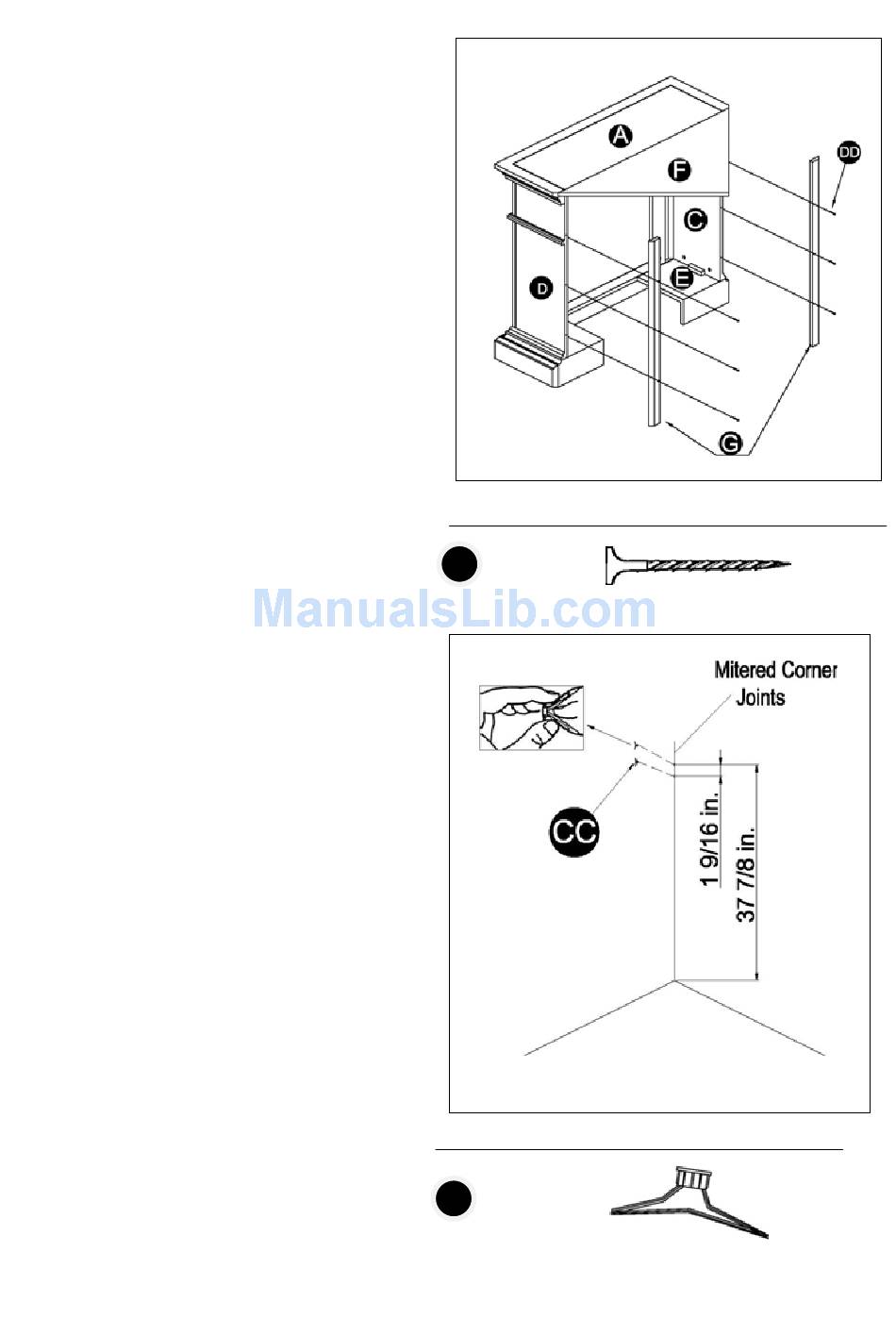

7. Attach the left and right Backboard (I) trim pieces to the
back of the fireplace with ST4 Screw 1-3/16 in. (DD) as
shown in Fig 7.
8. Drill two holes (5/16 in.) in the corner where the
fireplace is to be displayed. Drill the first hole 37-7/8 in.
from the ground up, and the second hole 1-9/16 in.
from the first hole as shown in Fig 8. Put the Wall
Anchor (CC) in the holes by pinching the anchor tabs
together as shown in Fig 8.
AA
BB
Hardware Used
ST4 Screw
DD
1 -3/16 in.
Hardware Used
Wall Anchor
CC
8
Fig 7
Fig 8
×8
×2
