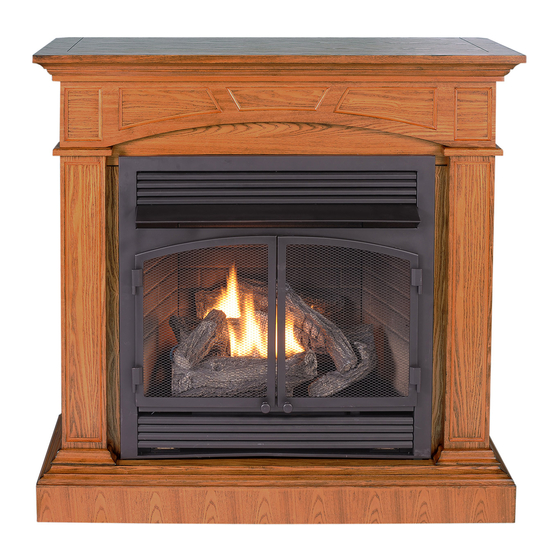

VENT-FREE GAS FIREPLACE
MODEL #FBD400T-C/O/CG
FBD400RT-O/CG/C
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
– Do not store or use gasoline or other flammable vapors and liquids in vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
· Do not try to light any appliance.
· Do not touch any electrical switch; do not use any phone in your building.
· Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
· If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and ventilation air must be provided.
Refer to Air for Combustion and Ventilation section on page 7 of this manual.
INSTALLER: DO NOT DISCARD THIS MANUAL – LEAVE FOR HOMEOWNER'S
FUTURE REFERENCE.
This appliance may be installed in an aftermarket, permanently located manufactured
(mobile) home, where not prohibited by local codes. This appliance is for use with the
type of gas indicated on the rating plate only. This appliance is not convertible for use
with other gases.
Questions about installation, operation, or troubleshooting? Before returning to your retailer, contact our
customer service department at 1-877-886-5989, 8:00 a.m. - 4:30p.m., EST, Monday-Friday or e-mail
customerservice@usaprocom.com.
CAUTION – FOR YOUR SAFETY
WARNING: This appliance is equipped
for (Natural and Propane) gas. Field
conversion is not permitted other than
between natural or propane gases.
PC-
FBD400T-1003
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Procom FBD400T-C
Summary of Contents for Procom FBD400T-C
- Page 1 (Natural and Propane) gas. Field conversion is not permitted other than between natural or propane gases. VENT-FREE GAS FIREPLACE MODEL #FBD400T-C/O/CG FBD400RT-O/CG/C CAUTION – FOR YOUR SAFETY WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE.
- Page 2 TABLE OF CONTENTS Important Safety Information ............................3 Air For Combustion and Ventilation..........................7 Installation ..................................10 Operation..................................17 Care & Maintenance..............................24 Troubleshooting................................25 Replacement Parts................................28 WARNING: READ THE INSTALLATION & OPERATION INSTRUCTIONS BEFORE USING THIS APPLIANCE. IMPORTANT: Read instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty.
- Page 3 IMPORTANT SAFETY INFORMATION IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning. Only a qualified installer, service agent, or local gas supplier may install and service this product.
- Page 4 Always run heater with control knob at PILOT/IGN, LOW or HIGH locked positions. Never set control knob between locked positions. Poor combustion and higher levels of carbon monoxide may result. Do not use heater if any part has been under water. Immediately call a qualified service technician to inspect the room heater and to replace any part of the control system and any gas control which has been under water.
- Page 5 PRODUCT FEATURES SAFETY PILOT This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. ODS/pilot shuts off the heater if there is not enough fresh air. PIEZO IGNITION SYSTEM Heater is equipped with an electronic piezo control system. This system requires AAA batteries (provided). THERMOSTAT HEAT CONTROL The control automatically cycles the burner on and off to maintain a desired room temperature.
- Page 6 UNPACKING 1. Remove top inner pack 2. Tilt carton so that heater is upright. 3. Remove protective side packaging. 4. Slide heater out of carton. 5. Remove protective plastic wrap. 6. Hold the screen lift and pull forward. 7. Remove log set by cutting plastic. 8.
- Page 7 AIR FOR COMBUSTION AND VENTILATION WARNING: This heater should not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home. PRODUCING ADEQUATE VENTILATION The following are excerpts from National Fuel Gas Code, NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion and Ventilation.
- Page 8 DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION Determining if You Have a Confined or Unconfined Space Use this worksheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install heater plus any adjoining rooms with door less passageways or ventilation grills between the rooms.
- Page 9 Ventilation Air from Inside Building Figure 2 - Ventilation Air from Inside Building This fresh air would come from adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12 inches of the wall connecting the two spaces ( see options 1 and 2, Figure 2 ).
- Page 10 INSTALLATION NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater.
- Page 11 CONNECTING TO GAS SUPPLY WARNING: A qualified technician must connect heater to gas supply. Follow all local codes. WARNING: This appliance requires a 3/8 in. NPT inlet connection to pressure regulator (see Figure 5). CAUTION: Never connect heater directly to the gas supply. This heater requires an external regulator (not supplied). The external regulator between the gas supply and heater must be installed.
- Page 12 CAUTION: Use only new black iron or steel pipe. Internally tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of ½ inch diameter or greater to allow proper volume gas to heater. If pipe is too small, loss of pressure will occur.
- Page 13 For changing from natural gas supply to propane supply 1. Remove bottom screw from cover plate, see figure 8, and rotate to expose gas selection valve. 2. For PROPANE GAS, press in knob using a flat screw driver with a blade the width of a quarter and turn knob counterclockwise until the knob locks into the LP position (see Figure 10).
- Page 14 CHECKING GAS CONNECTIONS WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks immediately. WARNING: Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. Bubbles forming show a leak.
- Page 15 INSTALLING LOGS Figure 13-Installing Log Set WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts may result in property damage or personal injury. CAUTION: After installation periodically thereafter, check to ensure that no flame comes in contact with any log.
- Page 16 Installation for Remote Receiver: The remote receiver operates on four AA-size batteries. It is recommended that ALKALINE batteries be used for longer battery life and maximum microprocessor performance. IMPORTANT: New or fully charged batteries are essential for proper operation of the remote receiver as the solenoid power consumption is higher than standard remote control systems.
- Page 17 OPERATION FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. NOTICE: During initial operation of new heater, burning logs will give off a paper burning smell. Orange flame will also be present.
- Page 18 LIGHTING INSTRUCTIONS For FBD400T-C/O/CG Unscrew ignitor cap and install a AAA battery with the + pointing out. Replace cap. STOP! Read the safety information on page 17. Warning: You must operate this heater with the screen in place. Make sure screen is installed before running heater.
- Page 19 TO TURN OFF GAS TO APPLIANCE Shut off heater Turn Control Knob clockwise to the OFF position. Do not force. MANUAL LIGHTING PROCEDURE (Match light) 1. Open screen. 2. Follow steps 1 through 5 under Lighting Instructions. 3. With Control Knob in PILOT position, strike match, and hold near pilot. Press in Control Knob; pilot should light. 4.
- Page 20 LIGHTING INSTRUCTIONS FOR FBD400RT-O/CG 1. STOP! Read the safety information on other sides of this plate and on the front and back of Warnings plate. 2. Make sure manual shutoff valve is fully open, installed two AAA batteries in the transmitter. 3.
- Page 21 REMOTE CONTROL FOR FBD400RT-O/CG MATCHING SECURITY CODES When matching security codes, be sure slide button on the receiver is in the REMOTE position. To program the remote receiver to LEARN a new security code, press and release the LEARN button on the top of the remote receiver, and then press ON or OFF button on the transmitter.
- Page 22 OFF OPERATION Figure 23 Figure 24 Press the OFF key and the appliance flame will shut off. During this time the LCD screen will show OF (figure 23). After 3 seconds the LCD screen will default to display room temperature and the wood TEMP will show (figure 24). THERMOSTAT FUNCTION Figure 25 SETTING DESIRED ROOM TEMPERATURE...
- Page 23 INSPECTING BURNERS Check pilot flame pattern and burner flame patterns often. PILOT FLAME PATTERN 1. Turn control knob to pilot position 2. Inspect pilot flame and refer to Figure 27 and 28. · Figure 27shows a correct pilot flame pattern. ·...
- Page 24 CARE AND MAINTENANCE WARNING: Failure to keep primary air openings of burners clean may result in sooting and property damage. CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service person. Heater may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc.
- Page 25 TROUBLESHOOTING WARNING: If you smell gas · Shut off gas supply. · Do not try to light any appliance. · Do not touch any electrical switch; do not use any phone in your building. · Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. ·...
- Page 26 OBSERVED PROBLEM PROBABLE CAUSE REMEDY Control knob is not fully pressed Press in control knob fully. ODS/pilot lights but flame goes out when control knob Control knob is not pressed in long After ODS/pilot lights, keep control is released. enough. knob pressed in 30 seconds.
- Page 27 OBSERVED PROBLEM PROBABLE CAUSE REMEDY Slight smoke or odor during 1. Residues from manufacturing 1. Problem will stop after a few hours of initial operation process. operation. Heater produces a whistling 1. Turning control knob to high (5) 1. Turn control knob to low (1) position noise when burner is lit.
- Page 28 REPLACEMENT PARTS NOTE: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty. PARTS UNDER WARRANTY Contact authorized dealers of this product. If they can’t supply original replacement parts, call Customer Service toll free at (1-877-886-5989) for referral information. When calling Customer Service or your dealer, have ready: ·...
- Page 29 PARTS LIST (FBD400RT-O/CG) This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 28 of this manual. Key No. Part Number Description AF-1110 Valve RV83FI-4/9 Regulator FBD400T600 Burner Assembly NDD0308 - 400 FBD400T850 ODS Outlet Tube...
- Page 30 PARTS LIST (FBD400T-C/O/CG) This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 28 of this manual. Key No. Part Number Description SIT545-200 T-Stat Valve RV83FI-4/9 Regulator FBD400T600 Burner Assembly...
- Page 31 PARTS LIST This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 28 of this manual. Key No. Part Number Description FBD400T-C/O/CG FBD400RT-O/CG FB-01AM Top Panel FB-04AM Side Panel...
