Procom FBD28TCC-M-HC User Manual page 7

FOR CORNER APPLICATION

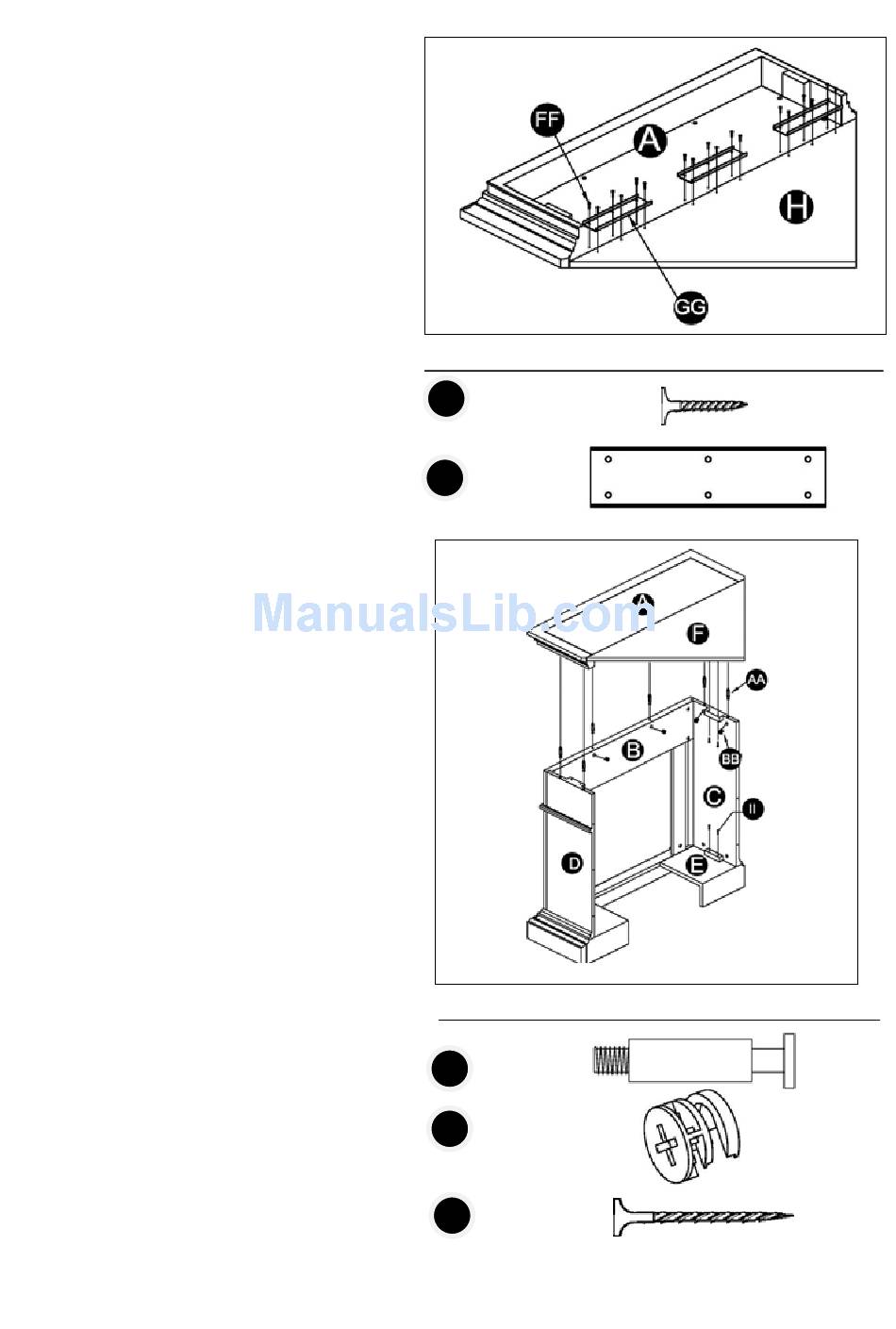

5. Turn the fireplace Top (A) Panel over. Using the
Connector Brackets (GG) that supplied, connect
the Fireplace Top (A) to the Top Triangle Panel
(H) with ST4 Screw 5/8 in. (FF) as shown in Fig 5.
6. Insert Cam Locks (BB) into assembled frame (B,
C, D).Screw in Cam Dowels (AA) into the Top (A).
Attach Top (A) into assembled frame (B, C, D, E) by
tightening the Cam Locks (BB) as shown in Fig 6.
Fasten the batten with ST4Screw 1-9/16 in. (II) to
the Top (A) and the Base (E) as shown in Fig 6.
Hardware Used
ST4 Screw
FF
5/8 in.
Connector
GG
Bracket
Hardware Used
AA Cam Dowel
BB Cam Lock
ST4 Screw
II
1 -9/16 in.
7
Fig 5
Fig 6
×18
×3
×6
×6
×4
