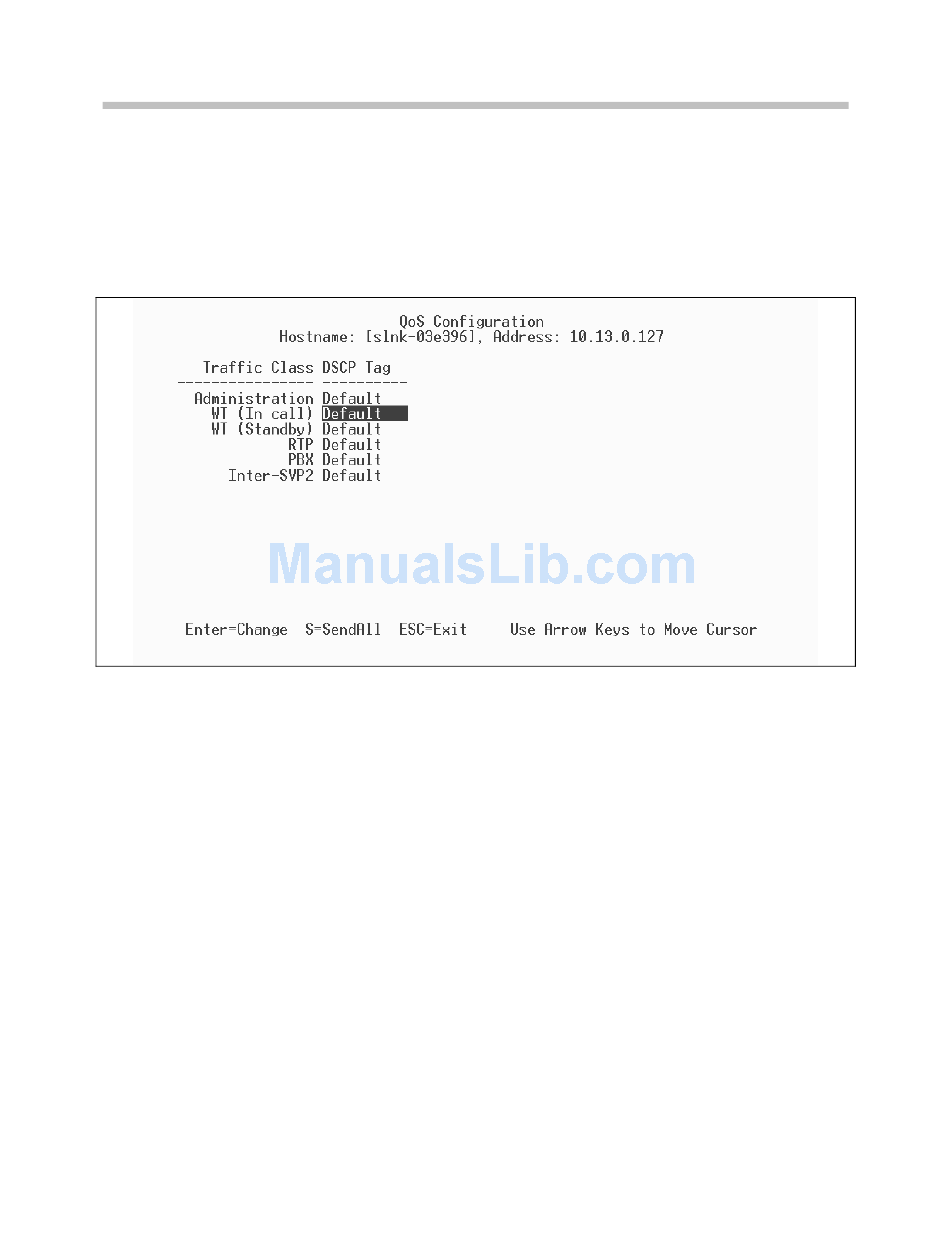

QoS Configuration

PN: 1725-36033-001_E.doc

VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
DSCP tags set packet priorities for QoS.
DSCP Tag
DSCP (Differentiated Services Code Point) is a QoS mechanism for
setting relative priorities. Packets are tagged with a DSCP field in the
IP header for type of service. The decimal value may be set as a
number from 0-63 and may be different for each traffic class listed on
the screen.
• tags set the priority for telnet, TFTP, and other
Administration
administrative traffic. Administrative traffic can have the lowest
priority because it does not require voice quality.
traffic requires voice quality and may be set to a higher
•
WT (In call)
priority than (
WT Standby
• traffic is the audio traffic to the IP PBX. It requires voice
RTP
quality.
• traffic is not audio to the PBX.
PBX
• traffic is the information-passing protocol that SVP
Inter-SVP2
Servers use to communicate with each other.
Configuring the SpectraLink 8000 SVP Server
) traffic.
33
