- Page 1 Multi-format to HDMI/VGA Scaler ID # 15202 Operation Manual...

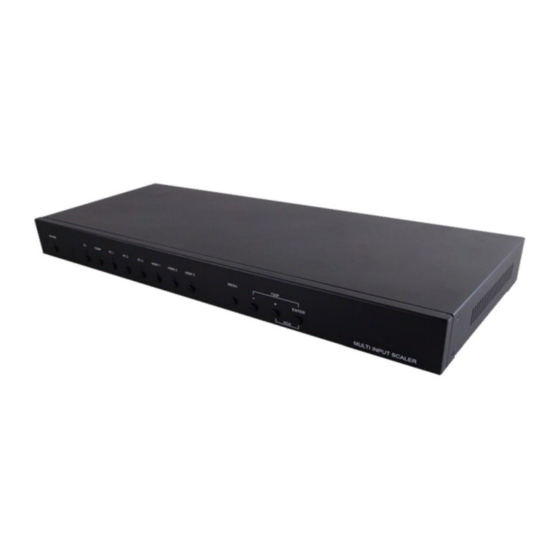

- Page 2 Introduction This Multi Input Scaler has Composite Video, Component Video, PC (VGA), and HDMI inputs and can switch and scale the signal to HDMI or VGA with audio outputs. It supports HDMI output resolutions up to 1080p/WUXGA and Analog Digital Conversion (ADC) and Digital Analog Conversion (DAC) allowing a wide range of AV signals to be displayed on a HDMI or VGA display.
- Page 3 Operation Controls and Functions The following sections describe the hardware components of the unit. Front Panel POWER Button and LED: Press this button to switch the device on or to set it to standby mode. Once the device is connected to an active power supply the LED will illuminate and the device will switch on automatically.
- Page 4 SERVICE: Reserved for manufacturer use only RS-232: Connect to a PC/Laptop or RS-232 control system to use RS-232 RS-232 and Telnet Commands commands to control the device (See Section for details on RS-232 commands) OUTPUT 1) HDMI 1/2:Connect to an HDMI display or AV Receiver for video and/or audio output 2) PC/HD: Connect to a monitor/display for video output.
-
Page 5: Auto Adjust
Remote Control POWER: Press this button to switch the device on or to set it to standby mode. HDMI1/2/3, PC1/2/3, CV and COMP: Direct source selection keys. Press one of these keys to switch to the required source. MENU: Press this button to enter the OSD menu. - Page 6 RS-232 and Telnet Commands Command Description S POWER 0/1 0=OFF 1=ON R POWER Reports the numeric equivalent for POWER setting (as above) S SOURCE 1~8 1=HDMI 1 5=VIDEO 2=HDMI 2 6=PC 1 3=HDMI 3 7=PC 2 4=YPbPr 8=PC 3 R SOURCE Reports the numerical equivalent for SOURCE setting (as above) S OUTPUT 0~21...
- Page 7 S HUE 0~60 Sets the numerical equivalent for the HUE setting (0~60) R HUE Reports the numerical equivalent for the HUE setting S SATURATION 0~60 Sets the numerical equivalent for the SATURATION setting (0~60) R SATURATION Reports the numerical equivalent for the SATURATION setting S SHARPNESS 0~30 Sets the numerical equivalent for the...
- Page 8 2=HDMI 2 7=PC 2 3=HDMI 3 8=PC 3 4=YPbPr Checks the FIRMWARE version and SOURCE information: 0.00~x.xx SOURCE: HDMI ~ PC3 PORT ON: LAST ~ PC3 VOL + Raises the volume level (VOLUME * IS SET) VOL - Lowers the volume level (VOLUME * IS SET) QUIT EXIT (Telnet only) Note:...
- Page 9 720×576P 50 1280×720P 50 1920×1080I 50 1920×1080P 50 Main Menu Sub Menu Menu Menu DISPLAY SIZE OVER SCAN FULL* FOLLOW INPUT PAN SCAN LETTER BOX UNDER 2 UNDER 1 MODE INFO INFO* INPUT HDCP (HDMI mode only) AUTO SETUP (PC mode only) H_POSITION V_POSITION PHASE...
- Page 10 (512) B 0~1023 (512) R OFFSET 0~1023 (512) G OFFSET 0~1023 (512) B OFFSET 0~1023 (512) 0~60 (30) SATURATION 0~60 (30) SHARPNESS 0~30 (0) OFF* MIDDLE HIGH AUDIO VOLUME 0~100 (100) DELAY OFF* 40ms 110ms 150ms SOUND MUTE SOURCE AUTO* (HDMI mode only) * EXT.
-
Page 11: Subnet Mask
SUBNET 0.0.0.0.~ 255.255.255.255* MASK DEF.GETWA 0.0.0.0.~ 255.255.255.255* FREE RUN BLACK COLOR BLUE* INFORMATIO INPUT OUTPUT REVISION IP ADDRESS Note: 1.When the AUDIO SOURCE setting is set to 'AUTO', the device will send the audio signal according to the input source. If the input signal is HDMI, the device will use the HDMI audio signal and if input is DVI, the device will use the external L/R audio. - Page 12 Telnet Control Before attempting to use the Telnet control, ensure that both the Scaler (via the LAN port) and the PC/Laptop or control system being used are connected to the same active network. To access the Telnet control in Windows 7, click on the "Start" menu and type "cmd"...
- Page 13 Note: All command will not be executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also needs to be change accordingly.
- Page 14 Web GUI Control On a PC/Laptop that is connected to same active network as the Scaler, open a web browser and type device's IP address on the web address entry bar. The browser will bring up the control page of the Scaler. Note: The IP address can be obtained from the OSD menu under Information.
- Page 15 Output Resolution Support Resolution Output PC/HD HDMI 480p/576p ٧ 720p@50/60Hz ٧ 1080i@50/60Hz ٧ 1080p@50/60Hz ٧ VGA@60Hz ٧ ٧ SVGA@60Hz ٧ ٧ XGA@60Hz ٧ ٧ SXGA@60Hz ٧ ٧ UXGA@60Hz ٧ ٧ 1280×768@60Hz ٧ ٧ 1280×800@60Hz ٧ ٧ 1360×768@60Hz ٧ ٧ 1400×1050@60Hz ٧...
- Page 16 Connection Diagram...
