- Page 1 HDMI HD 4K2K Scaler # 15240 Operation Manual...
-
Page 2: Operation Controls And Functions

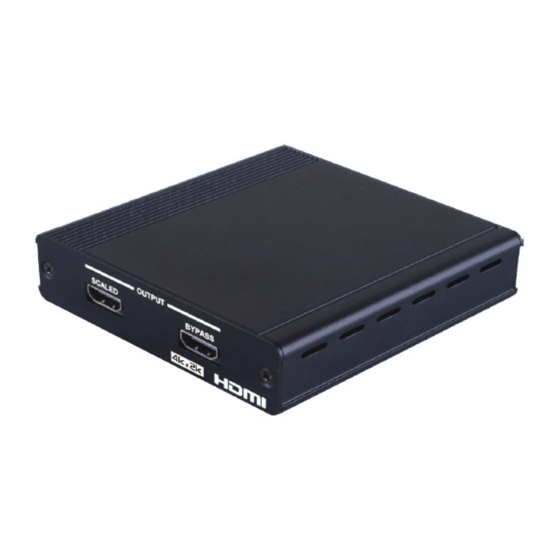

Introduction The HDMI 4K2K Scaler is designed to upscale 1080p@24 signal into 4K2K or downscale 4K2K signal into 1080p@24. With friendly and simple design which allows user with direct viewing on input resolution and switching output signal format up to 2 simultaneous HDMI. The HDMI 4K2K Scaler is your best media between HD and Ultra HD signal. - Page 3 Source Switch Scaled Bypass 1080P24 4K2K 1080P24 Down 1080P24 1080P24 4K2K 4K2K 4K2K Down 1080P24 4K2K 4 SERVICE: This slot is reserved for factory use only. 5 DC 5V IN: Connect 5V DC power supply into the unit and connect the adaptor to an AC outlet.
- Page 4 Connections...
- Page 5 Specifications Video Frequency 300MHz/9Gbps Input Port 1 x HDMI Output Ports 2 x HDMI 4K2K HDMI Cable Distance In 5M, Out 10M Power Supply 5V / 2.6A DC (US/EU standards, CE/ FCC/UL certified) ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) Dimensions (mm) 102(W) x 102(D) x 25 (H)
