- Page 1 HDMI 6G Audio Bridge with Pattern Generator - # 15421 Operation Manual...
- Page 2 Introduction The 4K2K HDMI 6G Pattern Generator with Audio Bridge is an advanced and convenient tool for generating HDMI 6G signals for testing HDMI devices. With 6 built-in settings covering Ultra HD and Full HD resolutions, 4 test patterns, HDCP (1.4, 2.2 and non-HDCP) and 2 audio types each providing a large array of test patterns, and incorporates both digital and analog audio inputs for embedding into an HDMI output.
-
Page 3: Operation Controls And Functions

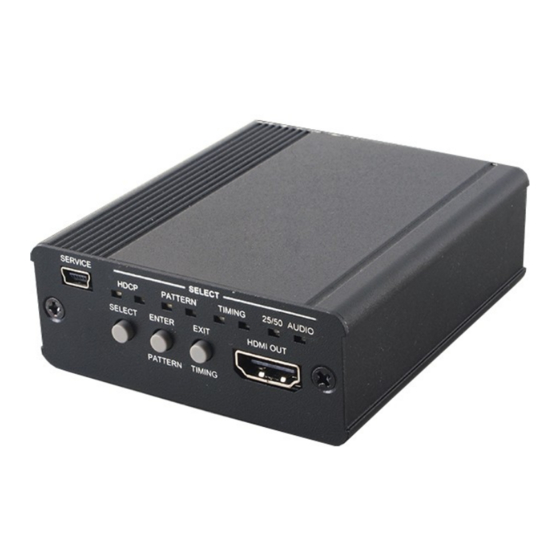

Operation Controls and Front Panel Functions 1. AUDIO IN L/R: Connect from audio source equipment with L/R cables. AUDIO IN OPTICAL: Connect from audio source equipment with optical cable. POWER: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. - Page 4 SELECT LED: These LEDs will illuminate according to the selection. Each selection with 2 LEDs of 3 colors, left LED is blue and right LED are red or green. Each LED color represent a pattern/timing as below: SELECT Button: Press this button to enter into selection mode and both LEDs will be flashing in blue and green.
-
Page 5: Supported Resolutions
Specifications Video Bandwidth 600MHz/18Gbps Input Port 1 x L/R (RCA) 1 x Optical 1 x USB(Service) Output Ports 1 x HDMI Supported Resolutions 720p@50/60, 1080p@50/60, 4K2K@25/30/50/60 HDMI Cable Length 5M/4K2K@25/30/50/60 5M/1080p@50/60 Support Digital Audio 48kHz Output Sampling Rate Support Analog Audio 2Vrms Power Supply 5V/2.6A DC (US/EU standards,...
