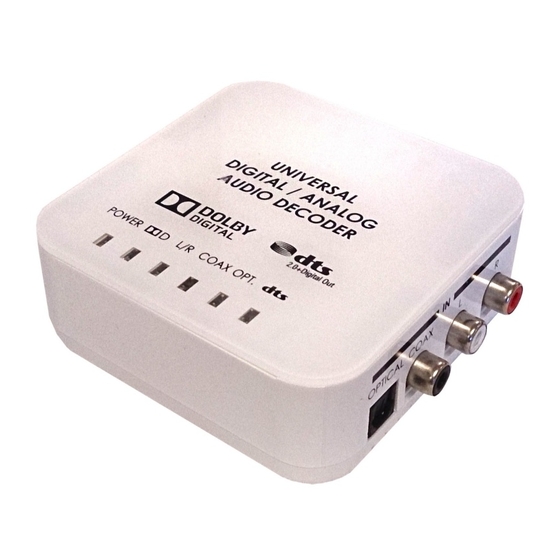

- Page 1 Universal Digital/Analog Audio Converter - # 15403 with Dolby and DTS Decoder Operation Manual...
- Page 2 Introduction The Universal Digital/Analog Audio Converter with Dolby Digital and DTS 2.0+Digital Out Decoder can convert among Optical, Coaxial and analog audio signals. With the ability to convert digital signals into analog and analog signals into digital, this device supports the simultaneous conversion of audio formats so when converting Optical into analog audio you can also convert it into Coaxial.
-
Page 3: Power Led
Operation Front Panel Controls and Functions POWER LED: The LED will illuminate green when connected to power and in red when switched off. When connected to an AC wall outlet the unit will automatically turn on Dolby Digital LED: When the source is Dolby Digital formatted the LED will illuminate in red and will remain off if not. -
Page 4: Optical Out
Left Panel L/R OUT: Connect to the analog (L/R) audio input of the audio system such as a TV or amplifier with a stereo RCA cable. COAX OUT: Connect to the audio system's coaxial input. OPTICAL OUT: Connect to the audio system's optical input. Rear Panel DC 5V: Connect the 5V/1A DC power supply to the unit and plug the adaptor to an... - Page 5 Specifications Input Ports 1×Optical, 1×Coaxial, 1×Analog Stereo (L/R) Input Format LPCM 2CH & Dolby Digital/DTS 2.0+Digital from Optical or Coaxial Sample Rates 32-96KHz Output Ports 1×Coaxial, 1×Optical, 1×Analog Stereo (L/R) L/R Input Impedance 47KΩ L/R Output Impedance 600Ω ESD Protection Human body model: ±10kV (air-gap discharge) ±6kV (contact discharge)
- Page 6 Connection Diagram...
