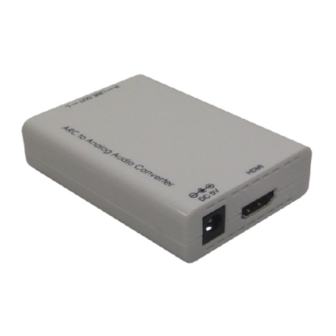

- Page 1 HDMI ARC to Analog Audio Converter - # 15209 Operation Manual...
- Page 2 Introduction The ARC to Analog Audio Converter is designed to get HDMI audio signal from the TV’s ARC (Audio Return Channel) output and send out to active speakers or amplifier. Allowing immediate enjoyment over HDMI audio without delay and obstruct. Supporting HDMI sampling rate up to 192kHz and output analog 2CH audio Features •...
- Page 3 Operation Controls And Functions Front Panel DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. HDMI: Connect from TV’s ARC connector with Audio signal activated. Power LED: This LED will illuminate when the device is connected with power supply. Rear Panel Line OUT: Connect the R/L OUT to amplifier, active speakers.
- Page 4 Connection...
- Page 5 Specifications HDMI ARC port 1 x HDMI Output Port 1 x L/R (Analog Stereo 2RCA) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5V DC/ 2.6A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 55(W) x 82(D) x 22.5(H) Weight(g) Chassis Material Plastic...
