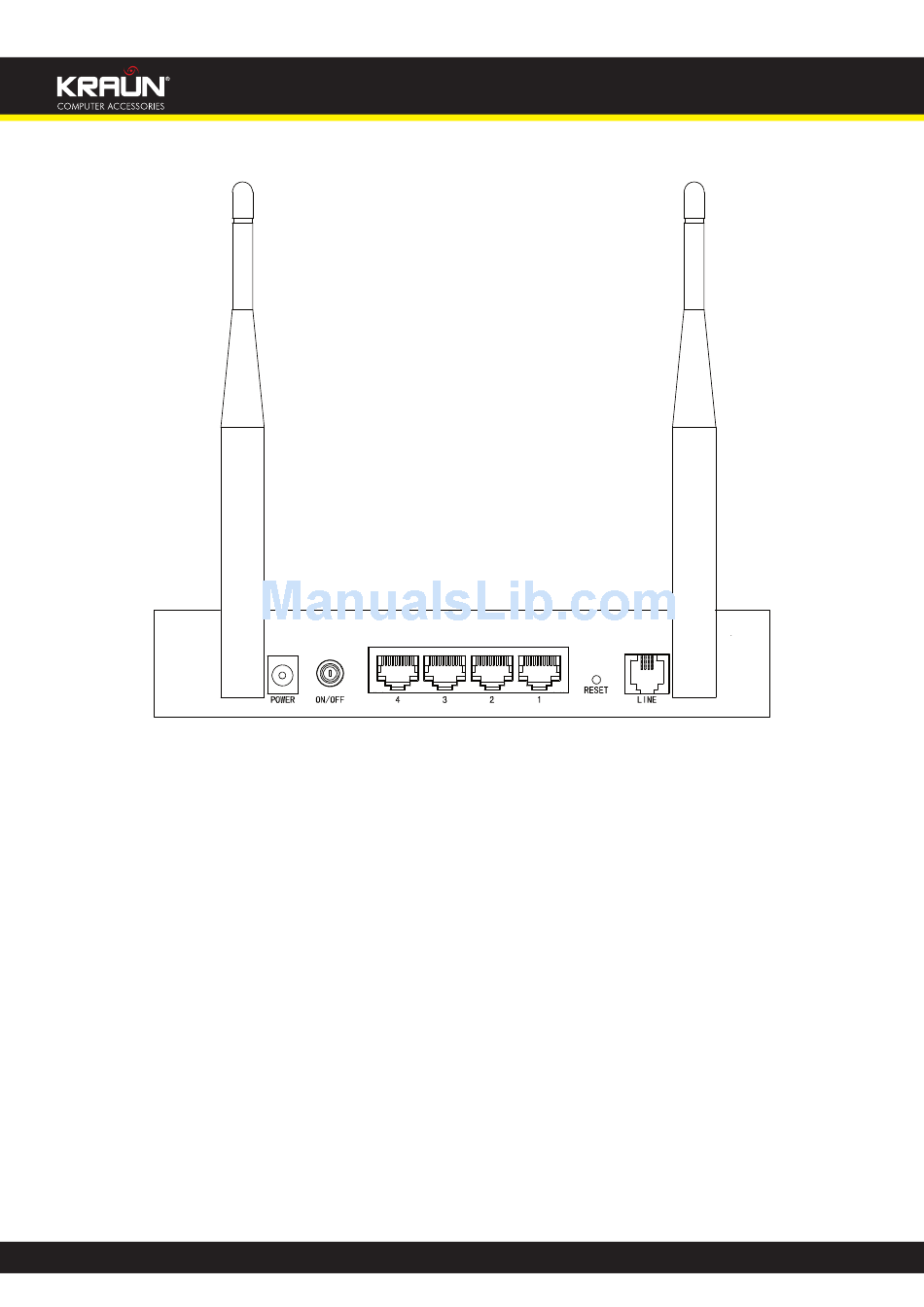

2.2 The Back Panel

y POWER: The Power plug is where you will connect the power adapter.
y ON/OFF: The power for the Router.
y 1, 2, 3, 4 (LAN): Through the port, you can connect the Router to your PC or the other Ethernet network
devices.
y RESET: There are two ways to reset the Router's factory defaults.
y Method one: With the Router powered on, use a pin to press and hold the Reset button for at least 5 seconds.
And the Router will reboot to its factory default settings.
y Method two: Restore the default setting from "Maintenance-SysRestart" of the Router's Web-based Utility.
y LINE: Through the port, you can connect the router with the telephone. Or you can connect them by an
external separate splitter. For details, please refer to 2.4.
y Antenna: Used for wireless operation and data transmit.

2.3 Installation Environment

y The Product should not be located where it will be exposed to moisture or excessive heat.
y Place the Router in a location where it can be connected to the various devices as well as to a power source.
y Make sure the cables and power cord are safely placed out of the way so they do not create a tripping hazard.
y The Router can be placed on a shelf or desktop.
y Keep away from the strong electromagnetic radiation and the device of electromagnetic sensitive.
Figure 2-2
