Kraun 150Mbps ADSL2/2+ User Manual

150mbps adsl2/2+
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

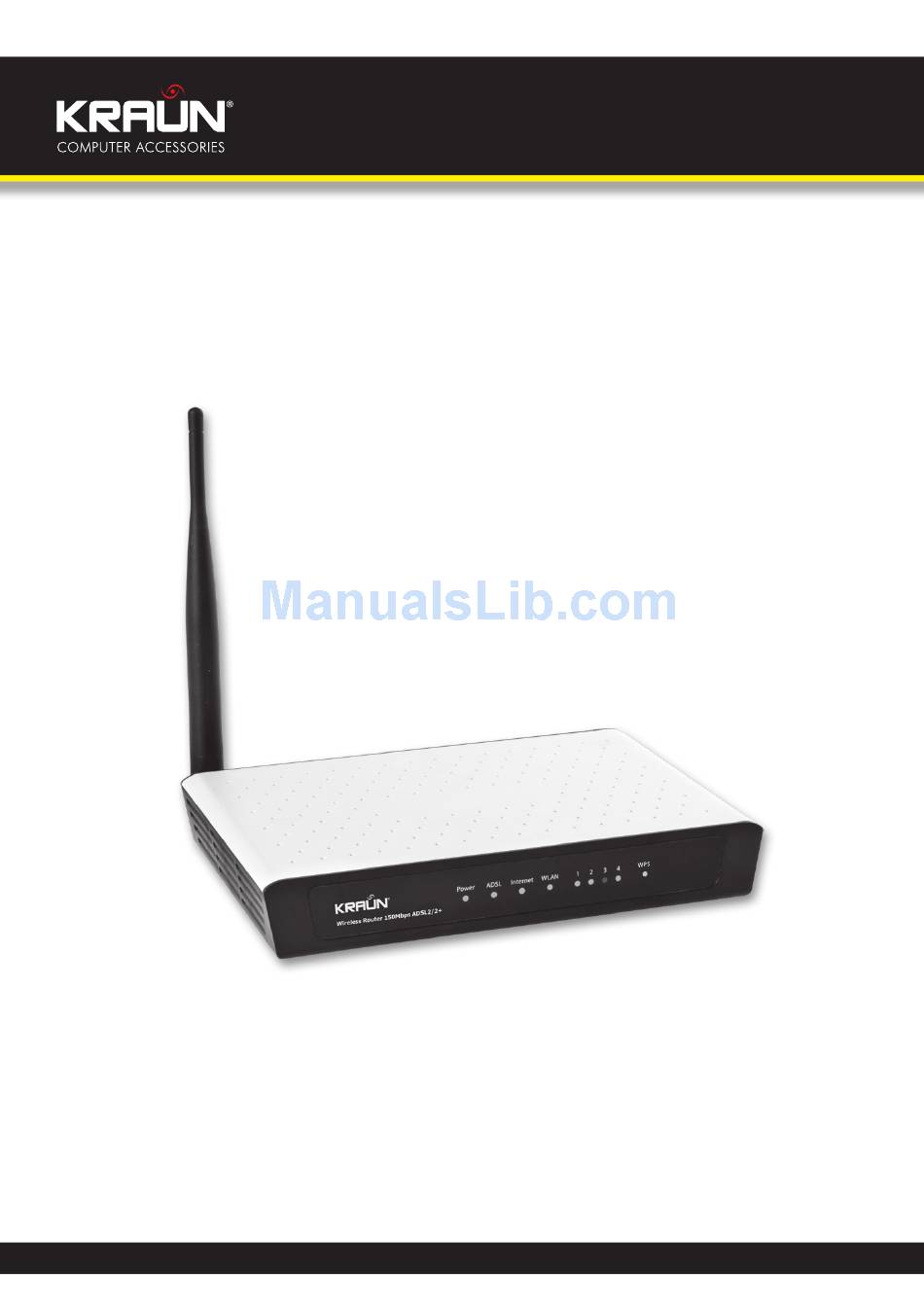

Manual

Wireless Router

150Mbps ADSL2/2+
User's Manual
Cod. KR.KQ
Warning
The manufacturer is under no circumstances liable for any unauthorised modifications made to
the product by the user or any other parties which may compromise its conformity and safety.
www.kraun.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 150Mbps ADSL2/2+ and is the answer not in the manual?

Questions and answers

Related Manuals for Kraun 150Mbps ADSL2/2+

Summary of Contents for Kraun 150Mbps ADSL2/2+

  • Page 1: Wireless Router

    Manual Wireless Router 150Mbps ADSL2/2+ User’s Manual Cod. KR.KQ Warning The manufacturer is under no circumstances liable for any unauthorised modifications made to the product by the user or any other parties which may compromise its conformity and safety. www.kraun.it...

  • Page 2: Table Of Contents

    Advanced Setup .................. 36 4.4.1 Firewall ....................... 36 4.4.2 Routing ....................... 36 4.4.3 NAT ......................37 4.4.4 QoS ......................41 4.4.5 VLAN ......................43 4.4.6 ADSL ......................45 Access Management ................46 4.5.1 ACL ......................46 4.5.2 Filter ......................47 www.kraun.it...
  • Page 3 4.5.4 DDNS ......................55 4.5.5 CWMP ......................56 Maintenance..................57 4.6.1 Administration .................... 57 4.6.2 Time Zone ....................58 4.6.3 Firmware ....................59 4.6.4 System Restart ..................61 4.6.5 Diagnostic ....................61 Help ..................... 62 Appendix A: Specification ..................64 www.kraun.it...

  • Page 4: Package Contents

     One ADSL splitter  One Resource CD, which includes this User Guide   Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact your distributor. www.kraun.it...

  • Page 5: Chapter 1 Introduction

     Multi-user sharing a high-speed Internet connection.  Downstream data rates up to 24Mbps, upstream data rates up to 3.5Mbps （ With Annex M enabled） .  Supports long transfers, the max line length can reach to 6.5Km.  www.kraun.it...

  • Page 6: Conventions

    1.3 Conventions The Router or device mentioned in this User guide stands for WIRELESS ROUTER 150MBPS ADSL2/2+ without any explanations. Parameters provided in the pictures are just references for setting up the product, which may differ from the actual situation. www.kraun.it...

  • Page 7: Chapter 2 Hardware Installation

    A wireless device is connecting to the network by WPS function. This Slow Flash process will last in the first 2 minutes. A wireless device has been successfully added to the network by WPS function. A wireless device failed to be added to the network by WPS function. Quick Flash www.kraun.it...

  • Page 8: The Back Panel

    Place the Router in a location where it can be connected to the various devices as well as to  a power source. Make sure the cables and power cord are safely placed out of the way so they do not create a  tripping hazard. www.kraun.it...

  • Page 9: Connecting The Router

    Step 3: Power on the computers and LAN devices. Step 4: Attach the power adapter. Connect the power adapter to the power connector on the rear of the device and plug in the adapter to a wall outlet or power extension. www.kraun.it...
  • Page 10 WIRELESS Manual ROUTER 150MBPS WIRELESS ROUTER 150MBPS ADSL2/2+ User ADSL2/2+ Guide Figure 2-3 www.kraun.it...

  • Page 11: Chapter 3 Quick Installation Guide

    Step 1: Click the Start menu on your desktop, right click My Network Places, and then select Properties Step 2: Right click Local Area Connection (LAN), and then select Properties. Figure 3-2 Step 3: Select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties button. www.kraun.it...
  • Page 12 WIRELESS Manual ROUTER 150MBPS WIRELESS ROUTER 150MBPS ADSL2/2+ User ADSL2/2+ Guide Figure 3-3 Step 4: Configure the IP address as Figure 3-4 shows. After that, click OK. www.kraun.it...
  • Page 13 If the result displayed is similar to the screen below, the connection between your PC and the Router has been established. WIRELESS ROUTER 150MBPS WIRELESS ROUTER 150MBPS ADSL2/2+ User ADSL2/2+ Guide Figure 3-5 If the result displayed is similar to the screen shown below, it means that your PC has not www.kraun.it connected to the Router.

  • Page 14: Login

    Password admin, and then click OK to access to the Quick Setup screen. You can follow the steps below to complete the Quick Setup. Step 1: Select the Quick Start tab, then click RUN WIZARD, and you will see the next screen. Click the NEXT button. www.kraun.it...
  • Page 15 Step 3: Select the connection type to connect to the ISP (We select PPPoE/PPPoA mode for example here), and then click the NEXT button. Figure 3-10 Step 4: Configure the following options provided by your ISP: Username, Password, VPI, VCI and Connection Type. Then click NEXT. www.kraun.it...
  • Page 16 To adopt the wireless security protection measures, please refer to section 4.3.3. Step 6: Click NEXT to finish the Quick Start. WIRELESS ROUTER 150MBPS WIRELESS ROUTER 150MBPS ADSL2/2+ User ADSL2/2+ Guide Figure 3-13 www.kraun.it...
  • Page 17 Manual www.kraun.it...

  • Page 18: Chapter 4 Software Configuration

    4.1.1 Device Info Choose “Status→Device Info” menu, and you will be able to view the device information, including LAN, WAN and ADSL. The information will vary depending on the settings of the Router configured on the Interface Setup screen. www.kraun.it...

  • Page 19: System Log

    Click the other submenus System Log or Statistics in Figure 4-2, and you will be able to view the system log and traffic statistics about the Router. 4.1.2 System Log Choose “Status→System Log” menu, and you will be able to query the logs of the Router. www.kraun.it...

  • Page 20: Statistics

    Click the CLEAR LOG button to clear the logs. Click the SAVE LOG button to save the logs. 4.1.3 Statistics Choose “Status→Statistics” menu, and you will be able to view the network traffic over Ethernet, ADSL and WLAN. Figure 4-4 www.kraun.it...
  • Page 21 Select ADSL, and you will see the statistics table as below.  Statistics Table: Transmit total PDUs The total PDUs transmitted over the ADSL port. Transmit The total errors occurred over the ADSL port when data Statistics Transmit total Error Counts is being transmitted. www.kraun.it...

  • Page 22: Quick Start

    4.2 Quick Start Please refer to " 3.2: Login". 4.3 Interface Setup Choose “Interface Setup”, you can see the next submenus: Internet and LAN. Figure 4-5 Click any of them, and you will be able to configure the corresponding function. www.kraun.it...

  • Page 23: Internet

    Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP. You need to activate the VC to take effect. For PVCs management, you can use ATM QoS to www.kraun.it...
  • Page 24 Select this option if your ISP provides you an IP address automatically. This option is typically used for Cable services. Please enter the Dynamic IP information accordingly. Figure 4-7 Encapsulation: Select the encapsulation mode for the Dynamic IP Address, you can leave it  www.kraun.it...
  • Page 25 ADSL ATU-R supports both IGMP version 1 (IGMP v1) and IGMP v2. Select “Disabled” to disable it. Static IP Address Select this option if your ISP provides static IP information to you. You should set static IP address, IP subnet mask, and gateway address in the screen below (shown in Figure 4-8). www.kraun.it...
  • Page 26 Select this option if your ISP requires you to use a PPPoE connection. This option is typically used for DSL services. Select Dynamic PPPoE to obtain an IP address automatically for your PPPoE connection. Select Static PPPoE to use a static IP address for your PPPoE connection. Please enter the information accordingly. www.kraun.it...
  • Page 27 Static/Dynamic IP Address: For PPPoE/PPPoA connection, you need to specify the public  IP address for this ADSL Router. The IP address can be either dynamically (via DHCP) or given IP address provided by your ISP. For Static IP, you need to specify the IP address, www.kraun.it...

  • Page 28: Lan

    After you finish the Internet configuration, please click SAVE to make the settings take effect. 4.3.2 LAN Choose “Interface Setup→LAN” menu, and you will see the LAN screen (shown in Figure 4-11). Please configure the parameters for LAN ports according to the descriptions below. www.kraun.it...
  • Page 29 Protocol) is a session-layer protocol used to establish membership in a multicast group. The ADSL ATU-R supports both IGMP version 1 (IGMP v1) and IGMP v2. Select “Disabled” to disable it. IGMP Snoop: Enable the IGMP Snoop function if you need.  www.kraun.it...
  • Page 30 DNS assignment from one of the PPPoA, PPPoE or MER/DHCP enabled PVC(s) during the connection establishment. If Use User Discovered DNS Server Only is selected in DNS Relay, it is necessary for you to enter the primary and optional secondary DNS server IP www.kraun.it...

  • Page 31: Wireless

    If you select Disabled, the DHCP function will not take effect. 4.3.3 Wireless Choose “Interface Setup→Wireless” menu, and you will see the Wireless screen (shown in Figure 4-14 ). Please configure the parameters for wireless according to the descriptions below. www.kraun.it...
  • Page 32 Channel: Select the channel you want to use from the drop-down List of Channel. This field determines which operating frequency will be used. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point. www.kraun.it...
  • Page 33 Broadcast SSID: When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the Router. To broadcast the Router’s SSID, keep the default setting. If you don’t want to broadcast the Router’s SSID, www.kraun.it...
  • Page 34 64-bit shared key algorithm, as described in the IEEE 802.11g standard. Figure 4-15 WEP-128Bits To configure WPA-64Bits settings, select the WPA-64Bits option from the drop-down list. The menu will change to offer the appropriate settings. 128-bit is stronger than 64-bit. www.kraun.it...
  • Page 35 Pre-Shared Key: Enter the key shared by the Router and your other network devices. It  must have 8-63 ASCII characters or 64 Hexadecimal digits. WPA2-PSK To configure WPA2-PSK settings, select the WPA2-PSK option from the drop-down list. The www.kraun.it...
  • Page 36 WPS Settings: These are the settings of the WPS.  If the wireless adapter supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN with the following two methods. Click PIN code, you will see the screen as shown below. www.kraun.it...
  • Page 37 Step 2: For the Router, keep PIN code selected and enter the PIN code of the wireless adapter in the field after enrollee PIN code as shown below. Then click Start WPS. Figure 4-21 Method Two: Enter the PIN from my Router www.kraun.it...
  • Page 38 Wireless MAC Address Filter: Wireless access can be filtered by using the MAC addresses  of the wireless devices transmitting within your network’s RADIUS.  Active: If you wish to filter users by MAC Address, select “Activated”, and “Deactived” for don’t. www.kraun.it...

  • Page 39: Advanced Setup

    Ping of Death, SYN Flood, Port Scan and Land Attack. SPI: If you enable SPI, all traffics initiated from WAN would be blocked, including DMZ,  Virtual Server, and ACL WAN side. 4.4.2 Routing Choose “Advanced Setup→Routing” menu, and you will see the routing information in the next www.kraun.it...

  • Page 40: Nat

    RIP broadcasts. If No, this route is kept private and is not included in RIP broadcasts. 4.4.3 NAT Choose “Advanced Setup→NAT” menu, you can setup the NAT (Network Address Translation) function for the Router (shown in Figure 4-26). www.kraun.it...
  • Page 41 Users of the public network outside the company can access to the DMZ host. Figure 4-27 DMZ Host IP Address: Enter the specified IP Address for DMZ host on the LAN side.  4.4.3.2 Virtual Server Choose “Advanced Setup→NAT→Virtual Server” in Figure 4-26, you can configure the Virtual www.kraun.it...
  • Page 42 Port number, IP Address and Protocol manually. Step 4: After that, click SAVE to make the entry take effect. Other operations for the entries as shown in Figure 4-28: Enter the index of assigned entry, and click the DELETE button to delete the entry. www.kraun.it...
  • Page 43 Step 2: Select the Rule index for the rule as shown in Figure 4-29. Step 3: Select the rule type you want from the drop-down list. Step 4: Enter the local and public IP addresses in the corresponding fields. Step 5: After that, click SAVE to make the entry take effect. www.kraun.it...

  • Page 44: Qos

    Web data packets. This option will provide better service of selected network traffic over various technologies. Figure 4-30 QoS: Select this option to Activate/Deactivate the IP QoS on different types (IP ToS and  www.kraun.it...
  • Page 45 Type of Service Remarking: Select the type to remark the service. DSCP Remarking: Enter the number to remark the DSCP priority.   802.1p Remarking: Select the type to remark the 802.1p priority.  Queue: Select the priority type for the action. www.kraun.it...

  • Page 46: Vlan

    Ethernet MAC address into an ATM address. Figure 4-31 Assign VLAN PVID for each Interface Click Assign VLAN PVID for each Interface in Figure 4-31, you can assign the PVID for each interface in the next screen (shown in Figure 4-32). www.kraun.it...
  • Page 47  untagged frames or priority tagged frames (frames with null (0) VID) received on this port. Define VLAN Group Click Define VLAN Group in Figure 4-31, you can define VLAN groups in the next screen (shown in Figure 4-33). www.kraun.it...

  • Page 48: Adsl

    Choose “Advanced Setup→ADSL”, you can select the ADSL Type and ADSL Mode in the next screen. The ADSL feature can be selected when you meet the physical connection problem. Please check the proper settings with your Internet service provider. www.kraun.it...

  • Page 49: Access Management

    Click any of them, and you will be able to configure the corresponding function. 4.5.1 ACL Choose “Access Management→ACL”, you can see the next screen (shown in Figure 4-36). You can specify the client to access the ADSL Router once setting his IP as a Secure IP Address through selected applications. www.kraun.it...

  • Page 50: Filter

    Select IP/Mac Filter as the Filter type, and select IP as the Rule type (shown in Figure 4-37), then you can configure the filter rules based on IP address. The filtering includes Outgoing and Incoming, the detailed descriptions are provided below. www.kraun.it...
  • Page 51 IPs (Source IP Address and Destination IP Address). If select LAN as an interface, the filter will match the IP traffic of LAN port with specified IPs. Direction: Select the direction for this IP Filter rule. There are three filtering directions: Both,  Incoming, Outgoing. www.kraun.it...
  • Page 52 Select the “IP” as the Rule Type on the Filter screen, then you can configure the specific rule for the example. Step 2: Select the IP/MAC Filter Set Index and IP/MAC Filter Rule Index for the rule, then select the Interface “PVC0”, and select the Direction “Both” for the first rule. www.kraun.it...
  • Page 53 IP / MAC Filter Set Index to view the information about the rule. Other operations for the entries as shown in Figure 4-37: Select the IP / MAC Filter Set Index and IP/MAC Filter Rule Index to view or modify the entry. www.kraun.it...
  • Page 54 For example: If you want to block the PCs with MAC addresses 00-0A-EB-00-07-BE and 00-0A-EB-00-07-5F to access the Internet, you can configure as follows. Presume the rules are both aimed at the interface PVC0, and their indexes are (1, 1) and (1, 2). www.kraun.it...
  • Page 55 Select the IP / MAC Filter Set Index and IP/MAC Filter Rule Index to locate the specific rule, and then click the DELETE button to delete the entry. 4.5.2.3 Application Filter Select Application Filter as the Filter type (shown in Figure 4-39), and then you can configure www.kraun.it...
  • Page 56 Allow, the Router will accept the application; if you select Deny, the Router will forbid the application. 4.5.2.4 URL Select Application Filter as the Filter type (shown in Figure 4-40), and then you can configure the filter rules based on URL. www.kraun.it...
  • Page 57 Other operations for the entries as shown in Figure 4-37: Select the URL Index to view or modify the entry. Select the URL Index to locate the specific rule, and then click the DELETE button to delete the entry. www.kraun.it...

  • Page 58: Upnp

    IP address. User should type the host name, user name and password assigned to your ADSL Router by your Dynamic DNS provider. User also can decide to turn on DYNDNS Wildcard or not. www.kraun.it...

  • Page 59: Cwmp

    Choose “Access Management→CWMP”, you can configure the CWMP function in the screen (shown in Figure 4-43). The router offers CWMP feature. The function supports TR-069 protocol which collects information, diagnoses the devices and configures the devices automatically via ACS (Auto-Configuration Server). www.kraun.it...

  • Page 60: Maintenance

    Choose “Maintenance”, you can see the next submenus: Figure 4-44 Click any of them, and you will be able to configure the corresponding function. 4.6.1 Administration Choose “Maintenance→Administration”, you can set new password for admin in the screen (shown in Figure 4-45). www.kraun.it...

  • Page 61: Time Zone

    If a NTP server is set, you will only need to set the time zone. If you manually set the time, you may also set Daylight Saving dates and the system time will automatically adjust on those dates. NTP Server automatically Select NTP Server automatically as the Synchronize time, you only need to set the time zone. Figure 4-46 www.kraun.it...

  • Page 62: Firmware

    (shown in Figure 4-49). Make sure the firmware or romfile you want to use is on the local hard drive of the computer. Click Browse to find the local hard drive and locate the firmware or romfile to be used for upgrade. www.kraun.it...
  • Page 63 The router will reboot after the upgrading has been finished. To back up the Router’s current settings: Step 1: Click the ROMFILE SAVE button (shown in Figure 4-49), click Save button in the next screen (shown inFigure 4-50) to proceed. Figure 4-50 www.kraun.it...

  • Page 64: System Restart

    (shown in Figure 4-52). Figure 4-52 4.6.5 Diagnostic Choose “Maintenance→Diagnostic”, you can view the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides in the screen (shown in Figure 4-53). www.kraun.it...

  • Page 65: Help

    WIRELESS Manual ROUTER 150MBPS WIRELESS ROUTER 150MBPS ADSL2/2+ User ADSL2/2+ Guide Figure 4-53 4.7 Help Choose “Help”, you can view the help information for configuration of any function. www.kraun.it...
  • Page 66 WIRELESS Manual ROUTER 150MBPS WIRELESS ROUTER 150MBPS ADSL2/2+ User ADSL2/2+ Guide Figure 4-53  Note: Click the tab, and you will be able to get the corresponding information. www.kraun.it...

  • Page 67: Appendix A: Specification

    Internet Explorer 5.0 or later, Netscape Navigator 6.0 or later System Requirement Windows 9x/ME/2000/XP/Vista/7 Physical and Environment Working Temperature 0℃ ~ 40℃ Working Humidity 10% ~ 90% RH (non-condensing) Storage Temperature -40℃ ~ 70℃ Storage Humidity 5% ~ 90% RH (non-condensing) www.kraun.it...
