Chapter 2. Hardware Installation

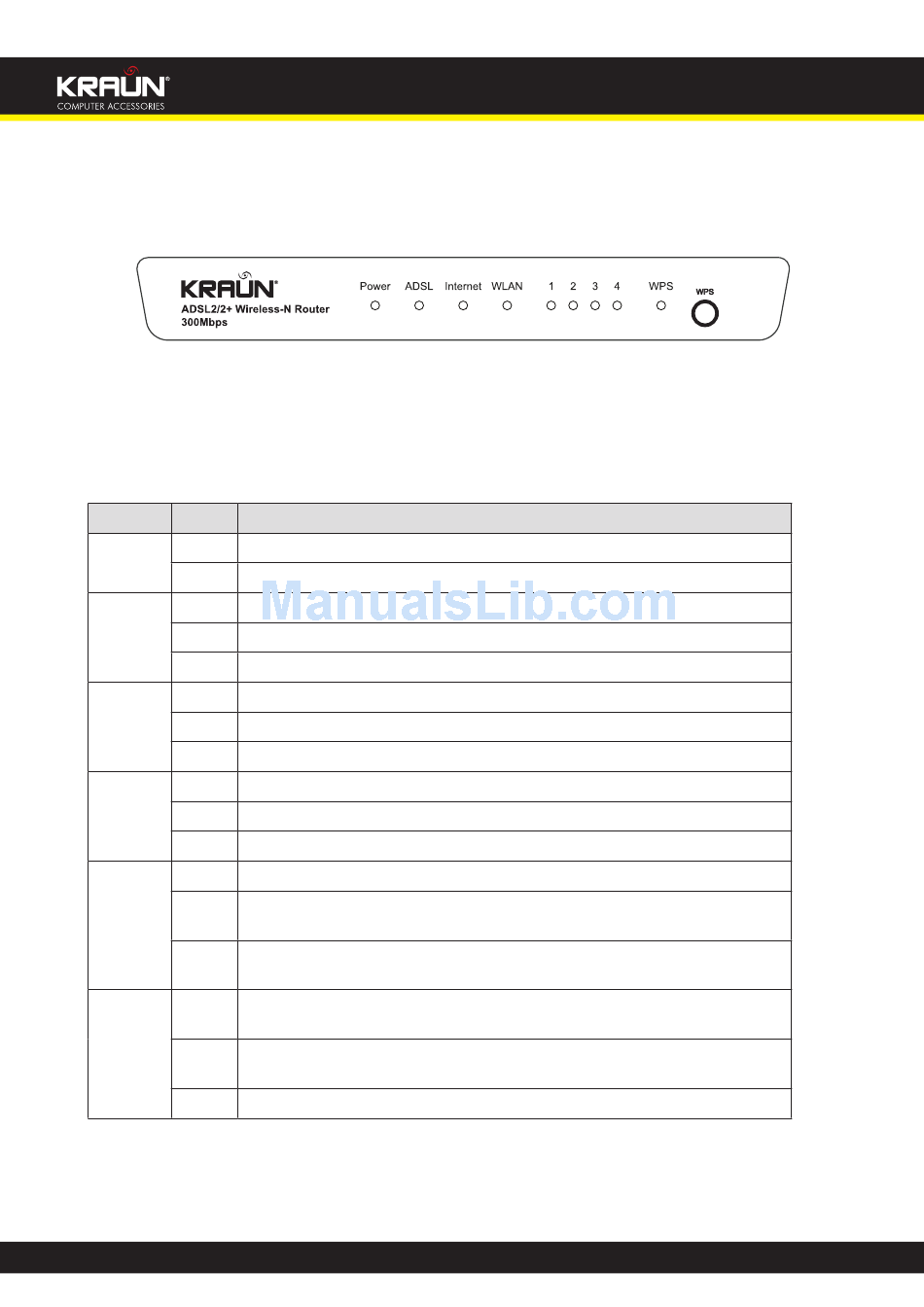

2.1 The Front Panel

The LEDs locate on the front panel, they indicate the device's working status. For details, please refer to LED
Explanation.

LED Explanation

Name Status Indication
On Power is on.
Power
Off Power is off.
Flash The ADSL negotiation is in progress.
ADSL On The LINE port is linked up.
Off The LINE port is linked down.
Off There is no successful PPP connection or the Router works on Bridge mode.
Internet On A successful PPP connection has been built.
Flash Data is being transferred over the Internet.
On The wireless function is enabled but no data is being transmitted.
WLAN Flash There is wireless data being transmitted.
Off The wireless function is disabled.
Flash Data is being transferred over the 1-4 (LAN) port.
There is a successful connection on the corresponding 1-4 (LAN) port but no
On
LAN(1-4) activity.
There is no connection on the corresponding 1-4 (LAN) port or the connection
Off
is abnormal.
A wireless device is connecting to the network by WPS function. This process will
Flash
last in the first 2 minutes and then turn off.
WPS A wireless device has been successfully added to the network by WPS function.
On
The WPS LED will keep on for about 5 minutes and then turn off.
Off The WPS function is disabled or a wireless device is failed to add the network.
Figure 2-1
