Statistics Table:
Transmit total PDUs
Transmit
Statistics
Transmit total Error Counts The total errors occurred over the ADSL port when data is being transmitted.
Receive total PDUs
Receive
Statistics
Receive total Error Counts

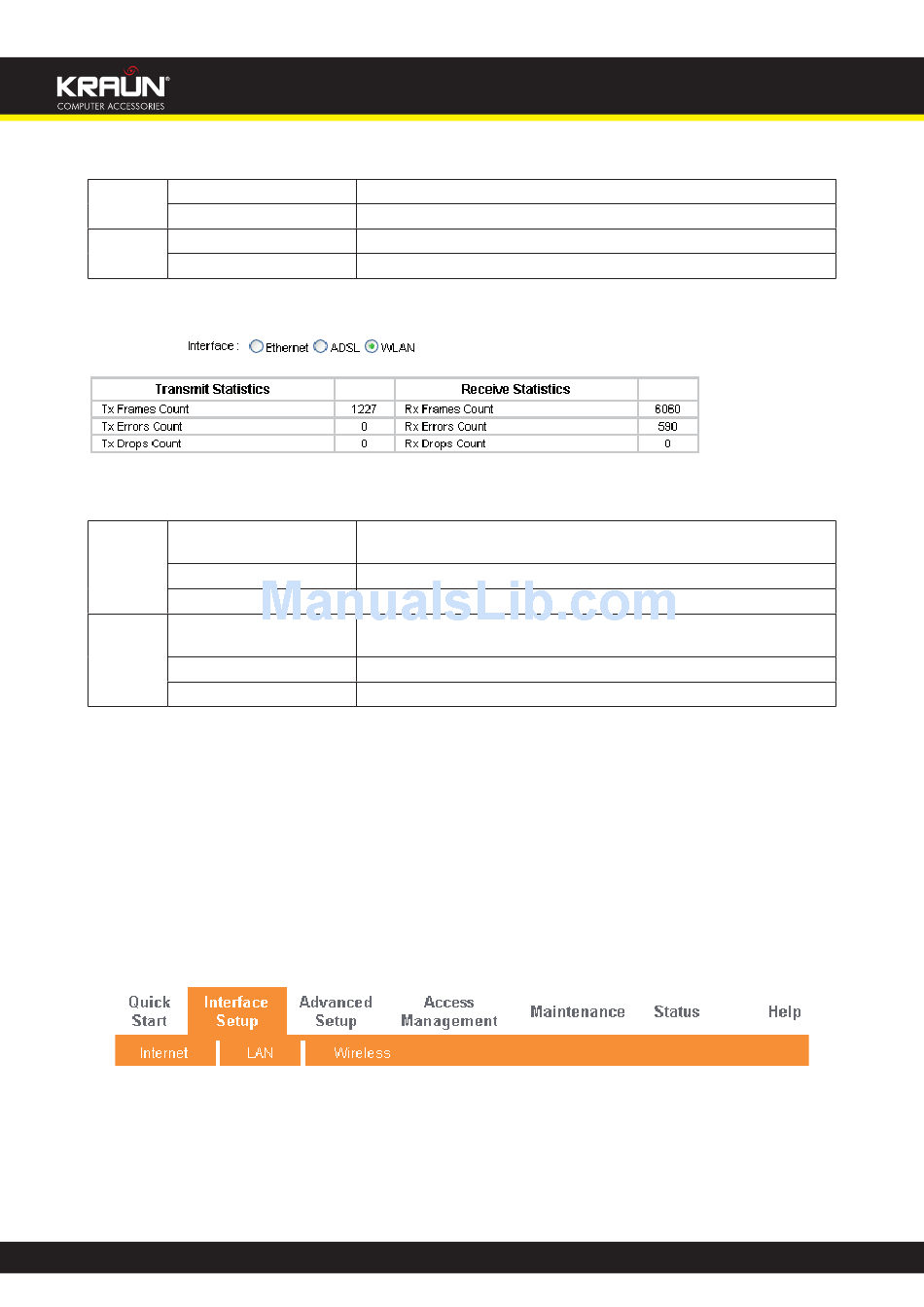

y Select WLAN, and you will see the statistics table as below.
Statistics Table:
Tx Frames Count
Transmit
Statistics Tx Errors Count
Tx Drops Count
Rx Frames Count
Receive
Statistics Rx Errors Count
Rx Drops Count
Click the Refresh button to refresh immediately.

4.2 Quick Start

Please refer to "3.2 Login".

4.3 Interface Setup

Choose "Interface Setup", you can see the next submenus: Internet and LAN.
Click any of them, and you will be able to configure the corresponding function.
The total PDUs transmitted over the ADSL port.
The total PDUs transmitted over the ADSL port.
The total errors occurred over the ADSL port when data is being received.
The frames transmitted over the WLAN when wireless data is being trans-
mitted.
The errors occurred over the WLAN when wireless data is being transmitted.
The drops occurred over the WLAN when wireless data is being transmitted.
The frames received over the WLAN when wireless data is being transmit-
ted.
The errors occurred over the WLAN when wireless data is being received.
The drops occurred over the WLAN when wireless data is being received.
Figure 4-5
18
