y Filter Type Selection: Select the filter type for the configuration below.
y IP/MAC Filter Set Index: Select the Set index for the IP Filter entry. This index can match with six IP / MAC
Filter Rule Indexes.
y Interface: Select the interface for the entry.
NOTE: If select PVC0~PVC7 as an interface, the filter will match the IP traffic of WAN port with specified IPs
(Source IP Address and Destination IP Address). If select LAN as an interface, the filter will match the IP
traffic of LAN port with specified IPs.
y Direction: Select the direction for this IP Filter rule. There are three filtering directions: Both, Incoming,
Outgoing.
NOTE: Incoming means that IP traffic which is coming into the router, and the Outgoing means that IP traffic
which is going out the router.
y IP/MAC Filter Rule Index: Select the Rule index for the IP Filter entry.
NOTE: You should set the IP/MAC Filter Set Index and IP/MAC Filter Rule Index together to appoint the ad-
dress (shown in the Filter List) for the IP Filter rule. For example, (1, 2), it means the rule will be shown in
the row 2 IP/MAC Filter Set Index 1.

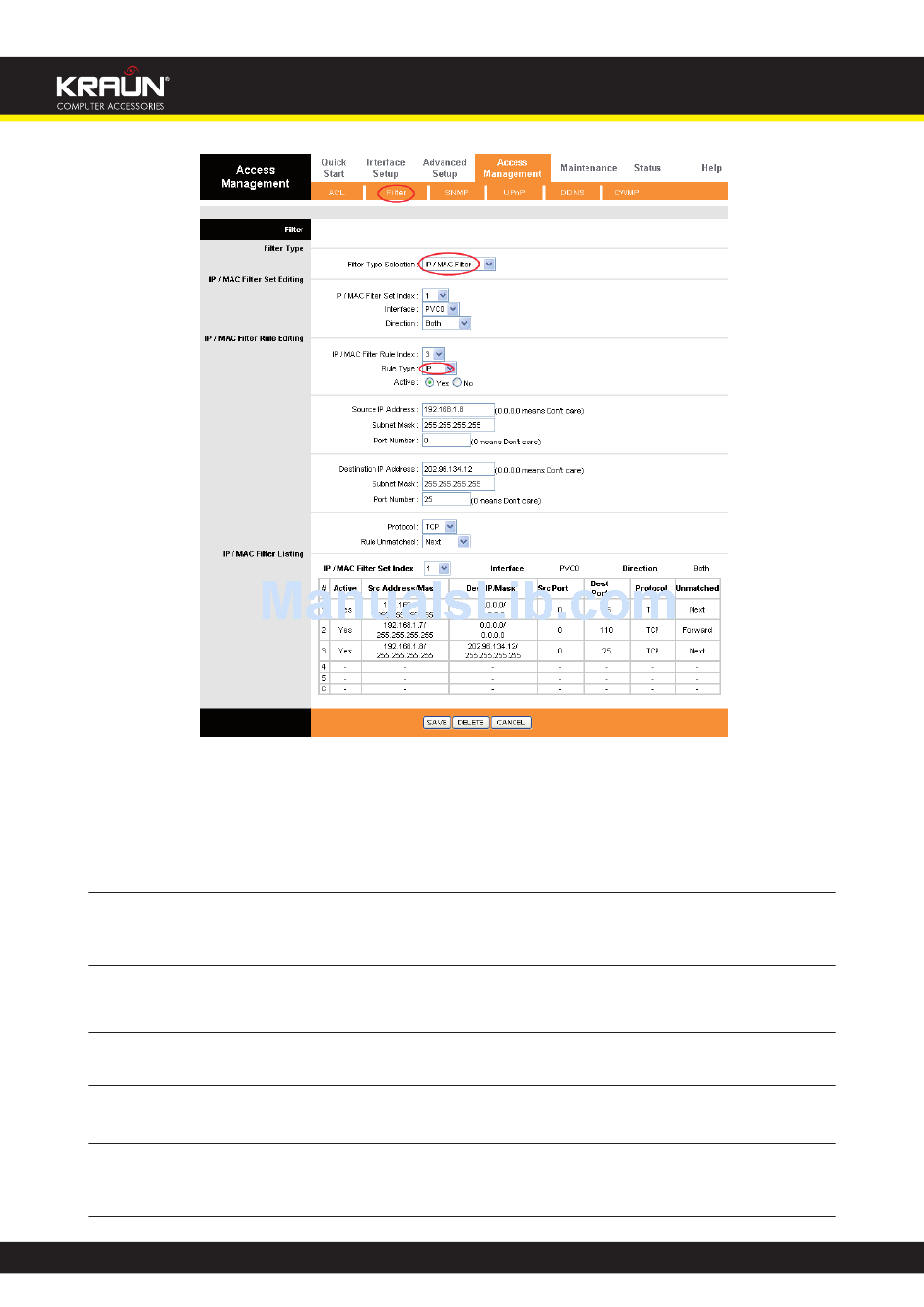

Figure 4-39
