Kraun ADSL2/2+ Wireless-N Router User Manual page 44

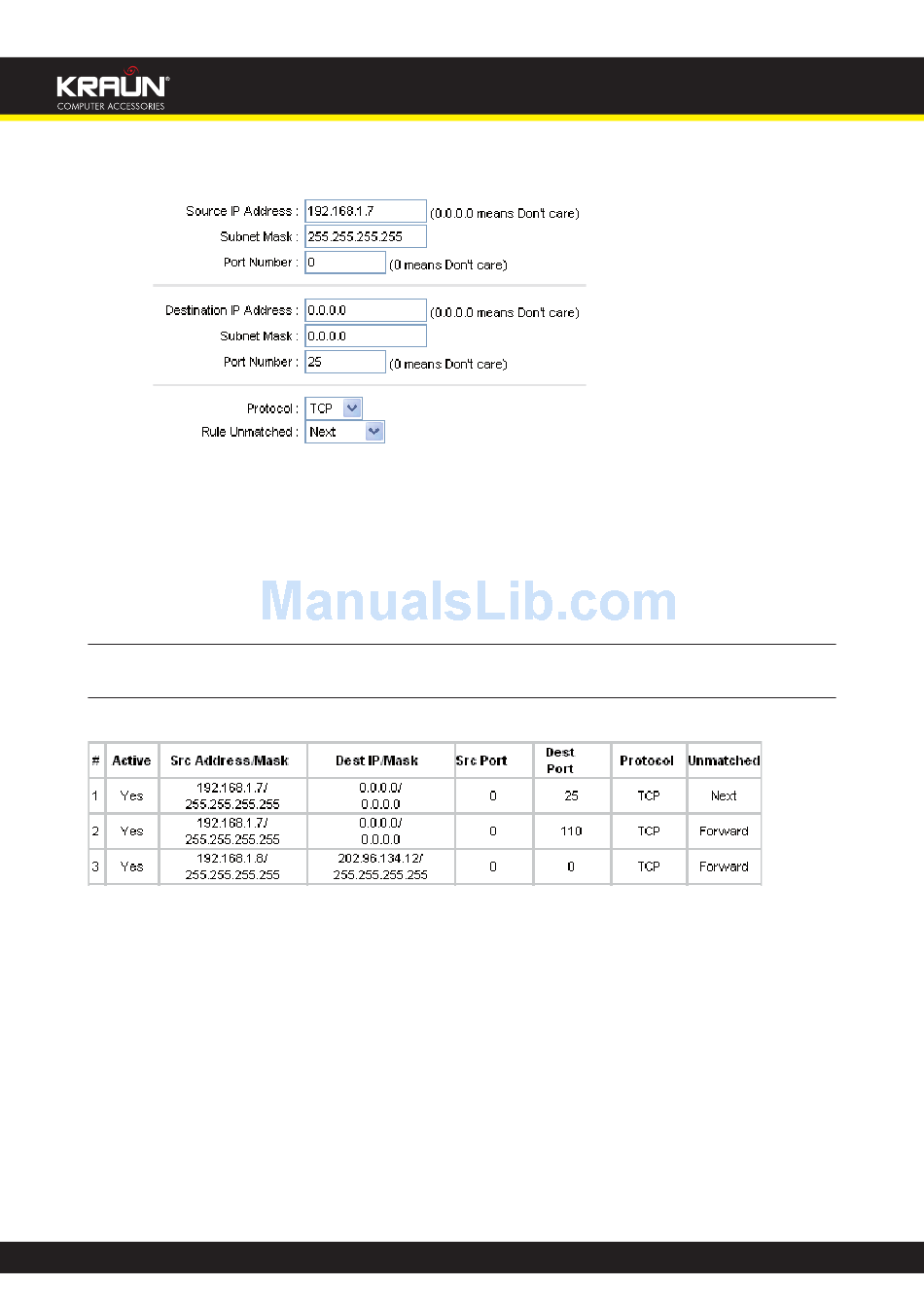

Step 3: Enter the "Source IP Address", "Destination IP Address", "Subnet Mask" and "Port Number" in the
corresponding field.
Step 4: Select the Protocol as "TCP" and select the Unmatched rule as "Next".
Step 5: Finally, click the SAVE to save the entry.
Step 6: Go to Step 2 to configure the next two rules: Block E-mail received by the IP address 192.168.1.7 on
your local network; Make the PC with IP address 192.168.1.8 unable to visit the website of IP address
202.96.134.12.
NOTE: After you complete the IP filter rules for the example, the Filter list will show as follows. You can enter the
IP / MAC Filter Set Index to view the information about the rule.
Other operations for the entries as shown in Figure 4-39:
Select the IP / MAC Filter Set Index and IP/MAC Filter Rule Index to view or modify the entry.
Select the IP / MAC Filter Set Index and IP/MAC Filter Rule Index to locate the specific rule, and then click the
DELETE button to delete the entry.
