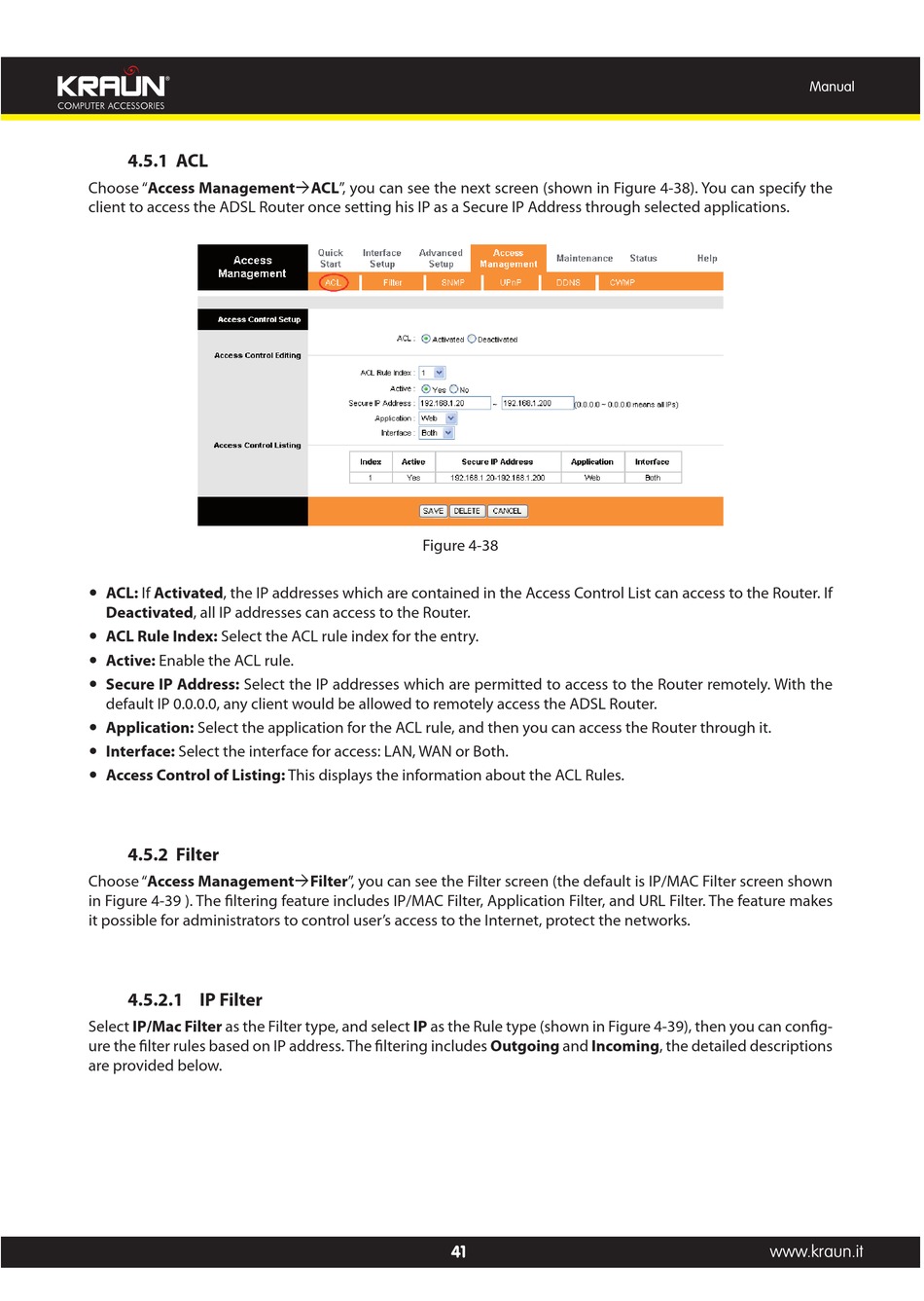

4.5.1 ACL

Choose "Access ManagementACL", you can see the next screen (shown in Figure 4-38). You can specify the
client to access the ADSL Router once setting his IP as a Secure IP Address through selected applications.
y ACL: If Activated, the IP addresses which are contained in the Access Control List can access to the Router. If
Deactivated, all IP addresses can access to the Router.
y ACL Rule Index: Select the ACL rule index for the entry.
y Active: Enable the ACL rule.
y Secure IP Address: Select the IP addresses which are permitted to access to the Router remotely. With the
default IP 0.0.0.0, any client would be allowed to remotely access the ADSL Router.
y Application: Select the application for the ACL rule, and then you can access the Router through it.
y Interface: Select the interface for access: LAN, WAN or Both.
y Access Control of Listing: This displays the information about the ACL Rules.

4.5.2 Filter

Choose "Access ManagementFilter", you can see the Filter screen (the default is IP/MAC Filter screen shown
in Figure 4-39 ). The filtering feature includes IP/MAC Filter, Application Filter, and URL Filter. The feature makes
it possible for administrators to control user's access to the Internet, protect the networks.

4.5.2.1 IP Filter

Select IP/Mac Filter as the Filter type, and select IP as the Rule type (shown in Figure 4-39), then you can config-
ure the filter rules based on IP address. The filtering includes Outgoing and Incoming, the detailed descriptions
are provided below.
Figure 4-38
