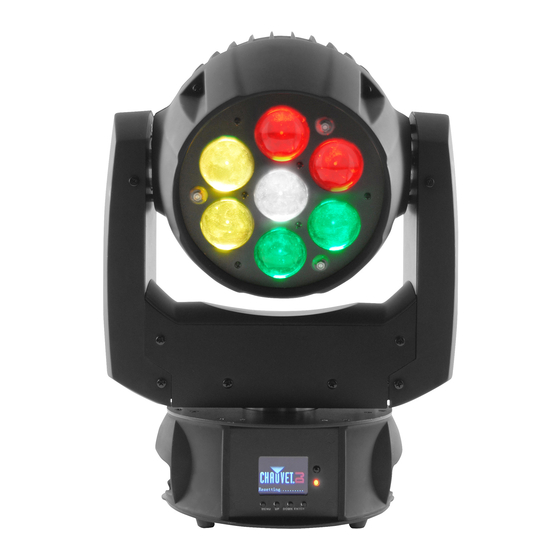

Summary of Contents for Chauvet Intimidator Wash Zoom 350 IRC

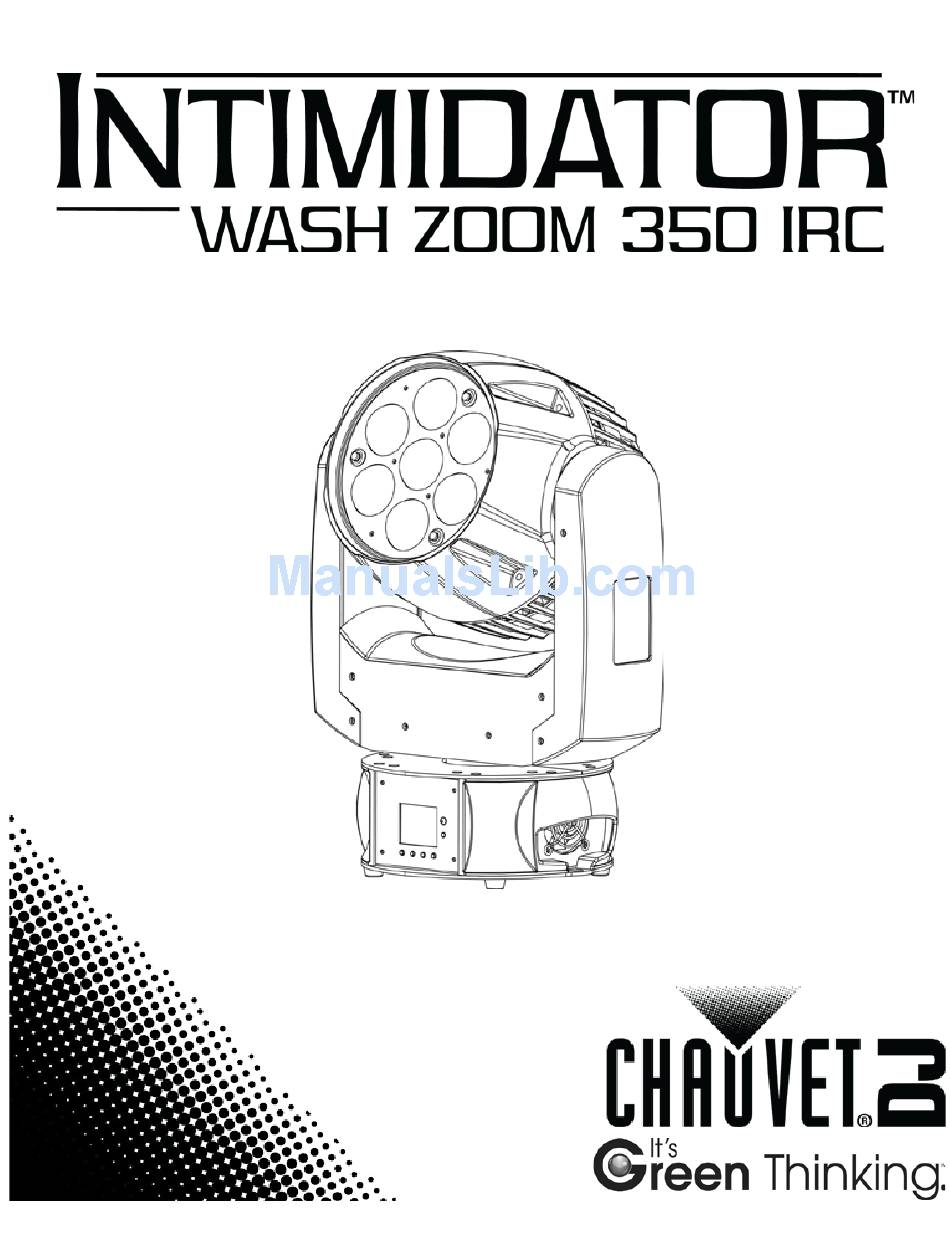

  • Page 1 User Manual...
  • Page 2: Table Of Contents

    ABLE OF ONTENTS 1. Before You Begin ......................... 4 What is Included ................................4 Unpacking Instructions ..............................4 Claims ..................................... 4 Text Conventions ................................4 Symbols ..................................4 Disclaimer ..................................4 Product at a Glance ................................ 5 Safety Notes..................................5 2.
  • Page 3 Dimming Curve ................................ 26 Dimming Speed ............................... 26 Color Balance ................................26 Sensitivity ................................. 27 Reset ..................................27 Reset to Factory Defaults ............................27 System Information ............................... 27 5. Technical Information ........................ 28 Product Maintenance ..............................28 6. Technical Specifications ......................29 Returns ............................
  • Page 4: Before You Begin

    If the box or any of the contents appear damaged from shipping, or show signs of mishandling, Claims save all packaging and file a claim with the carrier immediately, do not notify CHAUVET®. Failure to report damage to the carrier immediately or failure to have all packaging available for inspection may invalidate your claim.
  • Page 5: Product At A Glance

    Use on Dimmer Auto Programs Product at a Glance Outdoor Use Auto-ranging Power Supply Sound-Activated Replaceable Fuse User-Serviceable Master/Slave These notes include important information about the mounting, use, and maintenance of this Safety Notes product. Read these notes before using the product. ·...
  • Page 6: Introduction

    2. I NTRODUCTION Overview Yoke Handles Ventilation Fans IR Sensor Indicator Light Display Control Buttons DMX In Fuse Power In Holder DMX Out Back Panel View Power Out Page 6 of 31 Intimidator™ Wash Zoom 350 IRC User Manual Rev. 1...
  • Page 7: Dimensions

    Dimensions 10.6 in 270 mm 14.3 in 363 mm 7.6 in 194 mm Page 7 of 31 Intimidator™ Wash Zoom 350 IRC User Manual Rev. 1...
  • Page 8: Setup

    3. S ETUP The Intimidator™ Wash Zoom 350 IRC has an auto-ranging power supply that works with an AC Power input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the values listed on the label affixed to the product’s back panel, or refer to the product’s Specifications.
  • Page 9: Power Linking

    The power linking diagram shown above corresponds to the North American version of the product ONLY! If using this product anywhere other than North America, consult with the local CHAUVET® distributor because power linking connectors and requirements differ from country to country, and region to region. Page 9 of 31...
  • Page 10: Mounting

    M12 to M10 size. The smaller M10 size works with the CLP-10 clamp from CHAUVET®. When using only one mounting clamp, be sure to use a clamp with a captive bolt to prevent accidental loosening. Mounting Clamp (such as CLP-15 from CHAUVET®) Safety Cable (such as CH-05 from CHAUVET®) Threaded Mounting Hole...
  • Page 11: Operation

    4. O PERATION The control panel is used to set the operating mode, and the configuration settings of the Control Panel product. Use the 4 buttons underneath the LCD display to access the control panel and Descrioption navigate the menu map. For specific instructions see the Configurations sections below. Button Function <MENU>...
  • Page 12: Zone Control

    Menu Value Description Upside-down display Square I Squa Dimmer Sets the dimmer curve mode Curve SCurve Linear Fast Dimmer Sets the dimmer speed Speed Setup (Cont.) Smooth GREEN Sets color balance for white Color Balance (100–255) BLUE WHITE Sensitivity 001—100 Sets sound sensitivity Reset Resets the product...
  • Page 13: Configuration (Dmx)

    The highest configurable DMX address in 14-channel mode is 499. The highest configurable DMX address in 29-channel mode is 484. For more information about DMX download the CHAUVET® DMX Primer from the CHAUVET® web site http://www.chauvetlighting.com/download. To set the DMX starting address, do the following: 1.
  • Page 14: Dmx Channel Assignments And Values

    The following table outlines all the capabilities of the Intimidator™ Wash Zoom 350 and the DMX Channel channels that control them when the light is used with a lighting controller. Assignments and Values 29-CH Channel Function Value Percent/Setting 000 ó 255 0 to 540°...
  • Page 15 Channel Function Value Percent/Setting 29-CH 070 ó 074 Color 14 075 ó 079 Color 15 080 ó 084 Color 16 085 ó 089 Color 17 090 ó 094 Color 18 095 ó 099 Color 19 100 ó 104 Color 20 105 ó...
  • Page 16 Channel Function Value Percent/Setting 29-CH 128 ó 143 Built-in 8 144 ó 159 Built-in 9 160 ó 175 Built-in 10 176 ó 191 Built-in Built-in 11 23 (Cont.) Control 192 ó 207 Built-in 12 (Cont.) 208 ó 223 Built-in 13 224 ó...
  • Page 17 Channel Function Value Percent/Setting 29-CH 050 ó 054 Reset pan 055 ó 059 Reset tilt 060 ó 064 Reset zoom 065 ó 069 No function 070 ó 074 Reset all 075 ó 079 No function 080 ó 084 Reverse pan/tilt 085 ó...
  • Page 18: 14-Ch

    Channel Function Value Percent/Setting 14-CH 000 ó 255 0 to 540° 000 ó 255 Tilt 0 to 270° 000 ó 255 Speed Pan/Tilt (fast to slow) 000 ó 255 0 to 100% 000 ó 255 Green 0 to 100% 000 ó 255 Blue 0 to 100% 000 ó...
  • Page 19 Channel Function Value Percent/Setting 14-CH 150 ó 164 Random slow on, fast off (decreasing speed) 165 ó 169 Open 170 ó 184 Pulse effect 1 (decreasing speed) 185 ó 189 Open 190 ó 204 Pulse effect 2 (decreasing speed) 205 ó 209 Open Shutter cont.
  • Page 20 Channel Function Value Percent/Setting 14-CH 056 ó 071 Automatic movement macro 4 072 ó 087 Automatic movement macro 5 088 ó 103 Automatic movement macro 6 104 ó 119 Automatic movement macro 7 120 ó 135 Automatic movement macro 8 136 ó...
  • Page 21: Configuration (Standalone)

    Use standalone configurations to operate the product without a DMX controller. Configuration (Standalone) Never connect a product operating in a standalone mode (Sound, Auto, or IR) to a DMX chain that includes a DMX controller. Products in standalone mode can transmit DMX signals that interfere with the DMX signals from the controller Sound mode sets the product to respond to sounds and music.
  • Page 22: Ir Mode

    5. Press <ENTER>. A green dot will show on the IR option line and the product will begin moving and emitting light. The IRC-6 infrared controller (available from CHAUVET®) allows remote control of the IRC-6 Operation Intimidator Wash Zoom 350 IRC.
  • Page 23: Configuration (Master/Slave)

    Master/Slave mode allows a single Intimidator™ Wash Zoom 350 IRC (the master) to Configuration control the actions of one or more Intimidator™ Wash Zoom 350 IRCs (the slaves) without (Master/Slave) a DMX controller. In Master/Slave mode the master is set to operate in Auto mode, Sound mode, or IR mode and the slaves are set to operate in Slave mode.
  • Page 24: Configuration (Settings)

    The Intimidator™ Wash Zoom 350 IRC can be customized with settings such as for Configuration movement, speed, display, and fan operation. Below are instructions for configuring all the (Settings) settings available. Reversing the pan movement is useful when 2 lights are facing each other and they both Pan Reverse need to turn toward the same direction.
  • Page 25: Movement Speed

    Movement Speed The movement, or pan and tilt speed, can be adjusted and will affect the speed of the Auto and Sound modes. To set the pan and tilt speed, do the following: 1. Press <MENU> repeatedly until 4 icons show on the display. 2.
  • Page 26: Display Orientation

    Display Orientation The display can show the screen in two directions, one for when the fixture is standing and one for when it is mounted upside-down. To set the display orientation, do the following: 1. Press <MENU> repeatedly until 4 icons show on the display. 2.
  • Page 27: Sensitivity

    Sensitivity The sensitivity setting adjusts the sensitivity of the product’s microphone. If the product is not responding to the beat of the music in Sound mode, set the sensitivity to a higher number until the product responds. To adjust the sensitivity setting, do the following: 1.
  • Page 28: Technical Information

    5. T ECHNICAL NFORMATION Dust build-up on the lens reduces light output. Dust build-up on the body and fans can Product cause overheating and mechanical wear, which can reduce the usable life of the product. Maintenance To maintain optimum performance and minimal wear in a normal environment, clean the product at least twice a month.
  • Page 29: Technical Specifications

    6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 10.6 in (270 mm) 7.6 in (194 mm) 14.3 in (363 mm) 16 lb (7.3 kg) Note: Dimensions in inches are rounded to the nearest decimal digit Power Power Supply Type Range Voltage Selection Switching (internal)
  • Page 30: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. CHAUVET® reserves the right to use its own discretion to repair or replace returned product(s). Page 30 of 31...
  • Page 31: Contact Us

    Voice: (954) 577-4455 Email: Fax: (954) 929-5560 Toll free: (800) 762-1084 www.chauvetlighting.com World Wide Web UNITED KINGDOM AND IRELAND - CHAUVET® Europe Ltd. General Information Technical Support uktech@chauvetlighting.com Address: Unit 1C Email: Brookhill Road Industrial Estate www.chauvetlighting.co.uk Pinxton, Nottingham, UK...
