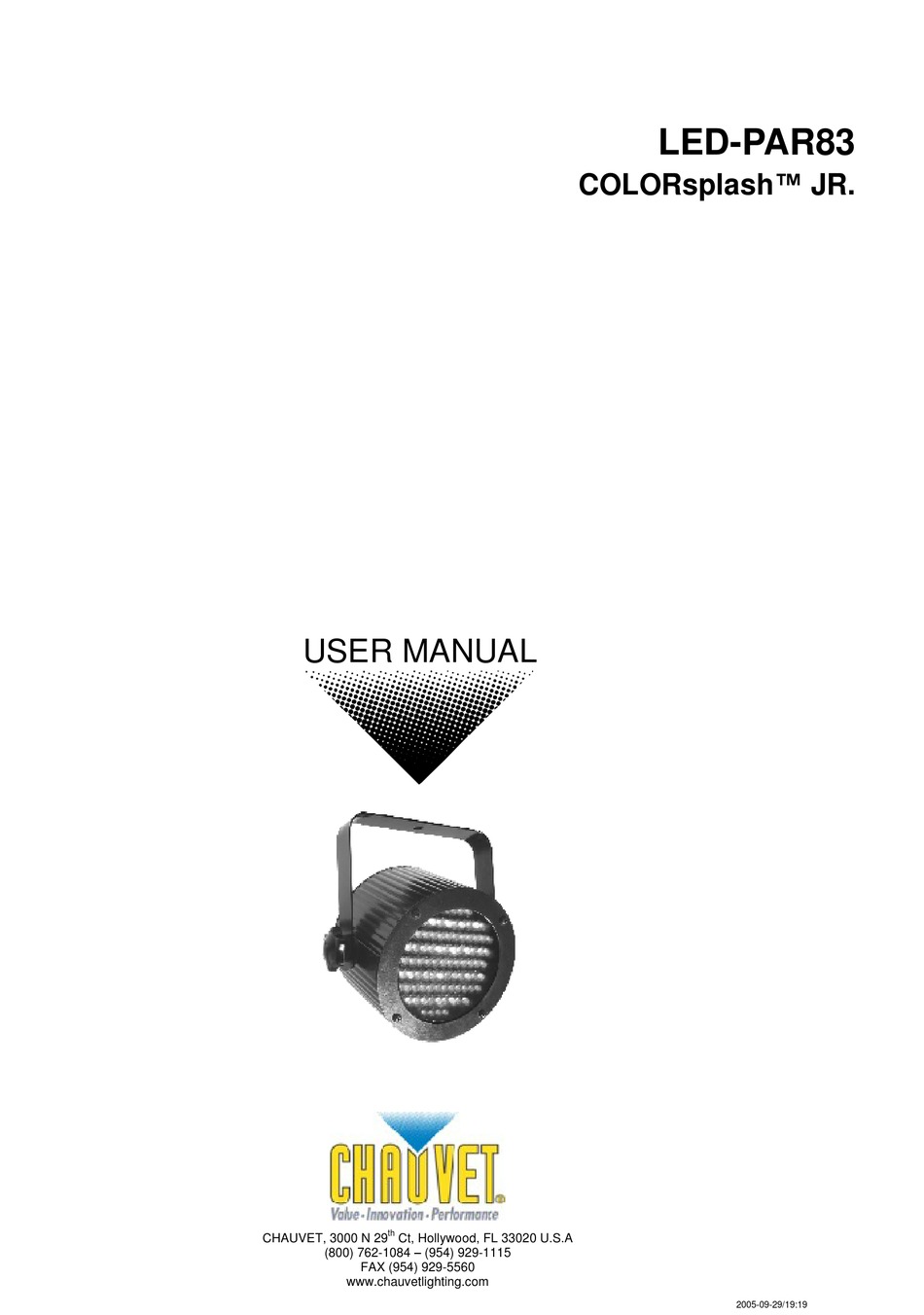

- Page 1 LED-PAR83 COLORsplash™ JR. USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2005-09-29/19:19...
-
Page 2: Table Of Contents
... 10 RIMER Fixture Linking ... 10 DMX C ... 11 HANNEL ALUES ... 11 ETURNS ROCEDURE ... 11 LAIMS DMX D ... 12 IPSWITCH UICK EFERENCE HART ... 13 ECHNICAL PECIFICATIONS ... 13 ECHNICAL UPPORT LED-PAR83 User Manual 2005-09-29/19:19... -
Page 3: Before You Begin
EFORE EGIN What is included 1 x LED-PAR83 COLORsplash™ JR 1 x Power cable (1 m) and 1 x Linking cable (1.5 m) Warranty Card Users Manual Unpacking Instructions Immediately upon receiving a product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Introduction
Up to 100,000-hour LED life span Master/Slave mode OPTIONS Programmable: Any universal DMX-512 controller DMX Channel Summary HANNEL NTENSITY ONTROL OF Blackout/Strobe/Dimmer Green Blue LED-PAR83 User Manual Green & Blue Green & Blue Green & Blue Green & Blue 2005-09-29/19:19... -
Page 5: Product Overview
Product Overview AC Voltage Switch Fuse Power connection LED-PAR83 User Manual Hanging yoke Green & Blue Green & Blue Green & Blue Green & Blue DMX Connectors DMX dipswitches: DMX channel addressing Power link 2005-09-29/19:19... -
Page 6: Setup
1. Align the clamp screw with the center hole on the yoke and tighten. 2. Verify the structure can hold 10 times the weight of all to-be installed fixtures. 3. Adjust the angle on the yoke arm as necessary. LED-PAR83 User Manual NTERNATIONAL Live... -
Page 7: Operating Instructions
AC Line Bui lt - i n P rog r am O pt i ons There are 8 Individual programs that can be accessed by turning ON dipswitches 1 through 8 individually. LED-PAR83 User Manual COLORsplash Jr. FUSE COLORsplash Jr. FUSE... -
Page 8: Manual Control Options
If this is your first time addressing a fixture using the DMX-512 control protocol than I suggest jumping to the Appendix Section and read the heading “DMX Primer”. It contains very useful information that will help you understand its use. LED-PAR83 User Manual Manual Intensity Control RGB Mix... - Page 9 = 24 Resolving address using simple math. Address 233 LED-PAR83 User Manual DDRESS 233 – (128) = 105, Turn ON Dip # 8 105 – (64) = 41, Turn ON Dip # 7 41 – (32) = 9, Turn ON Dip # 6 9 –...
-
Page 10: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 11: Dmx Channel Values
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 12: Dmx Dipswitch Quick Reference Chart
DMX Dipswitch Quick Reference Chart DMX DIP SWITCH SET #9 0=OFF 1=ON X=OFF or ON Dip Switch Position LED-PAR83 User Manual DMX Address Quick Reference Chart Dip Switch Position DMX Address 2005-09-29/19:19... -
Page 13: Technical Specifications
Data output ... locking 3-pin XLR female socket Data pin configuration ...pin 1 shield, pin 2 (-), pin 3 (+) Protocols...DMX-512 USITT DMX Channels ...4 ORDERING INFORMATION COLORsplash™ JR..LED-PAR83 Technical Support Address: Service Dept. 3000 N 29th Ct, Hollywood, FL 33020 (U.S.A.) Support (Email): tech@chauvetlighting.com...
