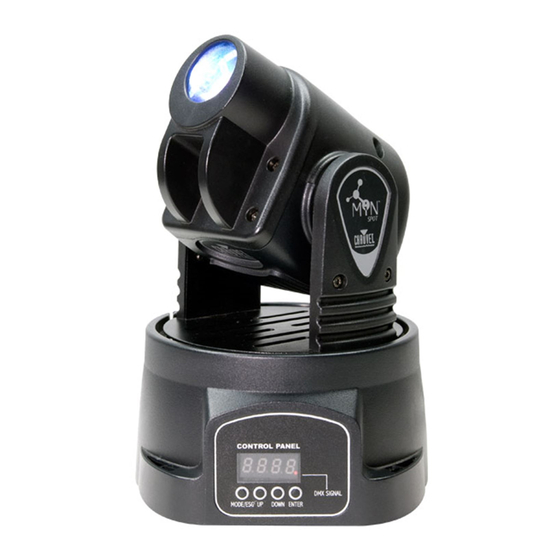

Page 1: Min™ Spot
MiN™ Spot Snapshot OK on Dimmer Outdoor OK Sound Activated DMX512 Master/Slave 115V/230V Switch Replaceable Fuse User Serviceable Duty Cycle USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A. (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com... -
Page 2: Table Of Contents
ABLE OF ONTENTS MiN™ Spot ... 1 USER MANUAL ... 1 1. Before You Begin ... 3 What is included ... 3 Unpacking Instructions ... 3 AC Power ... 3 Contact Us ... 3 Safety Instructions ... 4 2. Introduction ... 5 Features ... -
Page 3: Before You Begin
Earth Ground. Contact Us W o r l d W i d e General Information Technical Support World Wide Web MiN™ Spot User Manual EGIN Chauvet Lighting 3000 North 29 Court Hollywood, FL 33020 voice: 954.929.1115 fax: 954.929.5560 toll free: 800.762.1084... -
Page 4: Safety Instructions
Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET at: 954-929-1115. MiN™ Spot User Manual 2008-07-15/12:39... -
Page 5: Introduction
2. I NTRODUCTION Features CONTROL FEATURES • 5 or 13-channel DMX-512 LED moving yoke • Pan: 540 / tilt: 270 • RGB color mixing • Gobo wheel 9 gobos + open Gobo wheel spin effect • Variable electronic strobe • Variable electronic dimmer (0 –... -
Page 6: Dmx Channel Summary - 5 Channel Mode
DMX Channel Summary - 5 Channel Mode HANNEL UNCTION Tilt Shutter Color Macro Gobo Product Overview Projector Head Focus Control Panel IEC Power Connector with Fuse holder (Rear) MiN™ Spot User Manual Lens Readout DMX In Voltage Selector Switch (rear) DMX Out CA-9 Controller... -
Page 7: Setup
Maximum recommended number of fixtures on a serial data link: 32 fixtures Data Cabling To link fixtures together you must obtain data cables. You can purchase CHAUVET-certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 8: Cable Connectors
If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter. If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter. CHAUVET Model No: DMX5M, or DMX5F. CHAUVET Model No: DMX5M, or DMX5F. -
Page 9: Master/Slave Fixture Linking
Master/Slave Fixture Linking 1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the first fixture. 2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin connector to the input connector of the next fixture consisting of a (male) 3 pin connector. -
Page 10: Navigating The Control Panel
4. O PERATING Navigating the Control Panel Access control panel functions using the four panel buttons located directly underneath the LCD Display. Button Used to access the menu or to return to a <MODE/ESC> previous menu option Scrolls through menu options in ascending <UP>... -
Page 11: Menu Map
Menu Map MiN™ Spot User Manual 2008-07-15/12:39... -
Page 12: User Configurations
User Configurations T O SET T H E P A N T O I N V ER T ING O R N O N - IN V ER T ING : Press the Mode button until it shows Use the Up/Down buttons to set to the desired inversion, press enter to confirm. T O SET THE T I LT TO I N V ERTING OR NON- IN VERTING: Press the Mode button until it shows Use the Up/Down buttons to set to the desired inversion, press enter to confirm. -
Page 13: Stand-Alone Mode (Auto Mode)
Master. Slave Easy Controller Mode This mode allows users to control the MiN Spot with the easy controller. To place the unit in easy controller mode, select In Easy controller mode, the fixture will react as follows:... -
Page 14: Dmx Channel Values (13 Channel)
DMX Channel Values (13 Channel) HANNEL ALUE 255 Vector Speed: (Normal → Slow) 255 Vector Speed (Color) 128-255 MiN™ Spot User Manual UNCTION Pan Fine Tilt Tilt Fine Dimmer/Strobe Closed 100-0% Strobe (slow → fast) Open 0-100% Green 0-100% Blue 0-100% Color Macros No Function... -
Page 15: Dmx Channel Values (5 Channel)
DMX Channel Values (5 Channel) HANNEL ALUE 255 Pan 128-255 MiN™ Spot User Manual UNCTION Tilt Dimmer/Strobe Closed 100-0% Strobe (slow → Fast) Open Color Macros No Function White Green Blue Cyan Magenta Yellow Purple Orange Chartreuse Pink Brown Gold Crimson Violet Crepe... -
Page 16: Troubleshooting
If you still have a problem after trying the above solutions, please contact CHAUVET Technical Support at the location on the next page. MiN™ Spot User Manual... -
Page 17: Technical Support
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) MiN™... -
Page 18: General Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RMA #). Products returned without a RMA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 19: Technical Specifications
Technical Specifications WEIGHT & DIMENSIONS Length... 6.8 in (173 mm) Width ... 6.8 in (173 mm) Height ... 9.8 in (249 mm) Weight ... 8.3 lbs (3.8 kg) POWER Switch-selectable power settings ... 120V 60Hz AC or 230V 50Hz Fuse ... 2A 250V Power Consumption ...
