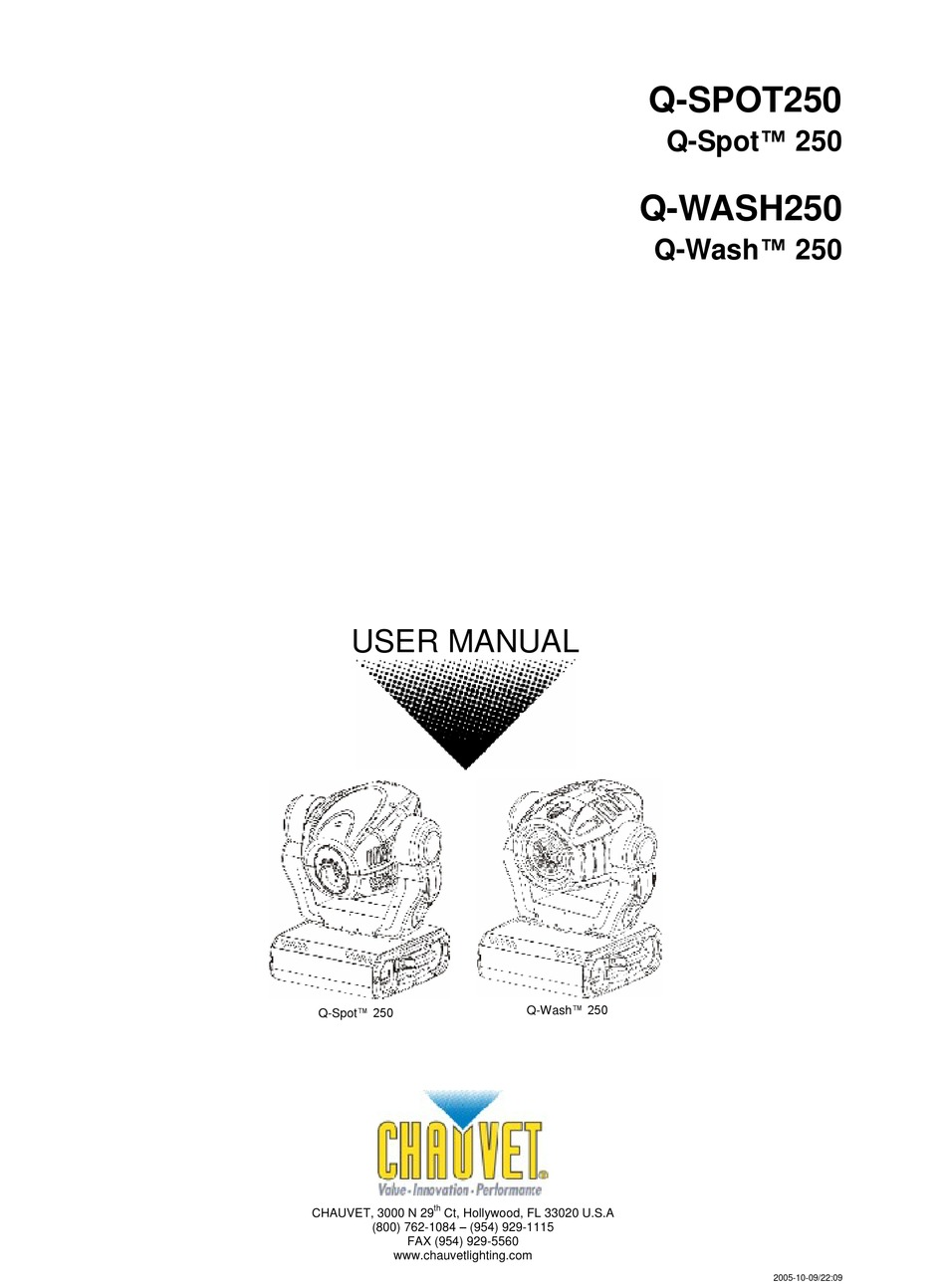

- Page 1 Q-SPOT250 Q-Spot™ 250 Q-WASH250 Q-Wash™ 250 USER MANUAL Q-Wash™ 250 Q-Spot™ 250 CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2005-10-09/22:09...
-
Page 2: Table Of Contents
Q-Spot™ 250 ... 15 Q-Wash™ 250 ... 16 ... 17 AINTENANCE ... 17 ETURNS ROCEDURE ... 17 LAIMS ... 18 ENERAL ROUBLESHOOTING ... 19 ECHNICAL PECIFICATIONS ... 19 ECHNICAL UPPORT Q-Wash & Q-Spot 250 User Manual ) ... 11 2005-10-09/22:09... -
Page 3: Before You Begin
There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. Q-Wash & Q-Spot 250 User Manual HSD-250 Discharge lamp ... -
Page 4: Introduction
Lamp on/off & reset Q-Wash™ 250 HANNEL Pan (Fine) 16 bit Tilt (Fine) 16 bit Pan/Tilt Speed Q-Wash & Q-Spot 250 User Manual Q-Wash™ 250 10 channel DMX Intelligent Moving Yoke Color Wash Pan: 530° Tilt: 280° Pan/Tilt speed ... -
Page 5: Product Overview
DOWN functions Steps forward through menu functions Confirms selected menu ENTER function Q-Wash & Q-Spot 250 User Manual SEGMENT BUTTONS I/O PANEL OVERVIEW I/O P ANEL DMX Out & In DMX-512 connectors Power AC input IEC 60320 C14 and fuse holder 1. -
Page 6: Setup
Q-Wash & Q-Spot 250 User Manual Top Cover Lamp cover thumbscrews 2005-10-09/22:09... -
Page 7: Lamp Alignment How-To (Q-Spot™ 250)
Do not touch the envelope (glass area) of the bulb with bare hands. If this happens, clean the lamp with alcohol and wipe it with a lint free cloth before installation. Q-Wash & Q-Spot 250 User Manual WARNIN G! La mp is hot! Ris k of fire P rotec hands and eyes. -
Page 8: Lamp Installation (Q-Wash™ 250)
Q-Wash & Q-Spot 250 User Manual Wait at least 15 min. before opening the covers and removing Lamp Alignment Screws, A, B &... -
Page 9: Power
O ri ent at ion The Q-Spot™ 250 and Q-Wash™ 250 can sit on stage or be mounted on a truss using a clamp in any position, provided, there is adequate room for ventilation. Q-Wash & Q-Spot 250 User Manual NTERNATIONAL Live... - Page 10 2. Verify the structure can hold 10 times the weight of all to-be installed fixtures. 3. From a stable platform, attach two clamps as illustrated on drawing above. Q-Wash & Q-Spot 250 User Manual Safety Cable 1. Clamp 2. Eye bolt 3.
-
Page 11: Operating Instructions
3. Press the [Up] or [Down] button to toggle between the options available for that particular menu function. 4. Press the [Enter] button to store your selection. Q-Wash & Q-Spot 250 User Manual [MODE] Confirms selection [ENTER] Access to main menu... -
Page 12: Operating Modes
(male) 3 pin connector. Then, proceed to connect from the output as stated above to the input of the following fixture and so on. Q-Wash & Q-Spot 250 User Manual OTES... -
Page 13: Dmx-512 Addressing
This function will re-initialize the fixture by returning all motors to its startup positions or otherwise known as (home position). UNCTION rESt [ENTER] Reset fixture Q-Wash & Q-Spot 250 User Manual OTES Pan Invert Tilt Invert OTES With linear progression or advancement of the color wheel split colors will be achieved. -
Page 14: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 15: Dmx Values
128 159 160 191 192 223 224 225 000 255 Q-Wash & Q-Spot 250 User Manual UNCTION Left > Right ( 128 = center) Tilt Up > Down (128 = center) Pan (Fine) 16 bit... -
Page 16: Q-Wash™ 250
128 159 160 191 192 223 224 225 000 255 Q-Wash & Q-Spot 250 User Manual UNCTION Left > Right ( 128 = center) Tilt Up > Down (128 = center) Pan (Fine) 16 bit... -
Page 17: Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 18: General Troubleshooting
Remote does not work Make sure connector is firmly connected to device Stand alone mode All CHAUVET lighting fixtures featuring stand-alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode Unit wobbles when... -
Page 19: Technical Specifications
Q-Spot™ 250 ... Q-SPOT250 Technical Support Address: Service Dept. 3000 N 29 Support (Email): tech@chauvetlighting.com Telephone: (954) 929-1115 - (Press 4) Fax: (954) 929-5560 - (Attention: Service) Website:... http://www.chauvetlighting.com Q-Wash & Q-Spot 250 User Manual Ct, Hollywood, FL 33020 (U.S.A.) Appendix 2005-10-09/22:09...
