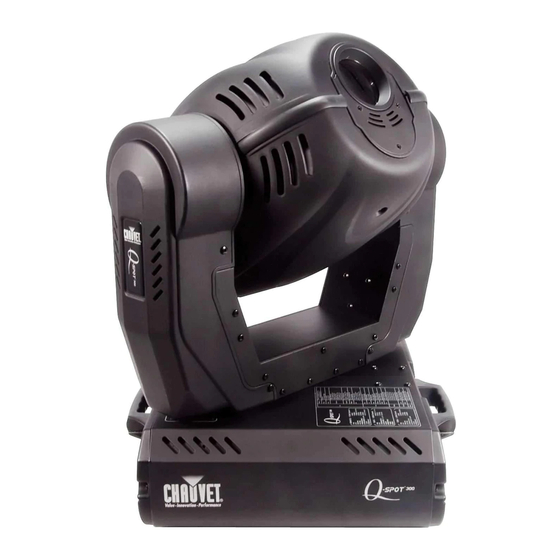

Q-Spot 300™
USER MANUAL
th
Chauvet, 3000 N 29
Ct, Hollywood, FL 33020 U.S.A.
(800) 762-1084 – (954) 929-1115
FAX (954) 929-5560
www.chauvetlighting.com
Snapshot
Ok on Dimmer
Outdoor OK
Sound Activated
DMX512
Master/Slave
Multitap
Transformer
Replaceable Fuse
User Serviceable
Duty Cycle
