Page 1: User Manual

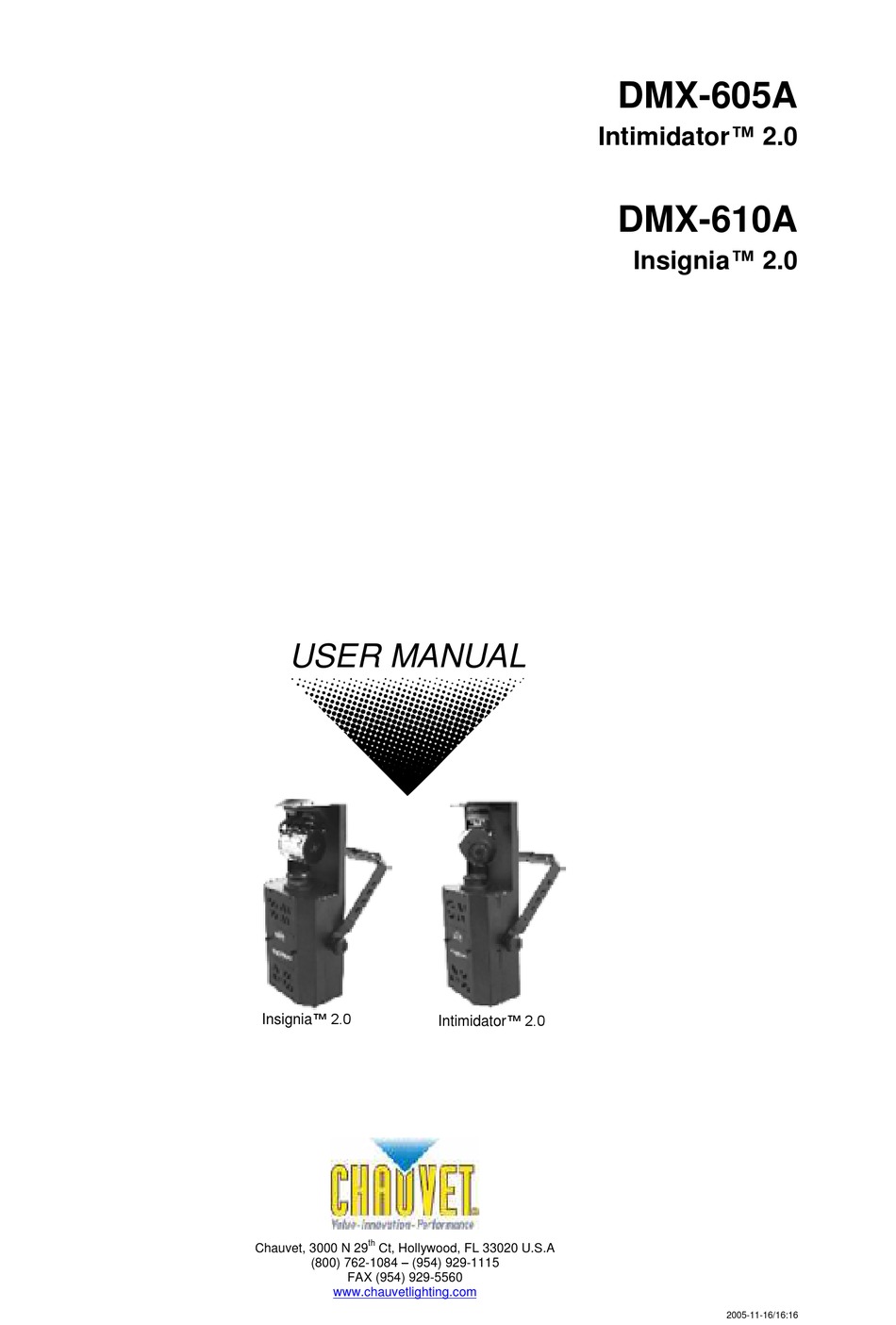

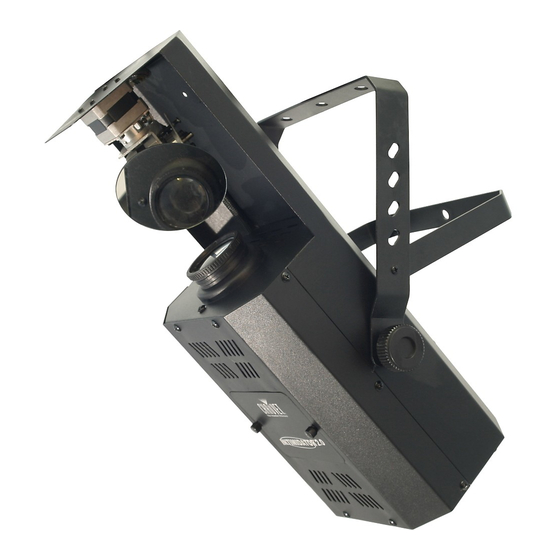

DMX-605A Intimidator™ 2.0 DMX-610A Insignia™ 2.0 USER MANUAL Insignia™ 2.0 Intimidator™ 2.0 Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2005-11-16/16:16... -
Page 2: Table Of Contents
ABLE OF ONTENT TABLE OF CONTENT ... 2 BEFORE YOU BEGIN ... 3 ... 3 HAT IS INCLUDED ... 3 NPACKING NSTRUCTIONS AC P ... 3 OWER ... 3 AFETY NSTRUCTIONS INTRODUCTION... 4 ... 4 EATURES DMX C ... 4 HANNEL UMMARY ... -
Page 3: Before You Begin
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. DMX-605A & DMX-610A User Manual Power cord with plug ... -
Page 4: Introduction
NTRODUCTION Features Insignia™ 2.0 Control Features 5 channel DMX Intelligent Barrel Scanner Strobing Gobo Wheel - 14 gobos plus open - 12 metal, 2 glass - Gobo Bounce™ Color Wheel - 11 colors plus open - (include UV purple) plus white Barrel Swivels 180°... -
Page 5: Product Overview
Product Overview Intimidator™ 2.0 Double bracketed yoke used for floor positions. DMX-605A & DMX-610A User Manual Barrel Scanner Mirror Scanner Hanging Yoke, double bracketed for floor positioning Lamp access cover Power & Fuse compartment DMX connectors Voltage Switch Remote Controller Input Insignia™... -
Page 6: Setup
ETUP Lamp You will need to install a lamp prior to the initial operation of the fixture. An ELC 250W halogen lamp is included. Warning! When replacing the lamp, please wait 15 minutes after powering down to allow the unit to cool down! Always disconnect from main power prior to lamp replacement. Do not touch the envelope (glass area) of the bulb with bare hands. -
Page 7: Mounting
Mounting O RI E NT AT IO N This fixture may be mounted in any position provided there is adequate room for ventilation. RIG G ING It is important never to obstruct the fan or vents pathway. Mount the fixture using, a suitable “C” or “O” type clamp. Adjust the angle of the fixture by loosening both knobs and tilting the fixture. -
Page 8: Operating Instructions
PERATING NSTRUCTIONS Operating Modes A stand-alone mode will listen to sound and run through its diverse range of built in programs. Master/Slave mode will allow the command of up to as many units you want in a synchronized light show to the sound. - Page 9 If this is your first time addressing a fixture using the DMX-512 control protocol than I suggest jumping to the Appendix Section and read the heading “DMX Primer”. It contains very useful information that will help you understand its use. Set the start address using the group of DIP switches located usually on bottom of the fixture.
-
Page 10: Ca-9 E Asy C Ontroller (O Ptional )
CA-9 Easy Controller (Optional) TAND LED ON: Slow Mode LACKOUT LED OFF: Fast Mode DMX-605A & DMX-610A User Manual UNCTION Pan & Tilt is sound activated but Gobo and Color wheel are static and controlled by the Function button. Tap the Function button to step through the 11 colors then once more to step to the next gobo. -
Page 11: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 12: Dmx Channel Values
DMX Channel Values Channel DMX-605A & DMX-610A User Manual Value Function Strobe 000 015 Gobo Stopped 016 091 Adjacent gobo strobe: Slow > Fast 092 135 Adjacent color strobe: Slow > Fast 136 195 Adjacent color and gobo strobe: Slow > Fast 196 ... -
Page 13: Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 14: General Troubleshooting
Remote does not work Make sure connector is firmly connected to device Stand alone mode All CHAUVET lighting fixtures featuring stand-alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode Unit wobbles when rotating Check for damages possibly incurred during shipping DMX-605A &... -
Page 15: Technical Specifications
Technical Specifications WEIGHT & DIMENSIONS Length... 457.20 mm (18.00 in) Width... 152.40 mm (6.00 in) Height ... 139.70 mm (5.50 in) Weight...7.48 Kg (16.5 lbs) POWER Switch-selectable power setting ...115V 60 Hz or 230V 50 Hz AC input ...3-prong IEC 60320 C14 male socket Current draw ...
