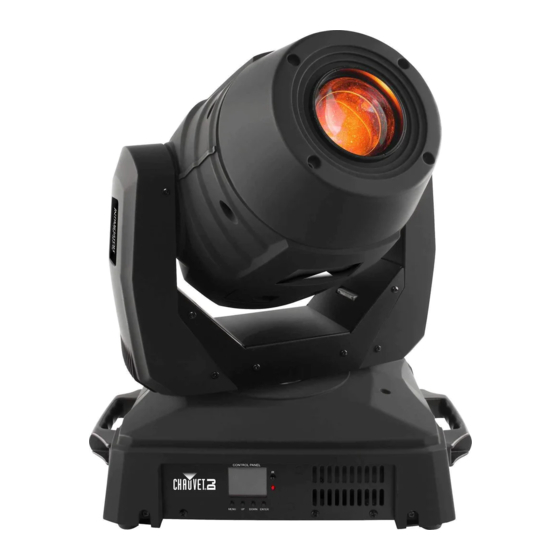

Summary of Contents for Chauvet Intimidator Spot 455Z IRC

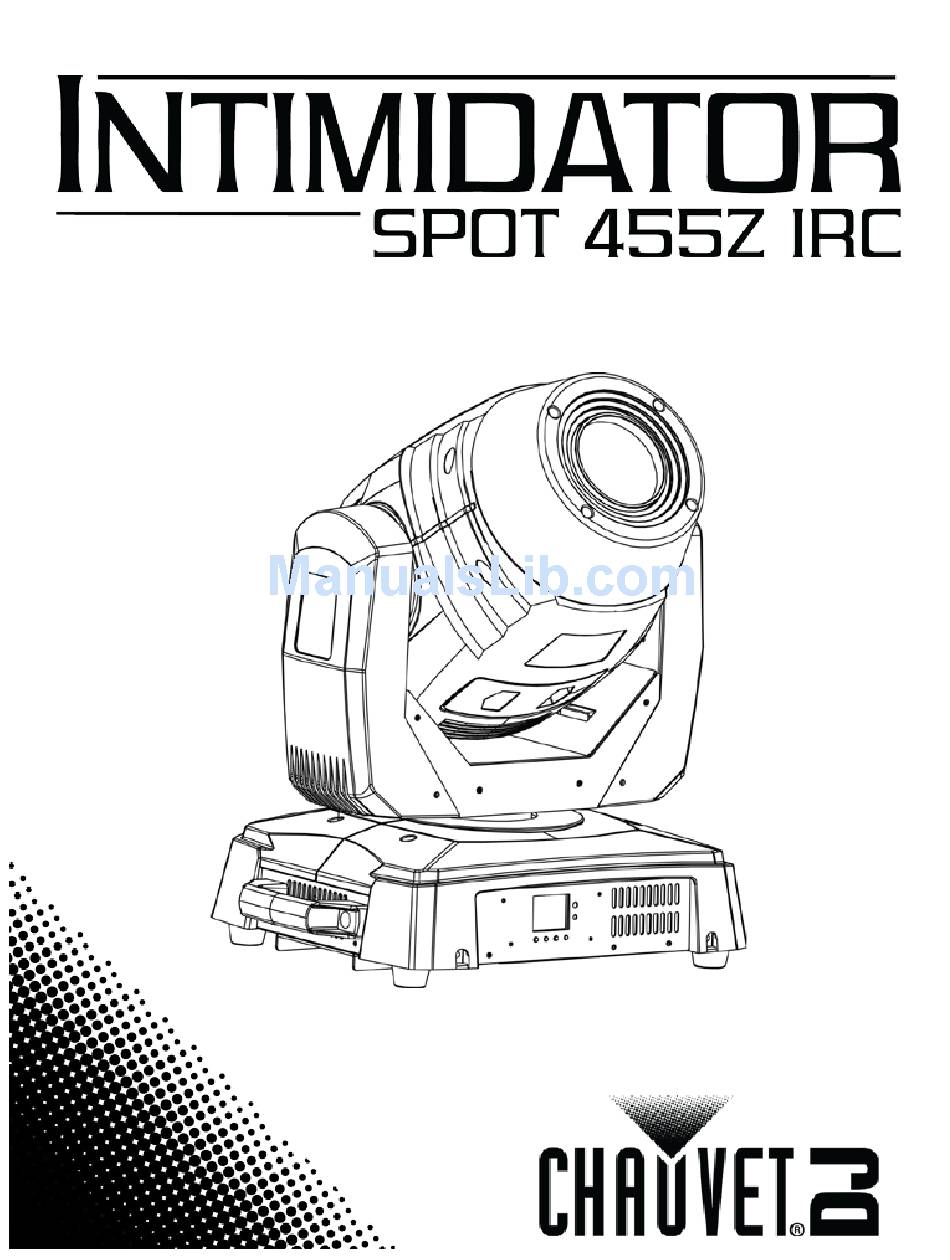

- Page 1 User Manual...
-
Page 2: Table Of Contents
Factory Reset ..........................19 System Information ........................19 Master/Slave Mode ..........................20 IR Mode ..............................21 IRC-6 Operation............................ 21 Zero Adjust Mode .......................... 22 Changing Gobos ........................... 23 Page 2 of 27 Intimidator Spot 455Z IRC User Manual Rev. 4... - Page 3 6. Technical Information ....................24 Product Maintenance ........................24 7. Technical Specifications ....................25 Returns ..........................26 Contact Us .........................27 Intimidator Spot 455Z IRC User Manual Rev. 4 Page 3 of 27...
-
Page 4: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. -
Page 5: Product At A Glance
Keep this User Manual for future use. If you sell the product, give this document to the next owner. Intimidator Spot 455Z IRC User Manual Rev. 4 Page 5 of 27... -
Page 6: Introduction
Gobo Access Door Carry Handle x2 Full Color Indicator LED LCD Display IR Sensor Menu Front Panel View Buttons Power Out DMX In/Out Power In Fuse-Holder Back Panel View Page 6 of 27 Intimidator Spot 455Z IRC User Manual Rev. 4... -
Page 7: Product Dimensions
Product Dimensions 20.5 in 520 mm 16.6 in 423 mm 11.9 in 303 mm Intimidator Spot 455Z IRC User Manual Rev. 4 Page 7 of 27... -
Page 8: Setup
Product Other products You can power link up to 2 Intimidator Spot 455Z IRC units on 120 VAC or up to 5 Intimidator Spot 455Z IRC units on 230 VAC. The power linking diagram shown above corresponds to the North American... -
Page 9: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Intimidator Spot 455Z IRC may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 10: Operation
Running Mode: _ _ _ _ _ Displays the current running mode Sys Info Dmx Address: _ _ _ Displays the current DMX address Temperature: _ _ _ Displays the LED temperature in Celsius Page 10 of 27 Intimidator Spot 455Z IRC User Manual Rev. 4... -
Page 11: Configuration (Dmx)
DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The Intimidator Spot 455Z IRC uses up to 16 DMX channels in its 16-channel DMX mode, which defines the highest configurable address to 497. -
Page 12: Dmx Assignments
192ó255 Reverse cycle effect with increasing speed 000ó063 Gobo indexing 064ó147 Rotation effect with increasing speed Gobo Rotation 148ó231 Reverse rotation effect with increasing speed 232ó255 Gobo bounce Page 12 of 27 Intimidator Spot 455Z IRC User Manual Rev. 4... -
Page 13: 16Ch (Cont.)
000ó255 0–100% Dimmer 000ó255 0–100% 000ó003 Closed 004ó007 Open 008ó076 Synchronized strobe effect (increasing speed) Shutter 077ó145 Strobe effect (increasing speed) 146ó215 Random shutter (increasing speed) 216ó255 Open Intimidator Spot 455Z IRC User Manual Rev. 4 Page 13 of 27... -
Page 14: 16Ch (Cont.)
Sound-active movement 2 168ó183 Sound-active movement 3 184ó199 Sound-active movement 4 200ó215 Sound-active movement 5 216ó231 Sound-active movement 6 232ó247 Sound-active movement 7 248ó255 Sound-active movement 8 Zoom 000ó255 0–100% Page 14 of 27 Intimidator Spot 455Z IRC User Manual Rev. 4... -
Page 15: 10Ch
192ó255 Reverse cycle effect with increasing speed 000ó063 Gobo indexing 064ó147 Rotation effect with increasing speed Gobo Rotation 148ó231 Reverse rotation effect with increasing speed 232ó255 Gobo bounce Intimidator Spot 455Z IRC User Manual Rev. 4 Page 15 of 27... -
Page 16: 10Ch (Cont.)
000ó255 0–100% 000ó003 Closed 004ó007 Open 008ó076 Synchronized strobe effect (increasing speed) Shutter 077ó145 Strobe effect (increasing speed) 146ó215 Random shutter (increasing speed) 216ó255 Open Zoom 000ó255 0–100% Page 16 of 27 Intimidator Spot 455Z IRC User Manual Rev. 4... -
Page 17: Configuration (Standalone)
Use <UP> or <DOWN> to choose Setup. Press <ENTER>. Use <UP> or <DOWN> to select Totem Mode. Press <ENTER>. Use <UP> or <DOWN> to choose OFF, DOWN, or UP. Press <ENTER>. Intimidator Spot 455Z IRC User Manual Rev. 4 Page 17 of 27... -
Page 18: Manual Mode
Manual Mode To test or control any function of the Intimidator Spot 455Z IRC through the LCD display menu, follow the instructions below: Press <MENU>. Use <UP> or <DOWN> to choose Run Mode. Press <ENTER>. Use <UP> or <DOWN> to select Manual. -
Page 19: Screen Reverse
Press <ENTER>. Factory Reset Using the Factory Set option will clear out all customized settings and return the settings to the factory defaults To reset the Intimidator Spot 455Z IRC to factory defaults, follow the instructions below: Press <MENU>. Use <UP> or <DOWN> to choose Setup. -
Page 20: Master/Slave Mode
When the Intimidator Spot LED 450 is the master and the Intimidator Spot 455Z IRC is connected as a slave, the Intimidator Spot 455Z IRC must be set to DMX mode with a starting address of 001. DO NOT set the Intimidator Spot 455Z IRC in Slave mode when an Intimidator Spot LED 450 is the master. -
Page 21: Ir Mode
Use <UP> or <DOWN> to choose Run Mode. Press <ENTER>. Use <UP> or <DOWN> to choose IR. Press <ENTER> and the IR indicator on the front of the Intimidator Spot 455Z IRC lights up. IRC-6 Operation Be sure the IRC-6 remote is pointing directly at the product and there is nothing in between the remote and the product. -
Page 22: Zero Adjust Mode
Zero Adjust The Intimidator Spot 455Z IRC contains a passcode-protected mode which allows you to calibrate and adjust several of the product’s operating parameters. Mode In order to access this mode, do the following: Press <MENU> repeatedly until the current operating mode shows on the display. -
Page 23: Changing Gobos
Changing To change the gobos in the Intimidator Spot 455Z IRC, do not remove the gobo wheel. Instead: Gobos Disconnect product from power outlet. Place the product on a flat, level surface with the front facing up. Access the gobo plate by removing the cover on the moving head. By hand, gently push downward on the cover, in the direction of the debossed arrowhead on the cover. -
Page 24: Technical Information
Gently polish the glass/transparent surfaces until they are free of haze and lint. Always dry the glass/transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because you could damage them. Page 24 of 27 Intimidator Spot 455Z IRC User Manual Rev. 4... -
Page 25: Technical Specifications
104 °F (40 °C) Fan-cooled I/O Connectors Connector Type Channel Range 3-pin XLR Sockets 10 or 16 Product Name Item Code UPC Number Ordering Intimidator Spot 455Z IRC 08011031 781462213794 Intimidator Spot 455Z IRC User Manual Rev. 4 Page 25 of 27... -
Page 26: Returns
3) If you are located in Mexico, contact Chauvet Mexico. 4) If you are located in Benelux, contact Chauvet Europe BVBA. 5) If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com... -
Page 27: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Intimidator Spot 455Z IRC User Manual Rev. 4 Page 27 of 27...
