Zapi AC-2 User Manual page 47

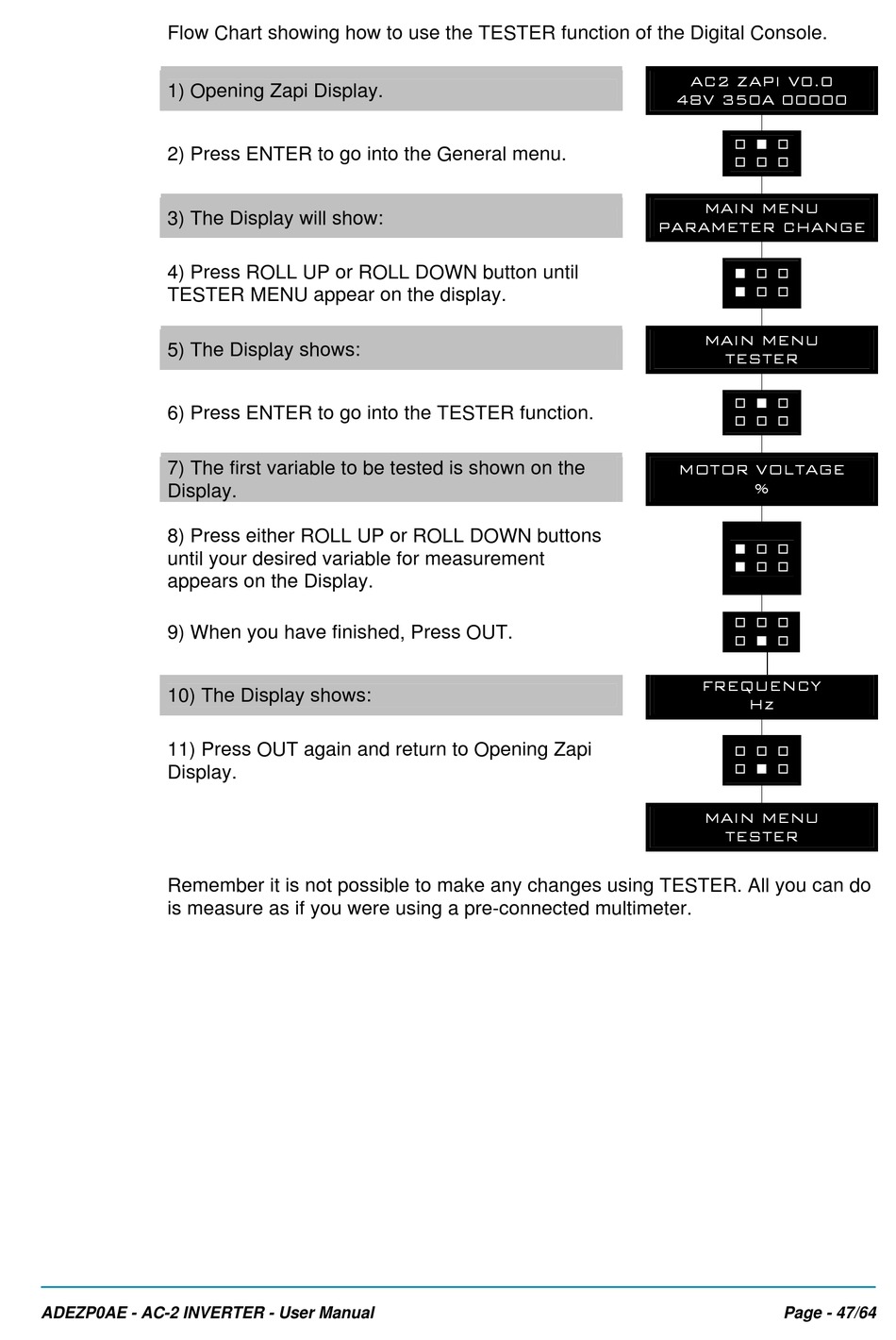

Flow Chart showing how to use the TESTER function of the Digital Console.
1) Opening Zapi Display.
2) Press ENTER to go into the General menu.
3) The Display will show:
4) Press ROLL UP or ROLL DOWN button until
TESTER MENU appear on the display.
5) The Display shows:
6) Press ENTER to go into the TESTER function.
7) The first variable to be tested is shown on the
Display.
8) Press either ROLL UP or ROLL DOWN buttons
until your desired variable for measurement
appears on the Display.
9) When you have finished, Press OUT.
10) The Display shows:
11) Press OUT again and return to Opening Zapi
Display.
Remember it is not possible to make any changes using TESTER. All you can do
is measure as if you were using a pre-connected multimeter.
ADEZP0AE - AC-2 INVERTER - User Manual
AC2 ZAPI V0.0
48V 350A 00000
' % '
' ' '
MAIN MENU
PARAMETER CHANGE
% ' '
% ' '
MAIN MENU
TESTER
' % '
' ' '
MOTOR VOLTAGE
%
% ' '
% ' '
' ' '
' % '
FREQUENCY
Hz
' ' '
' % '
MAIN MENU
TESTER
Page - 47/64
