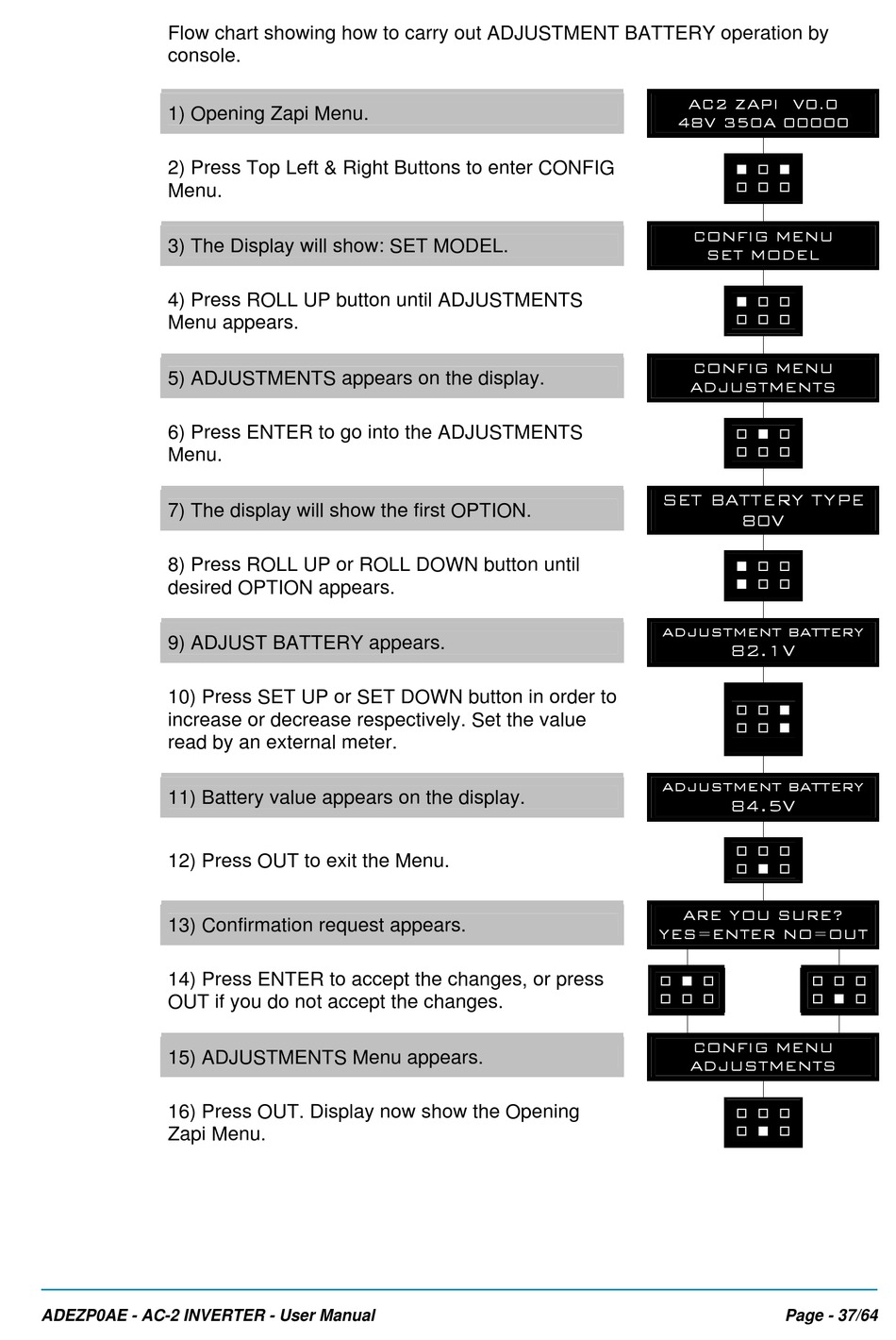

Flow chart showing how to carry out ADJUSTMENT BATTERY operation by
console.
1) Opening Zapi Menu.
2) Press Top Left & Right Buttons to enter CONFIG
Menu.
3) The Display will show: SET MODEL.
4) Press ROLL UP button until ADJUSTMENTS
Menu appears.
5) ADJUSTMENTS appears on the display.
6) Press ENTER to go into the ADJUSTMENTS
Menu.
7) The display will show the first OPTION.
8) Press ROLL UP or ROLL DOWN button until
desired OPTION appears.
9) ADJUST BATTERY appears.
10) Press SET UP or SET DOWN button in order to
increase or decrease respectively. Set the value
read by an external meter.
11) Battery value appears on the display.
12) Press OUT to exit the Menu.
13) Confirmation request appears.
14) Press ENTER to accept the changes, or press
OUT if you do not accept the changes.
15) ADJUSTMENTS Menu appears.
16) Press OUT. Display now show the Opening
Zapi Menu.
ADEZP0AE - AC-2 INVERTER - User Manual
AC2 ZAPI V0.0
48V 350A 00000
% ' %
' ' '
CONFIG MENU
SET MODEL
% ' '
' ' '
CONFIG MENU
ADJUSTMENTS
' % '
' ' '
SET BATTERY TYPE
80V
% ' '
% ' '
ADJUSTMENT BATTERY
82.1V
' ' %
' ' %
ADJUSTMENT BATTERY
84.5V
' ' '
' % '
ARE YOU SURE?
YES=ENTER NO=OUT
' % ' ' ' '
' ' ' ' % '
CONFIG MENU
ADJUSTMENTS
' ' '
' % '
