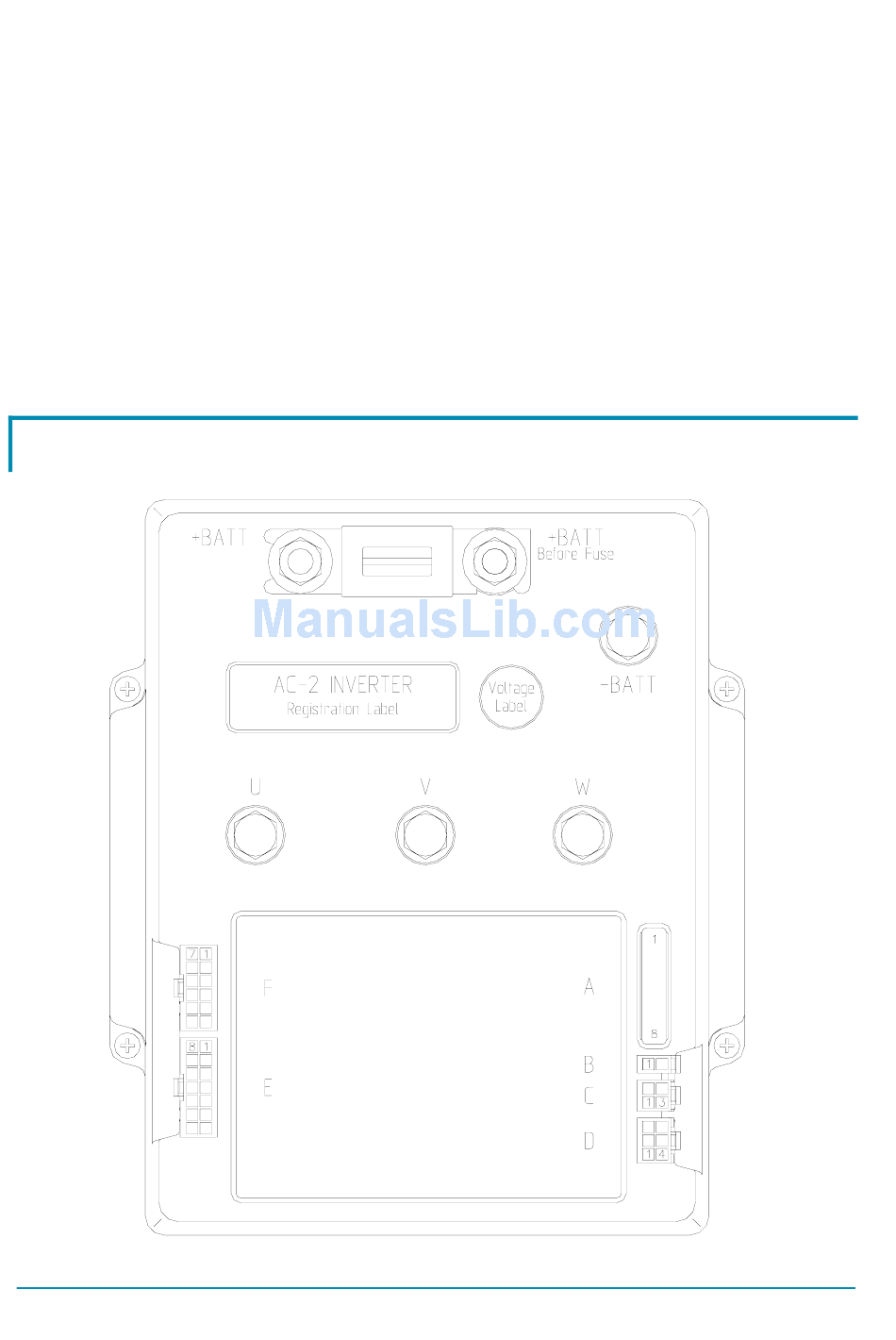

4.5 Description of connectors - Pump configuration
Page - 16/64
input.
PTHERM
Input for motor temperature sensor.
CM
Common of FW / BW / SR / PB / SEAT / INCHING FW
/ INCHING BW / EXCLUSIVE HYDRO / ENABLE
microswitches.
NLC
Negative of main contactor coil.
NBRAKE
Output for driving a brake or an hydraulic steering
contactor coil; it drives the load to -Batt maximum
current: 3 A.
SR/HB
Speed reduction (handbrake) input. Active low (switch
opened). See also OPTION chapter.
GND
-Batt.
NTHERM
-Batt.
ADEZP0AE - AC-2 INVERTER - User Manual
