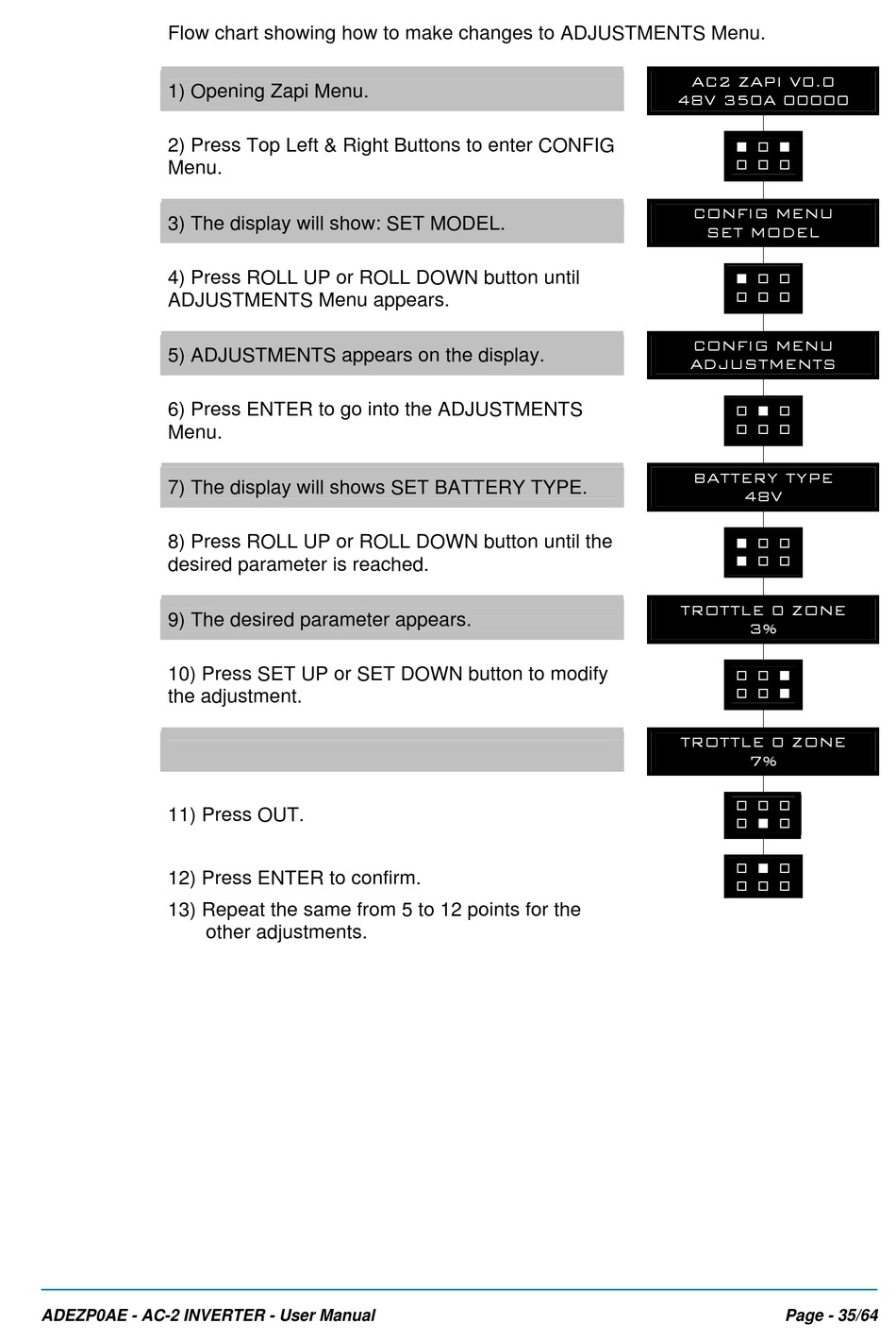

Flow chart showing how to make changes to ADJUSTMENTS Menu.
1) Opening Zapi Menu.
2) Press Top Left & Right Buttons to enter CONFIG
Menu.
3) The display will show: SET MODEL.
4) Press ROLL UP or ROLL DOWN button until
ADJUSTMENTS Menu appears.
5) ADJUSTMENTS appears on the display.
6) Press ENTER to go into the ADJUSTMENTS
Menu.
7) The display will shows SET BATTERY TYPE.
8) Press ROLL UP or ROLL DOWN button until the
desired parameter is reached.
9) The desired parameter appears.
10) Press SET UP or SET DOWN button to modify
the adjustment.
11) Press OUT.
12) Press ENTER to confirm.
13) Repeat the same from 5 to 12 points for the
other adjustments.
ADEZP0AE - AC-2 INVERTER - User Manual
AC2 ZAPI V0.0
48V 350A 00000
% ' %
' ' '
CONFIG MENU
SET MODEL
% ' '
' ' '
CONFIG MENU
ADJUSTMENTS
' % '
' ' '
BATTERY TYPE
48V
% ' '
% ' '
TROTTLE 0 ZONE
3%
' ' %
' ' %
TROTTLE 0 ZONE
7%
' ' '
' % '
' % '
' ' '
