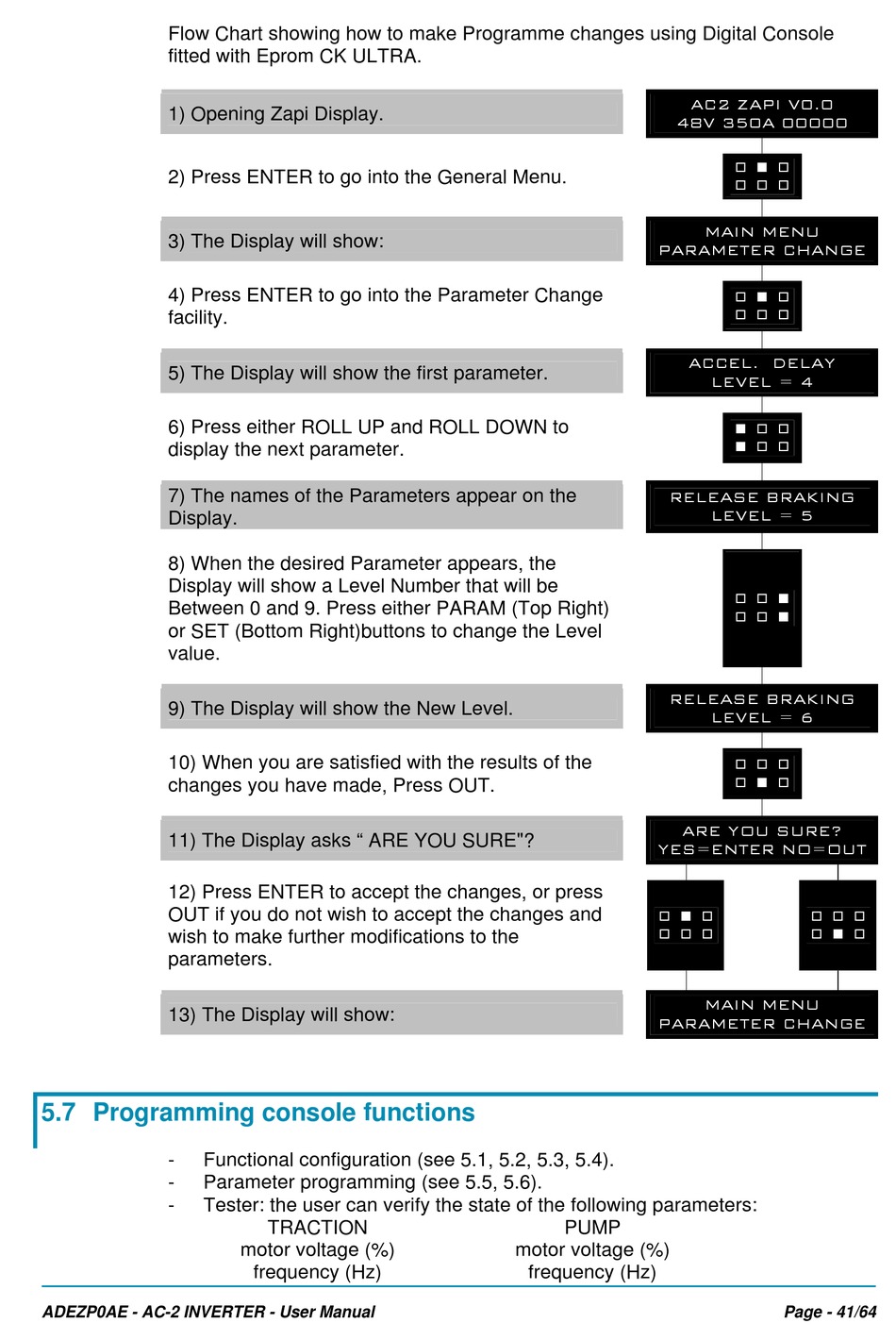

Flow Chart showing how to make Programme changes using Digital Console
fitted with Eprom CK ULTRA.
1) Opening Zapi Display.
2) Press ENTER to go into the General Menu.
3) The Display will show:
4) Press ENTER to go into the Parameter Change
facility.
5) The Display will show the first parameter.
6) Press either ROLL UP and ROLL DOWN to
display the next parameter.
7) The names of the Parameters appear on the
Display.
8) When the desired Parameter appears, the
Display will show a Level Number that will be
Between 0 and 9. Press either PARAM (Top Right)
or SET (Bottom Right)buttons to change the Level
value.
9) The Display will show the New Level.
10) When you are satisfied with the results of the
changes you have made, Press OUT.
11) The Display asks " ARE YOU SURE"?
12) Press ENTER to accept the changes, or press
OUT if you do not wish to accept the changes and
wish to make further modifications to the
parameters.
13) The Display will show:

5.7 Programming console functions

- Functional configuration (see 5.1, 5.2, 5.3, 5.4).
- Parameter programming (see 5.5, 5.6).
- Tester: the user can verify the state of the following parameters:
ADEZP0AE - AC-2 INVERTER - User Manual
TRACTION
motor voltage (%)
frequency (Hz)
48V 350A 00000
PARAMETER CHANGE
RELEASE BRAKING
RELEASE BRAKING
ARE YOU SURE?
YES=ENTER NO=OUT
' % '
' ' '
PARAMETER CHANGE
PUMP
motor voltage (%)
frequency (Hz)
AC2 ZAPI V0.0
' % '
' ' '
MAIN MENU
' % '
' ' '
ACCEL. DELAY
LEVEL = 4
% ' '
% ' '
LEVEL = 5
' ' %
' ' %
LEVEL = 6
' ' '
' % '
' ' '
' % '
MAIN MENU
Page - 41/64
