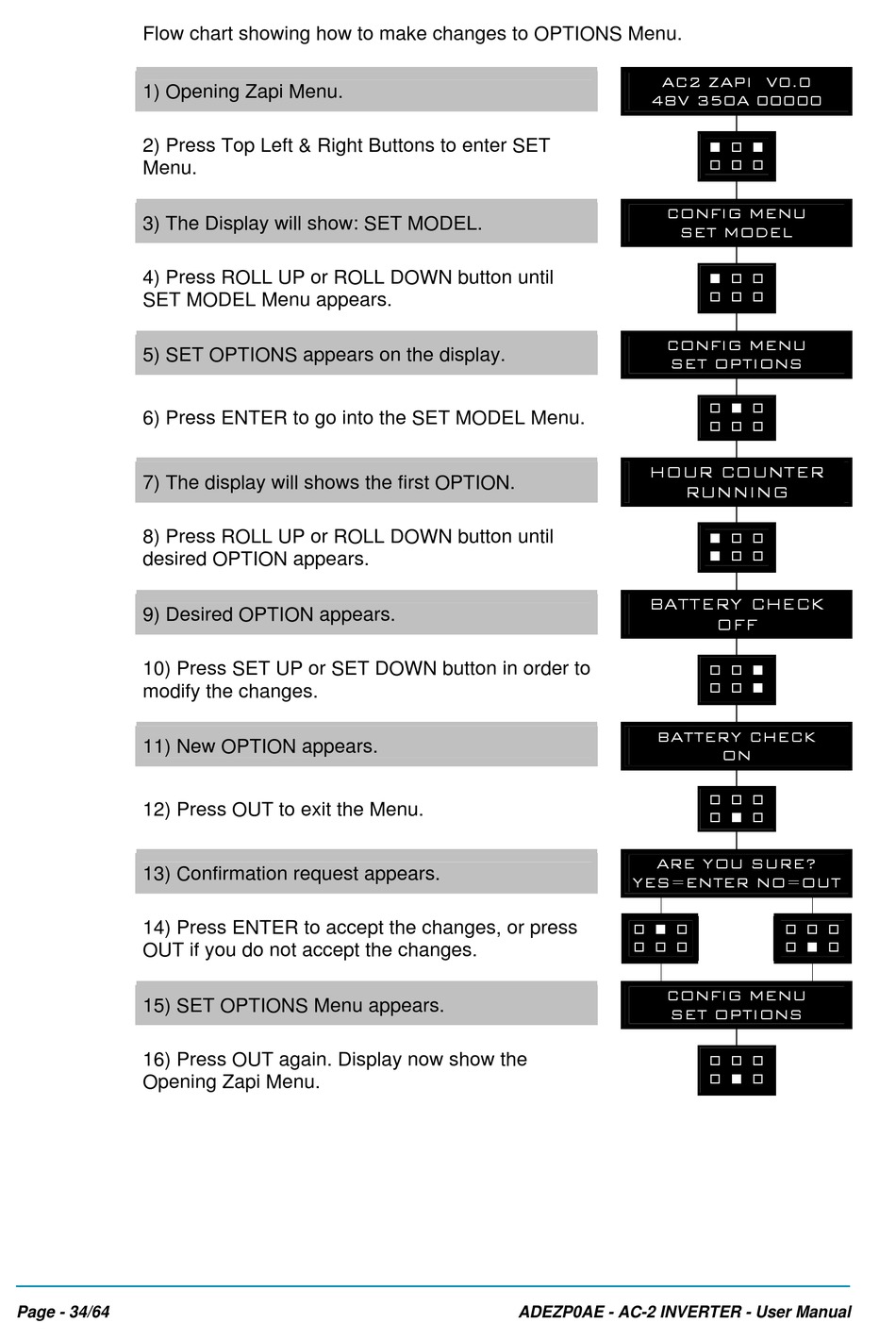

Flow chart showing how to make changes to OPTIONS Menu.
1) Opening Zapi Menu.
2) Press Top Left & Right Buttons to enter SET
Menu.
3) The Display will show: SET MODEL.
4) Press ROLL UP or ROLL DOWN button until
SET MODEL Menu appears.
5) SET OPTIONS appears on the display.
6) Press ENTER to go into the SET MODEL Menu.
7) The display will shows the first OPTION.
8) Press ROLL UP or ROLL DOWN button until
desired OPTION appears.
9) Desired OPTION appears.
10) Press SET UP or SET DOWN button in order to
modify the changes.
11) New OPTION appears.
12) Press OUT to exit the Menu.
13) Confirmation request appears.
14) Press ENTER to accept the changes, or press
OUT if you do not accept the changes.
15) SET OPTIONS Menu appears.
16) Press OUT again. Display now show the
Opening Zapi Menu.
Page - 34/64
AC2 ZAPI V0.0
48V 350A 00000
CONFIG MENU
SET MODEL
CONFIG MENU
SET OPTIONS
HOUR COUNTER
RUNNING
BATTERY CHECK
BATTERY CHECK
ARE YOU SURE?
YES=ENTER NO=OUT
' % '
' ' '
CONFIG MENU
SET OPTIONS
ADEZP0AE - AC-2 INVERTER - User Manual
% ' %
' ' '
% ' '
' ' '
' % '
' ' '
% ' '
% ' '
OFF
' ' %
' ' %
ON
' ' '
' % '
' ' '
' % '
' ' '
' % '
