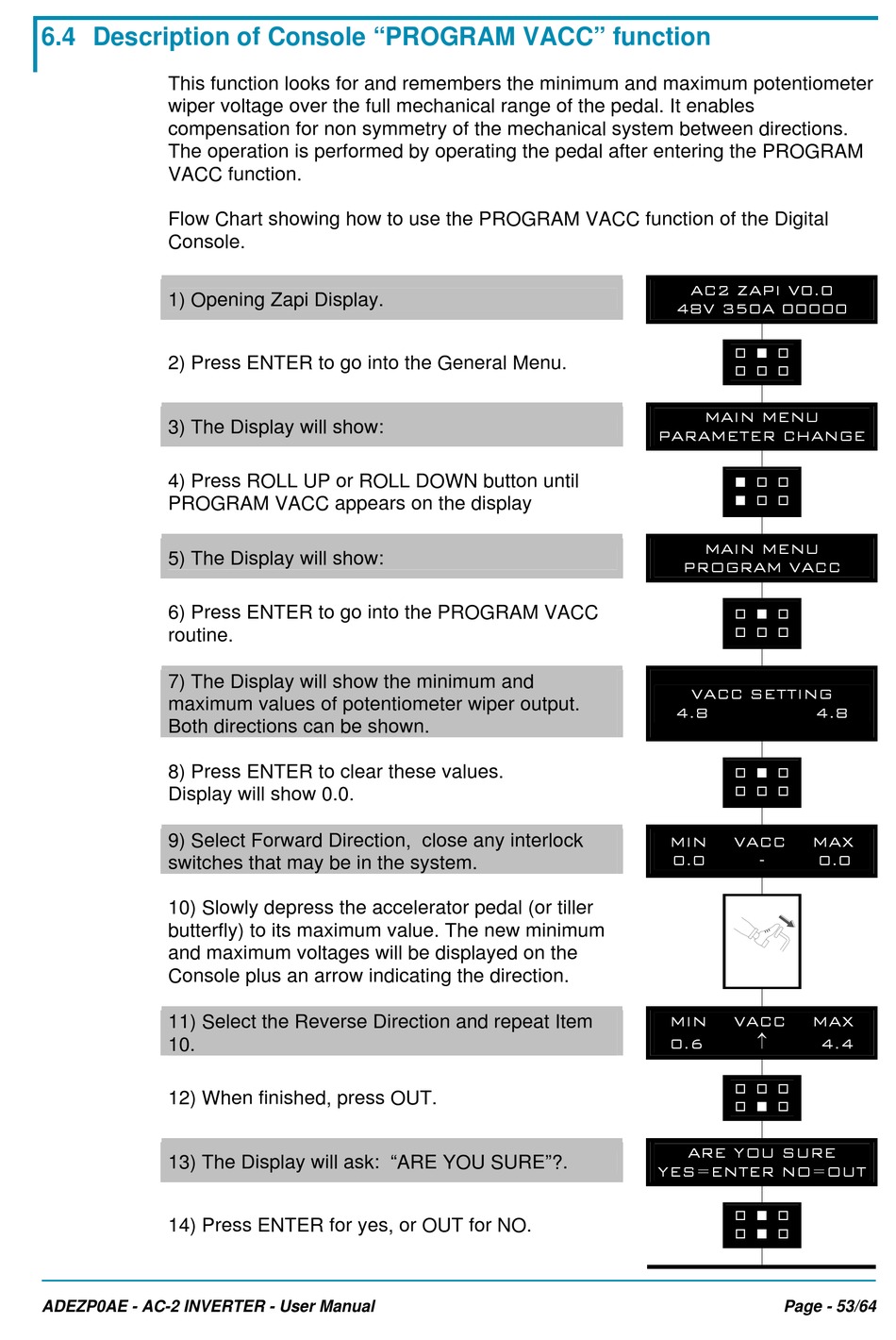

6.4 Description of Console "PROGRAM VACC" function

This function looks for and remembers the minimum and maximum potentiometer
wiper voltage over the full mechanical range of the pedal. It enables
compensation for non symmetry of the mechanical system between directions.
The operation is performed by operating the pedal after entering the PROGRAM
VACC function.
Flow Chart showing how to use the PROGRAM VACC function of the Digital
Console.
1) Opening Zapi Display.
2) Press ENTER to go into the General Menu.
3) The Display will show:
4) Press ROLL UP or ROLL DOWN button until
PROGRAM VACC appears on the display
5) The Display will show:
6) Press ENTER to go into the PROGRAM VACC
routine.
7) The Display will show the minimum and
maximum values of potentiometer wiper output.
Both directions can be shown.
8) Press ENTER to clear these values.
Display will show 0.0.
9) Select Forward Direction, close any interlock
switches that may be in the system.
10) Slowly depress the accelerator pedal (or tiller
butterfly) to its maximum value. The new minimum
and maximum voltages will be displayed on the
Console plus an arrow indicating the direction.
11) Select the Reverse Direction and repeat Item
10.
12) When finished, press OUT.
13) The Display will ask: "ARE YOU SURE"?.
14) Press ENTER for yes, or OUT for NO.
ADEZP0AE - AC-2 INVERTER - User Manual
AC2 ZAPI V0.0
48V 350A 00000
' % '
' ' '
MAIN MENU
PARAMETER CHANGE
% ' '
% ' '
MAIN MENU
PROGRAM VACC
' % '
' ' '
VACC SETTING
4.8 4.8
' % '
' ' '
MIN VACC MAX
0.0 - 0.0
MIN VACC MAX
↑
0.6 4.4
' ' '
' % '
ARE YOU SURE
YES=ENTER NO=OUT
' % '
' % '
Page - 53/64
