Summary of Contents for LifeGear 16062

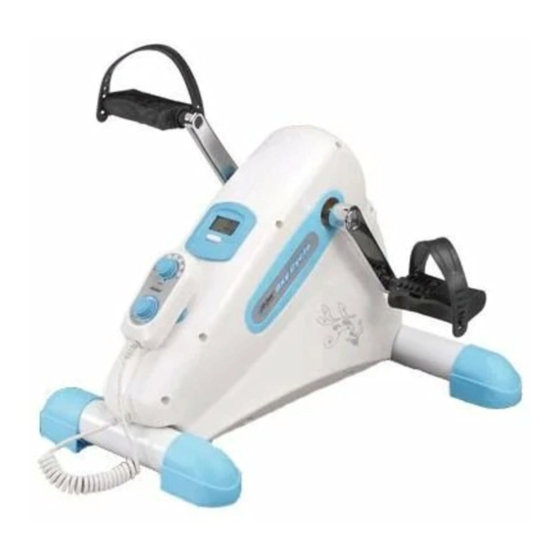

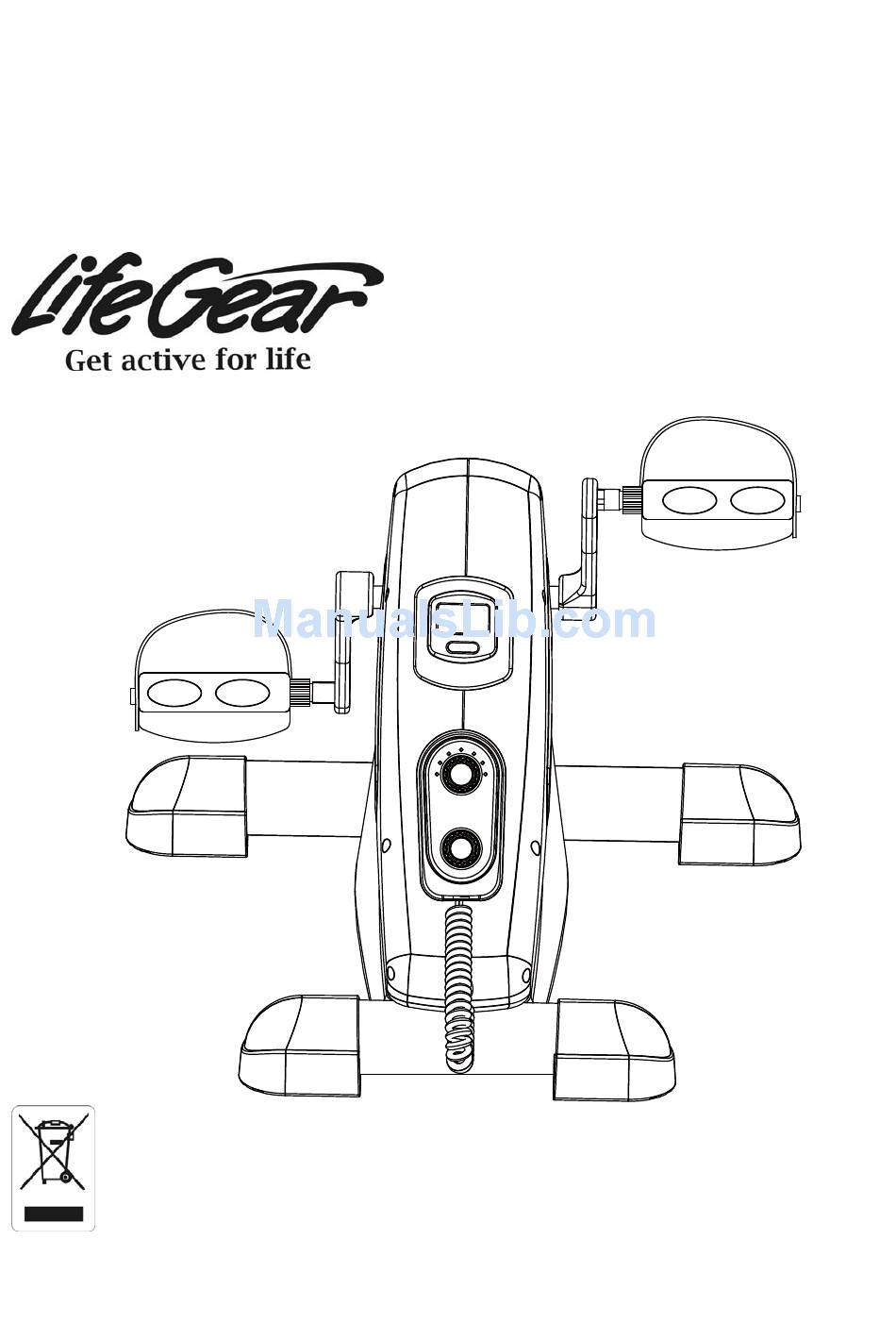

- Page 1 Motorized Oxy Cycle Item No.: 16062 Owner’s Manual The specifications of this product may vary from this photo and are subject to change without notice. 2010, Jan.
-
Page 2: Table Of Contents
EXERCISES----------------------------------------------------------------- -----12 ONE YEAR LIMTED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Read all instructions carefully before operating this product. Retain this owner’s manual and keep all original purchase receipt for future reference. If any part of the cable/wire is stripped or damaged, STOP using the motorized oxy cycle immediately. Please always unplug the motorized oxy cycle from the electrical outlet immediately after using and before cleaning. -
Page 4: Electrical Safety
ELECTRICAL SAFETY When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this unit. DANGER - To reduce the risk of electric shock: WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons: An appliance should never be left unattended when plugged in. -
Page 5: Overview Drawing
OVERVIEW DRAWING... -
Page 6: Parts List
PARTS LIST Part # Description Qty Part # Description Main Frame 1 014 Bolt M8x16mm Rear Stabilizer 1 015R Right Foot Pedal Ø50x1.5tx380 Front Stabilizer 1 015L Left Foot Pedal Ø50x1.5tx220 End Cap for Stabilizer 4 016 AC Power Cable 005R Right Cover 1 017R Right Crank 005L Left Cover... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Hold the unit in an upright position. The Controller (9) side facing up and the AC Power Cable (16) side is on the bottom. Then insert the Front Stabilizer (3) into the Main Frame (1) and align bolt holes. ․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․... - Page 8 Insert the Rear Stabilizer (2) into the Main Frame (1) and align bolt holes. ․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ Attach the Rear Stabilizer (2) to the Main Frame (1) with three M8 Spring Washers (13) and M8x16mm Bolts (14). Tighten bolts with the Allen Wrench with Phillips Screwdriver provided. Tool: Allen Wrench with Phillips Screwdriver Hardware:...
-
Page 9: Folding The Foot Pedals For Storage
Insert the pedal shaft of Left Foot Pedal (15L) into threaded hole in the Left Crank (17L). Turn the pedal shaft by hand in the counterclockwise direction until snug. Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip the threads. -
Page 10: Operating The Digital Display Computer
OPERATING THE DIGITAL DISPLAY COMPUTER COMPUTER BUTTON FUNCTIONS: Push the button to turn on the display. Push the button to select each function. Push the button for 3 seconds to clear all functions to zero except the ODO function. COMPUTER DISPLAY FUNCTIONS & MEASURING RANGE: SCAN: Automatically displays each function every 6 seconds. -
Page 11: Operating The Controller
OPERATING THE CONTROLLER TIME CONTROL KNOB Turn the TIME CONTROL KNOB to setup for the exercise time (5, 10, 15, 20, 25, and 30 minutes). SPEED CONTROL KNOB Turn the SPEED CONTROL KNOB in a clockwise direction to increase speed. Make sure the SPEED CONTROL KNOB is turned to OFF position before plug the power cord into the electrical outlet. -
Page 12: Workout Principal
WORKOUT PRINCIPAL Personal goals includes shaping, strengthening, available time, present fitness level, previous injuries, and cardiovascular. By using this product correctly and on a regular basis, you can achieve your goals. Available time is one of a major element in determining what we do in our daily lives. If you can only exercise for 15 minutes, develop a 15 minute program with the motorized oxy cycle. -
Page 13: Exercises
EXERCISES How to use your Motorized Oxy Cycle. The Motorized Oxy Cycle can only be used after the power cord is plugged into the electrical outlet. Do NOT use the Motorized Oxy Cycle without the power plugged in as this will damage the equipment. When using the Motorized Oxy Cycle, the proper way to exercise is to set the desired exercise time by turning the Time Control Knob on the controller and to set the desired rotational speed of the pedal by turning the Speed Control Knob on the controller, and then following that speed to get the best results. - Page 14 Leg Exercise For use as a lower body device-place the motorized oxy cycle on a non-slip mat prior to use, and sit comfortable in a chair with the motorized oxy cycle directly in front of you such that the knee joint is not flexed less than 90 degrees. It is important that the user wears rubber soled shoes and adjusts the proper length of foot pedal straps when on the foot pedals so they do not slip off the foot pedals during the exercise.
