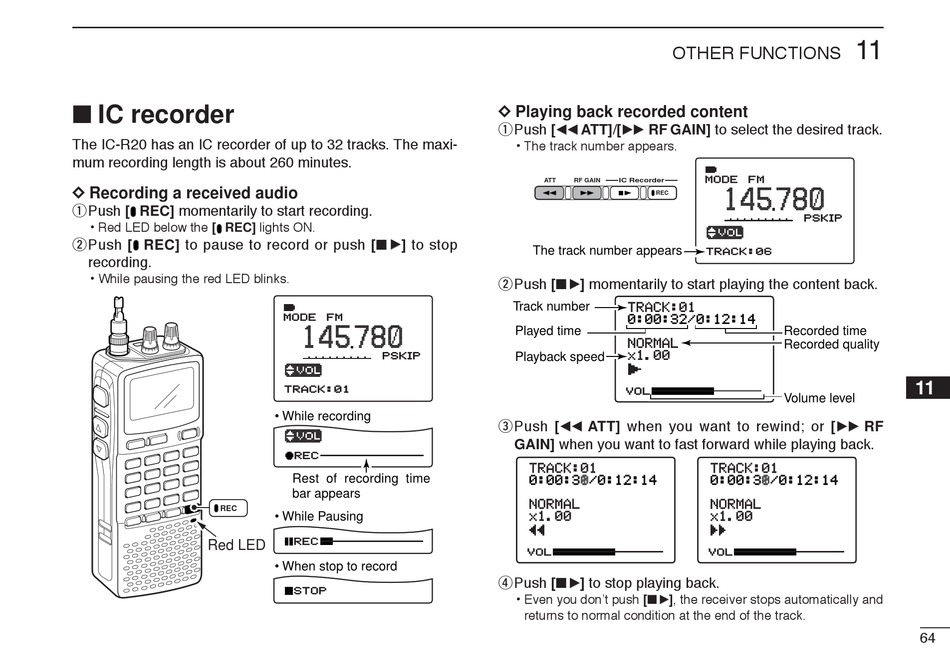

■ IC recorder

The IC-R20 has an IC recorder of up to 32 tracks. The maxi-
mum recording length is about 260 minutes.
D D Recording a received audio
q Push [ REC] momentarily to start recording.
• Red LED below the [ REC] lights ON.
wPush [ REC] to pause to record or push [■
recording.
• While pausing the red LED blinks.
REC
Red LED
] to stop
≈ ≈
TSQL AFC
-DUP
MODE FM ANL
145 780
PSKIP
√
TRACK:01
• While recording
√
REC
Rest of recording time
bar appears
• While Pausing
REC
• When stop to record
STOP
OTHER FUNCTIONS
D D Playing back recorded content
qPush [
RF GAIN] to select the desired track.
Ω Ω Ω Ω ATT]/[ ≈ ≈ ≈ ≈
• The track number appears.
ATT RF GAIN IC Recorder
REC
The track number appears
wPush [■
] momentarily to start playing the content back.
≈ ≈
TRACK:01
Track number
0:00:32/0:12:14
---------------
Played time
NORMAL
x1.00
Playback speed
---------------
VOL
ePush [
ATT] when you want to rewind; or [
Ω Ω Ω Ω
GAIN] when you want to fast forward while playing back.
TRACK:01
0:00:30/0:12:14 8 1
---------------
NORMAL
x1.00
---------------
VOL
rPush [■
] to stop playing back.
≈ ≈
• Even you don't push [■ ], the receiver stops automatically and
≈ ≈
returns to normal condition at the end of the track.
11
-DUP TSQL AFC
MODE FM ANL
145 780
PSKIP
√
TRACK:06
Recorded time
Recorded quality
Volume level
RF
≈ ≈ ≈ ≈
TRACK:01
0:00:30/0:12:14 8 1
---------------
NORMAL
x1.00
---------------
VOL
11
