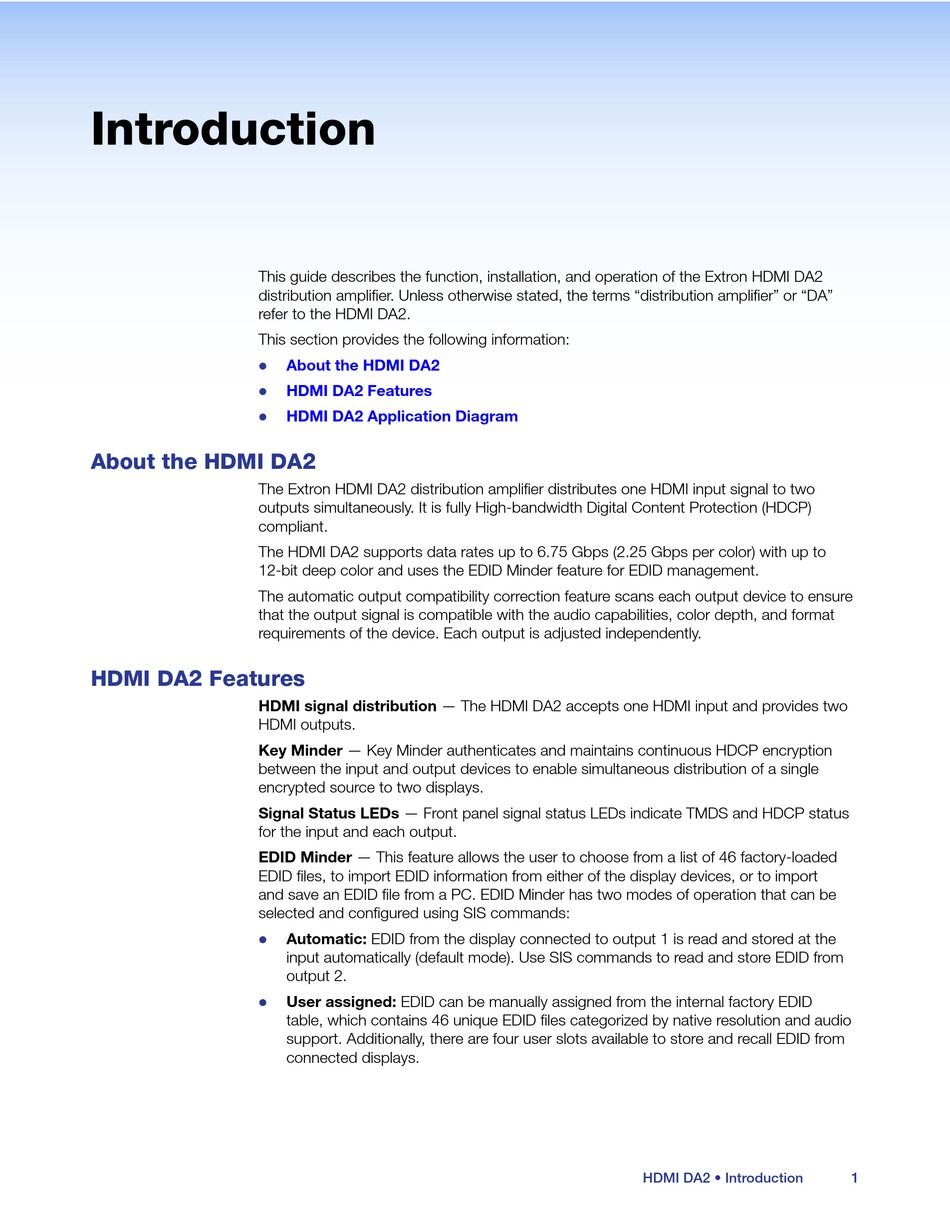

Introduction

This guide describes the function, installation, and operation of the Extron HDMI DA2
distribution amplifier. Unless otherwise stated, the terms "distribution amplifier" or "DA"
refer to the HDMI DA2.
This section provides the following information:
z
z
z

About the HDMI DA2

The Extron HDMI DA2 distribution amplifier distributes one HDMI input signal to two
outputs simultaneously. It is fully High‑bandwidth Digital Content Protection (HDCP)
compliant.
The HDMI DA2 supports data rates up to 6.75 Gbps (2.25 Gbps per color) with up to
12‑bit deep color and uses the EDID Minder feature for EDID management.
The automatic output compatibility correction feature scans each output device to ensure
that the output signal is compatible with the audio capabilities, color depth, and format
requirements of the device. Each output is adjusted independently.

HDMI DA2 Features

HDMI signal distribution — The HDMI DA2 accepts one HDMI input and provides two
HDMI outputs.
Key Minder — Key Minder authenticates and maintains continuous HDCP encryption
between the input and output devices to enable simultaneous distribution of a single
encrypted source to two displays.
Signal Status LEDs — Front panel signal status LEDs indicate TMDS and HDCP status
for the input and each output.
EDID Minder — This feature allows the user to choose from a list of 46 factory‑loaded
EDID files, to import EDID information from either of the display devices, or to import
and save an EDID file from a PC. EDID Minder has two modes of operation that can be
selected and configured using SIS commands:
z
z
About the HDMI DA2
HDMI DA2 Features
HDMI DA2 Application Diagram
Automatic: EDID from the display connected to output 1 is read and stored at the
input automatically (default mode). Use SIS commands to read and store EDID from
output 2.
User assigned: EDID can be manually assigned from the internal factory EDID
table, which contains 46 unique EDID files categorized by native resolution and audio
support. Additionally, there are four user slots available to store and recall EDID from
connected displays.
HDMI DA2 • Introduction 1
