Operation

This section of the manual provides information on:
z
z

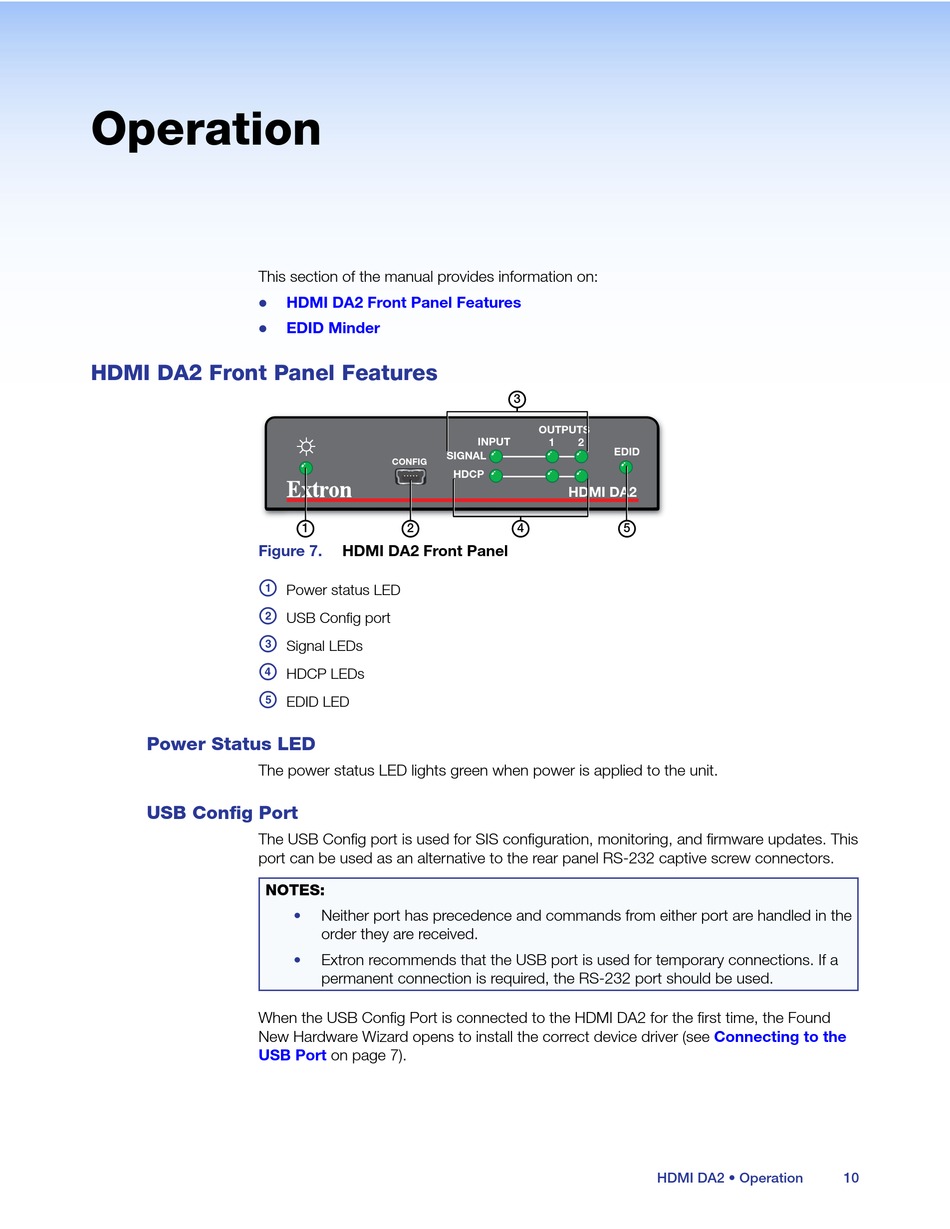

HDMI DA2 Front Panel Features

Figure 7.
a
b
c
d
e

Power Status LED

The power status LED lights green when power is applied to the unit.

USB Config Port

The USB Config port is used for SIS configuration, monitoring, and firmware updates. This
port can be used as an alternative to the rear panel RS‑232 captive screw connectors.
NOTES:
When the USB Config Port is connected to the HDMI DA2 for the first time, the Found
New Hardware Wizard opens to install the correct device driver (see
USB Port
HDMI DA2 Front Panel Features
EDID Minder
SIGNAL
CONFIG
HDCP
1 2
HDMI DA2 Front Panel
Power status LED
USB Config port
Signal LEDs
HDCP LEDs
EDID LED
Neither port has precedence and commands from either port are handled in the
•
order they are received.
Extron recommends that the USB port is used for temporary connections. If a
•
permanent connection is required, the RS‑232 port should be used.
on page 7).
3
OUTPUTS
INPUT
1 2
EDID
HDMI DA2
4 5
Connecting to the
HDMI DA2 • Operation 10
