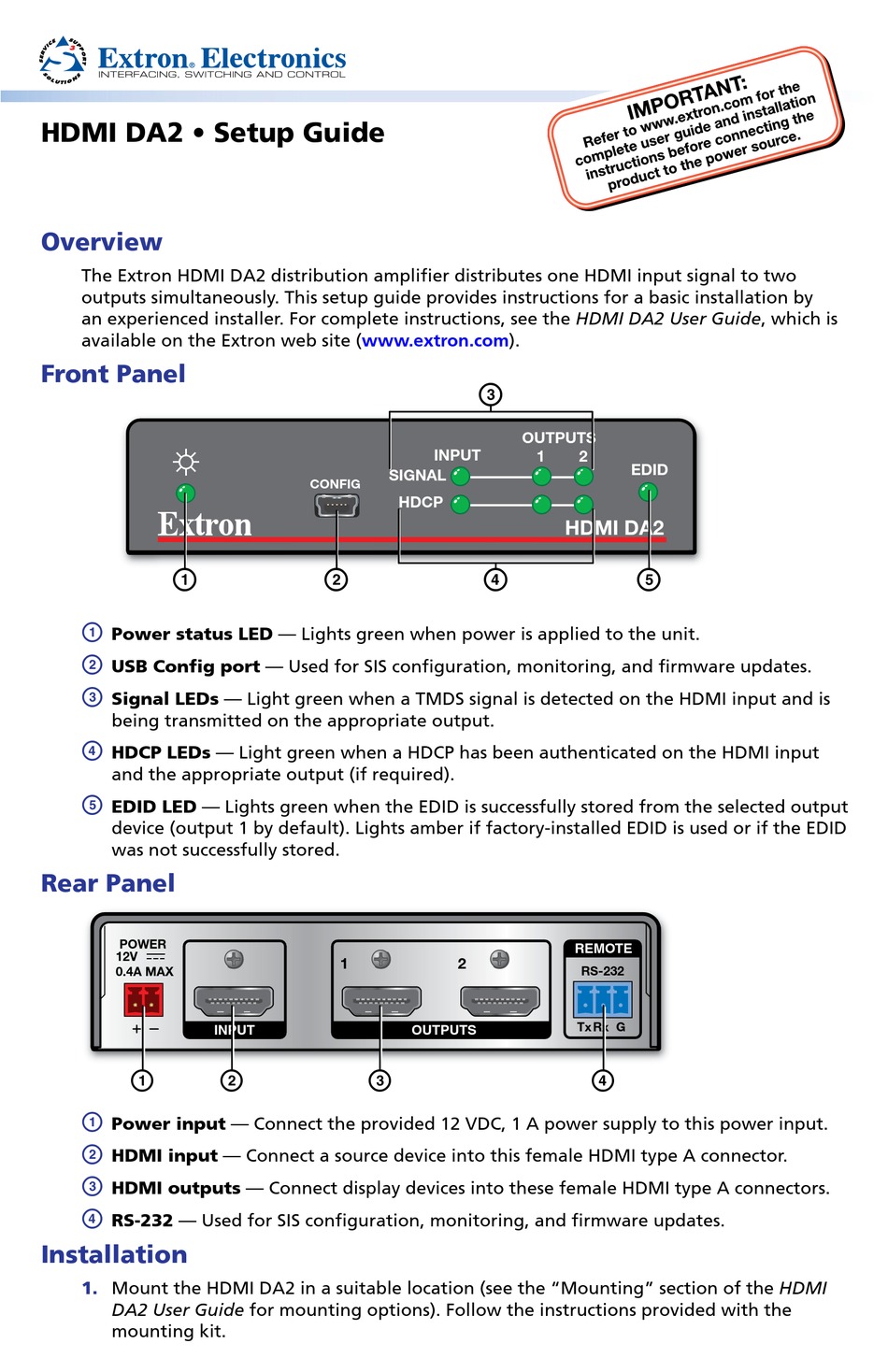

HDMI DA2 • Setup Guide
Overview

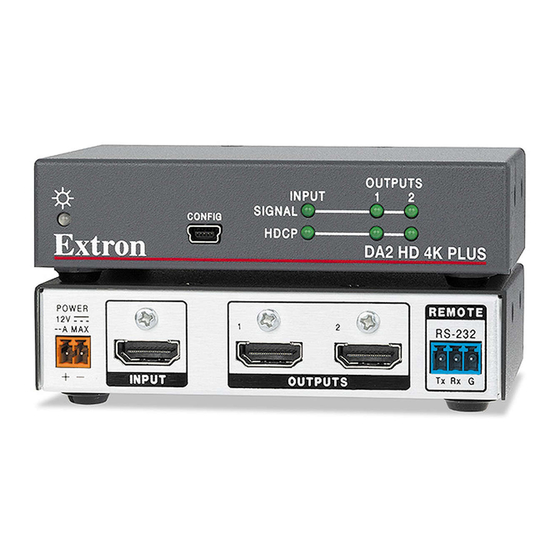

The Extron HDMI DA2 distribution amplifier distributes one HDMI input signal to two
outputs simultaneously. This setup guide provides instructions for a basic installation by
an experienced installer. For complete instructions, see the HDMI DA2 User Guide, which is
available on the Extron web site (www.extron.com).
Front Panel
a
a
Power status LED — Lights green when power is applied to the unit.
b
USB Config port — Used for SIS configuration, monitoring, and firmware updates.
c
Signal LEDs — Light green when a TMDS signal is detected on the HDMI input and is
being transmitted on the appropriate output.
d
HDCP LEDs — Light green when a HDCP has been authenticated on the HDMI input
and the appropriate output (if required).
e
EDID LED — Lights green when the EDID is successfully stored from the selected output
device (output 1 by default). Lights amber if factory-installed EDID is used or if the EDID
was not successfully stored.

Rear Panel

POWER
12V
0.4A MAX
a
a
Power input — Connect the provided 12 VDC, 1 A power supply to this power input.
b
HDMI input — Connect a source device into this female HDMI type A connector.
c
HDMI outputs — Connect display devices into these female HDMI type A connectors.
d
RS-232 — Used for SIS configuration, monitoring, and firmware updates.
Installation
1. Mount the HDMI DA2 in a suitable location (see the "Mounting" section of the HDMI
DA2 User Guide for mounting options). Follow the instructions provided with the
mounting kit.
CONFIG
b
1
INPUT
b c
c
OUTPUTS
INPUT
1
SIGNAL
HDCP
d
2
OUTPUTS
2
EDID
HDMI DA2
e
REMOTE
RS-232
Tx Rx G
d
