Connecting to the USB Port

The mini Type B USB port is located on the HDMI DA2 front panel (
10). It can be used to connect the distribution amplifier to a host computer to update
firmware or for configuration using SIS commands.
1.
2.
Connect a USB A to mini B cable between the USB Config port on the front panel of
the HDMI DA2 and the USB port of the PC.
Mini Type B
SIGNAL
CONFIG
HDCP
HDMI DA2 Front Panel

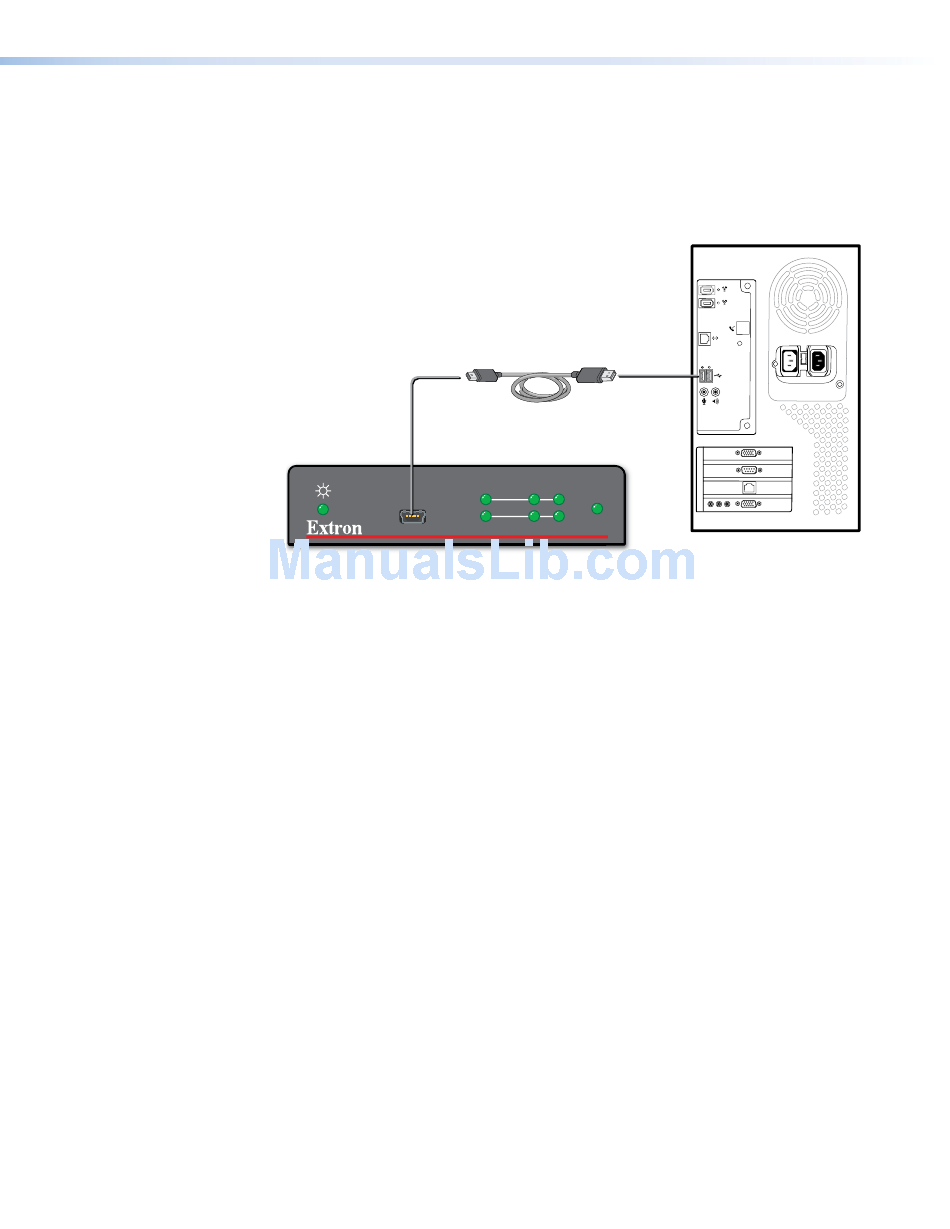

Figure 4. Connecting a PC to the HDMI DA2 Front Panel USB Port
If this is the first time an HDMI DA2 has been connected to the PC, the Found New
Hardware Wizard opens. The first screen offers to connect to Windows Update to
search the web for the appropriate driver needed for the USB port to communicate
with the distribution amplifier. This is not necessary if the USB driver is already on your
PC.
Type A
USB USB
USB Cable
OUTPUTS
INPUT 1 2
EDID
HDMI DA2
b
in figure 7 on page
USB 1
USB
Ports
Computer
HDMI DA2 • Installation 7
