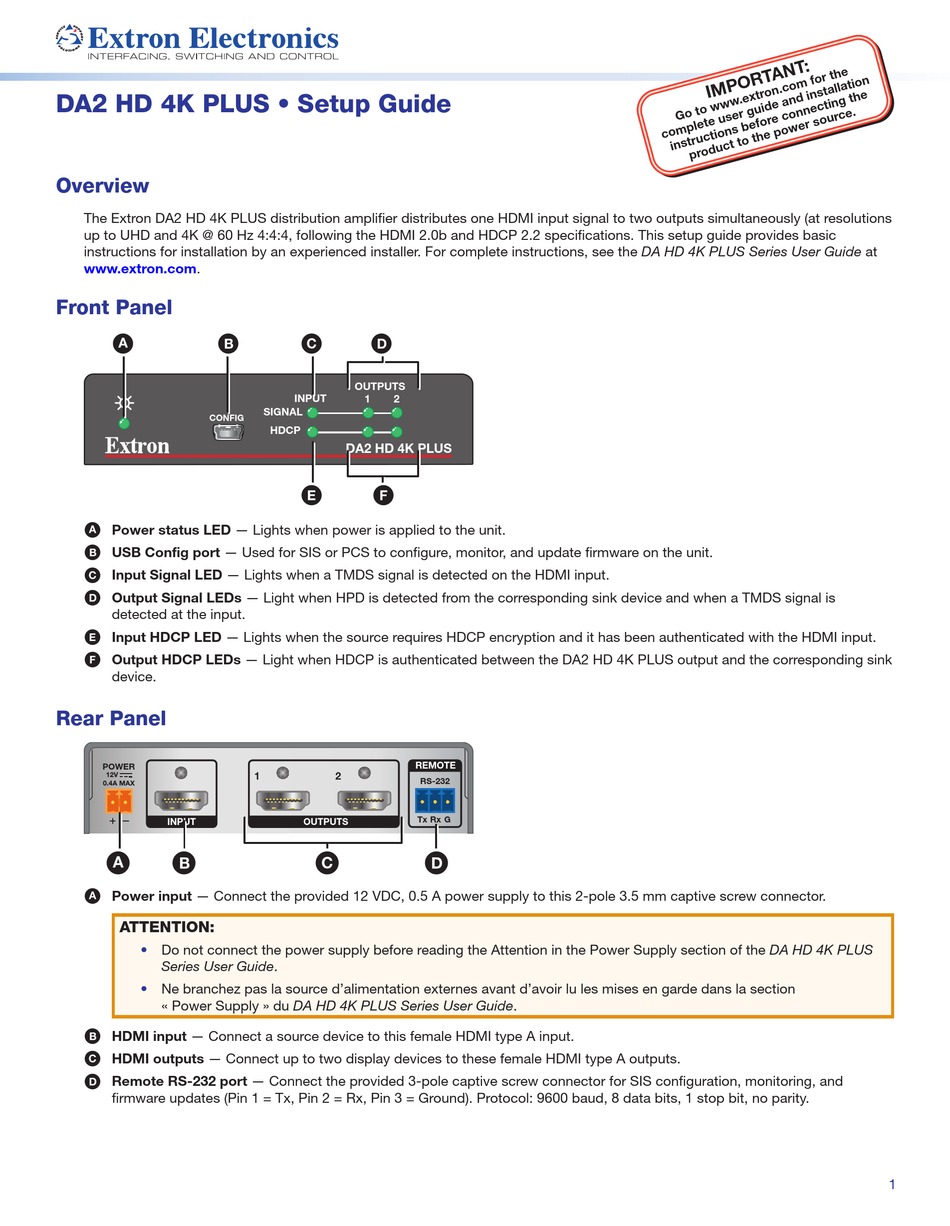

DA2 HD 4K PLUS • Setup Guide
Overview

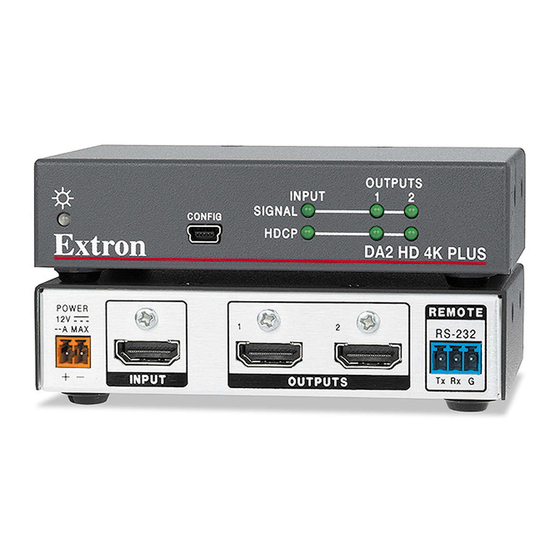

The Extron DA2 HD 4K PLUS distribution amplifier distributes one HDMI input signal to two outputs simultaneously (at resolutions
up to UHD and 4K @ 60 Hz 4:4:4, following the HDMI 2.0b and HDCP 2.2 specifications. This setup guide provides basic
instructions for installation by an experienced installer. For complete instructions, see the DA HD 4K PLUS Series User Guide at
www.extron.com.
Front Panel
A A
B B
CONFIG
Power status LED — Lights when power is applied to the unit.
A
USB Config port — Used for SIS or PCS to configure, monitor, and update firmware on the unit.
B
Input Signal LED — Lights when a TMDS signal is detected on the HDMI input.
C
Output Signal LEDs — Light when HPD is detected from the corresponding sink device and when a TMDS signal is
D
detected at the input.
Input HDCP LED — Lights when the source requires HDCP encryption and it has been authenticated with the HDMI input.
E
Output HDCP LEDs — Light when HDCP is authenticated between the DA2 HD 4K PLUS output and the corresponding sink
F
device.
Rear Panel
POWER
12V
0.4A MAX
INPUT
A A
B B
Power input — Connect the provided 12 VDC, 0.5 A power supply to this 2-pole 3.5 mm captive screw connector.
A
ATTENTION:
•
Do not connect the power supply before reading the Attention in the Power Supply section of the DA HD 4K PLUS
Series User Guide.
•
Ne branchez pas la source d'alimentation externes avant d'avoir lu les mises en garde dans la section
« Power Supply » du DA HD 4K PLUS Series User Guide.
HDMI input — Connect a source device to this female HDMI type A input.
B
HDMI outputs — Connect up to two display devices to these female HDMI type A outputs.
C
Remote RS-232 port — Connect the provided 3-pole captive screw connector for SIS configuration, monitoring, and
D
firmware updates (Pin 1 = Tx, Pin 2 = Rx, Pin 3 = Ground). Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity.
C C
D D
OUTPUTS
INPUT
1
2
SIGNAL
HDCP
DA2 HD 4K PLUS
E E
F F
REMOTE
1
2
RS-232
Tx Rx G
OUTPUTS
C C
D D
1
