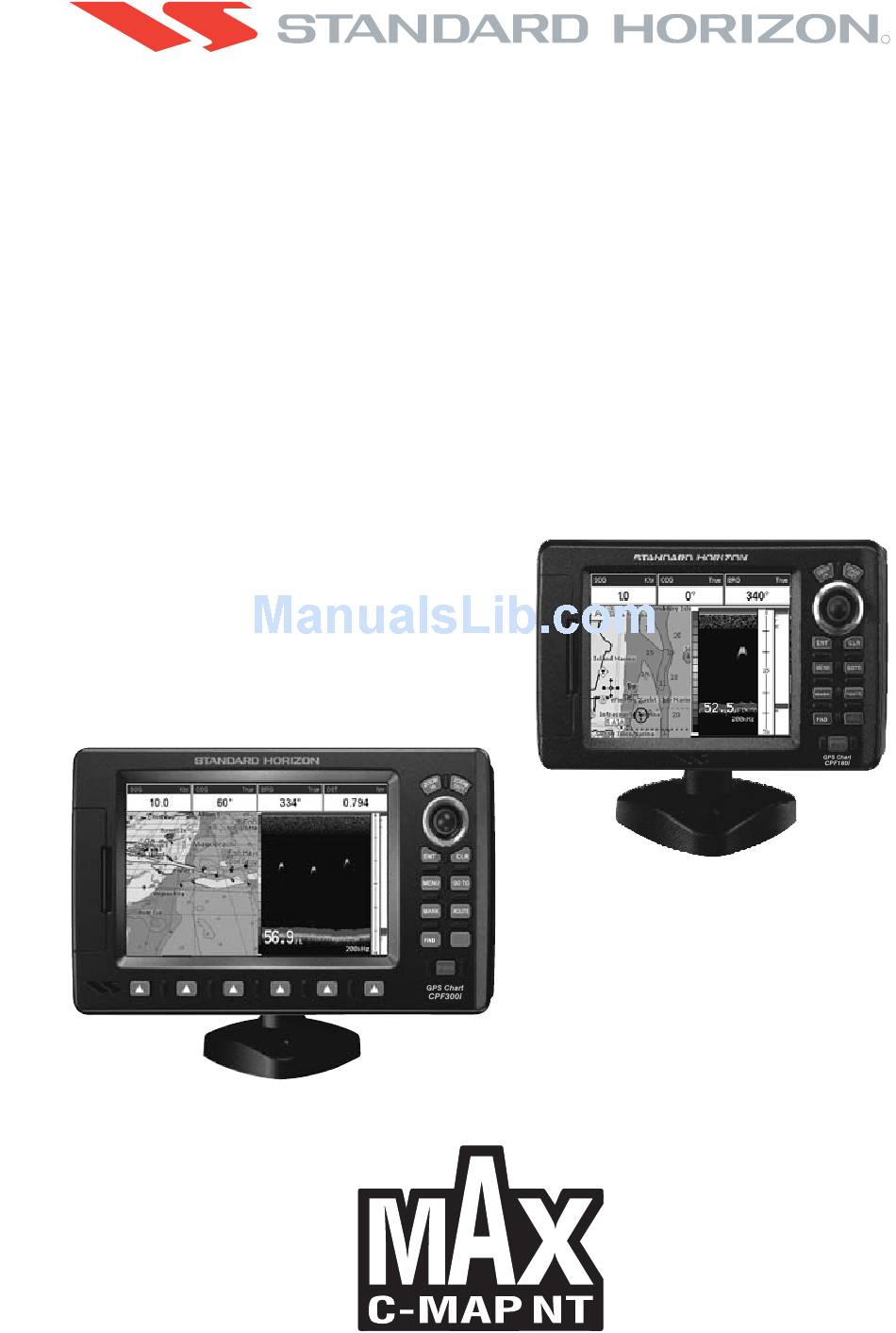

Color GPS Chart Plotters/Fish Finder
CPF180i
CPF300i
Owner's Manual
CPF180i
CPF300i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPF180i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Standard Horizon CPF180i

Summary of Contents for Standard Horizon CPF180i

  • Page 1 Color GPS Chart Plotters/Fish Finder CPF180i CPF300i Owner's Manual CPF180i CPF300i...
  • Page 2 WARNING!!! Electronic charts displayed by the GPS Chart Plotter are believed to be accurate and reliable, but are not intended to be a substitute for the official charts, which should remain your main reference for all matters related to the execution of safe navigation.
  • Page 3 - The GPS Chart Plotter contains dangerous high voltage circuits which only experienced technicians can handle. - STANDARD HORIZON will not be liable for errors contained herein, or for incidental or consequential damages in connection with the performance or use of this material.
  • Page 4 Page CPF180i and CPF300i...

  • Page 5: Table Of Contents

    FLUSH MOUNTING ....................18 MOUNTING THE OPTIONAL EXTERNAL GPS ANTENNA ......... 19 2.3.0 Flush mounting the antenna ..............20 CONNECTIONS ..................... 21 2.4.0 Connection Table For CPF180i ..............21 2.4.1 Connection For CPF180i ................22 2.4.2 Connection Table For CPF300i ..............23 2.4.3 Connection For CPF300i ................
  • Page 6 CREATING AN OLYMPIC ROUTE ................ 72 MAKING ADDITIONAL ROUTES ................73 CREATING A ROUTE USING MARKS ON THE CHART PAGE ......73 INSERTING A WAYPOINT INTO A ROUTE ............73 GOTO A ROUTE ....................74 9.6.0 By select Route ..................74 Page CPF180i and CPF300i...
  • Page 7 12.9.1 DSC Distress Call ..................101 12.9.2 Position Request ..................101 13. ADVANCED SETTINGS ....................103 13.0 INPUT/OUTPUT (NMEA) ..................103 13.1 NAVIGATE ....................103 13.1.0 Loran TD ....................104 13.2 COMPASS ....................104 13.3 ALARMS ....................104 CPF180i and CPF300i Page 9...
  • Page 8 17.4 FISH FINDER SETUP MENU ................128 17.5 PRESETS ....................128 17.6 FREQUENCY ....................129 17.7 GAIN MODE ....................129 17.7.0 Auto Mode ....................130 17.7.1 Manual Mode ................... 130 17.8 RANGE MENU ....................130 17.8.0 Range Mode ..................... 130 Page 10 CPF180i and CPF300i...
  • Page 9 19.0.2 Cartridges ....................142 19.0.3 Serial Ports ....................142 20. SPECIFICATIONS ....................143 20.0 CPF180i SPECIFICATIONS ................. 143 20.1 CPF300i SPECIFICATIONS ................. 144 20.2 FF MODULE SPECIFICATIONS ................145 20.3 OPTIONAL WAAS GPS RECEIVER SPECIFICATIONS ........145 21. APPENDIX: TERMS ....................
  • Page 10 Page 12 CPF180i and CPF300i...

  • Page 11: Introduction

    Ideal for nautical use and sealed against water ingress. The CPF180i and CPF300i are housed in a rugged, impact-resistant case with outstanding ergonomic design, for effortless operation.

  • Page 12: Packing List

    When the package containing the GPS Chart Plotter is first opened, please check for the following contents. If any parts are missing contact the dealer this GPS Chart Plotter was purchased from. Accessories and replacement parts may be ordered from STANDARD HORIZON’s Parts Department at (800)767-2450 ext 6800 or e-mail at yaesuparts@vxstdusa.com. 1.1.0...

  • Page 13: Optional Accessories

    4kW 36 Mile 23.5” diameter Radome antenna MDS-10-4 4kW 48 Mile 4FT Open Array MDS-10-5 4kW 48 Mile 5FT Open Array NOTE For additional information, refer to the Radar Installation and Radar Operation Manuals located at www.standardhorizon.com. CPF180i and CPF300i Page 15...
  • Page 14 Page 16 CPF180i and CPF300i...

  • Page 15: Installation

    The CPF180i and CPF300i are designed to be bracket and flush mounted. However when bracket mounting the CPF180i and CPF300i in an area where satellite reception is not possible with the internal antenna or being flush mounted, the optional GPS antenna must be installed.

  • Page 16: Flush Mounting

    Figure 2.1 - Example of Bracket installation (CPF180i on the left side and CPF300i on the right side) FLUSH MOUNTING The CPF180i and CPF300i are supplied with a flush mount template for the cutout hole and screw holes required to install the GPS Chart Plotter.

  • Page 17: Mounting The Optional External Gps Antenna

    Figure 2.2a - Example of Flush installation CPF300i MOUNTING THE OPTIONAL EXTERNAL GPS ANTENNA An external WAAS GPS antenna is available when the CPF180i or CPF300i is flush mounted or mounted in an area where satellite reception is not possible with the internal antenna.This antenna is designed to be mounted on a base, installed on an extension or...

  • Page 18: Flush Mounting The Antenna

    In some cases the screw may not be long enough, if this happens simply apply more RTV to the underside of the antenna to glue it into place. Figure 2.3.0 - Installing the External GPS antenna (I) Page 20 CPF180i and CPF300i...

  • Page 19: Connections

    Black/Yellow Battery Ground CONNECTIONS The CPF180i and CPF300i have connector that allow them to be connected to a power supply, optional WAAS GPS antenna, NMEA Devices such as Optional Video Camera (CPF300i only) VHF’s, AIS Receiver, Digital Instruments, Autopilots. NOTE The GPS Chart Plotter can send many sentences to external NMEA devices.

  • Page 20: Connection For Cpf180I

    Instrument). If the Autopilot connections are made to Port3 (Yellow wire) and the Autopilot is not reading the sentences, change the connections to Port1 (Brown) and change the sentences to APA, APB, BOD, GGA, GLL, RMC and XTE. 2.4.1 Connection For CPF180i 2.4.1.1 DC Power Connection Optional WAAS GPS ntenna...

  • Page 21: Connection Table For Cpf300I

    The CPF180i has to be setup to be able to receive NMEA information from the AIS receiver. When AIS 38400 is selected the Output Port is disabled. 1. Press [MENU], move the ShuttlePoint knob to highlight SETUP MENU and press [ENT].

  • Page 22: Battery Connections

    The GPS Chart Plotter can be connected to external devices with NMEA and display information, examples: · DSC VHF Radio · Depth Sounder, Speed Log, Wind Instrument, Autopilot etc. · Radar (USA O · Personal Computer Page 24 CPF180i and CPF300i...

  • Page 23: Gps Position On A Vhf Radio

    STANDARD HORIZON has taken this feature one step further, if the GPS Chart Plotters are connected to a STANDARD HORIZON DSC capable VHF, the vessel in Distress or the polled position of the vessel is shown on the display of the GPS Chart Plotter, making it easy to navigate to the location of the vessel.

  • Page 24: Nmea Data Page

    4. Connect the Blue Wire on the GPS Chart Plotter to the junction of the Brown wire and the VHF wire. The display should look similar to the following picture. Figure 2.10 - NMEA Data page Page 26 CPF180i and CPF300i...

  • Page 25: Cpf300I Video Input

    A VCR or DVD may be connected to Video port. The CPF300i does not have speakers so the audio from the VCR or DVD would have to be routed to a stereo system. STANDARD HORIZON offers an optional cable called ACVC10 that allows any VCR or DVD to simply be plugged into the CPF300i.

  • Page 26: Demo Mode (For Dealer Use)

    10 seconds. The pages are shown in the following order: The pages are shown in the following order: Start-up screen, GPS Status page, Chart/Compass tape page, Chart/Fish Finder page, Fish Finder Full page, Radar page, Navigation page, Highway Page, Celestial page, NMEA Display page. Page 28 CPF180i and CPF300i...
  • Page 27 NOTE This mode is use by selling dealers to promote the features of the CPF180i or CPF300i when on a retail shelf. The Demo mode can be selected from the Simulation Menu following the procedure: 1. Press [MENU]. Move the ShuttlePoint knob to highlight SETUP MENU and press [ENT].
  • Page 28 Page 30 CPF180i and CPF300i...

  • Page 29: Controls And Indicators

    Started and Advanced Settings sections of this Owner's Manual. CONTROLS AND CONNECTIONS The CPF180i or CPF300i is controlled by using the keys located on the front panel. These labelled keys are dedicated to specific functions. As you press a key, a single audio beep confirms the key action;...

  • Page 30: The Cpf300I Soft Keys

    [PWR] until the display turns Off. 2. When the power is first turned on two pages the start-up page (see the following picture) and the Caution page are briefly shown before the GPS Status page. Page 32 CPF180i and CPF300i...

  • Page 31: Cursor Vs. Home Mode

    In this mode your can also measure distance and bearings from your current position. Home mode When the ships icon is shown on the Chart page (cursor is not shown) you are in Home CPF180i and CPF300i Page 33...

  • Page 32: Cursor And Menu Selection Speed

    To change from Cursor mode to Home mode press [CLR]. 3.1.2 Cursor and Menu selection speed The CPF180i and CPF300i allow you to control the speed the Cursor moves when the ShuttlePoint knob is pressed. To change the speed: Figure 3.1.2 - Cursor Speed menu 1.

  • Page 33: Changing The Backlight And Contrast

    3.1.4 Changing the backlight and contrast With the CPF180i and CPF300i turned On, briefly press [PWR] to show the backlight and contrast popup window. Move the ShuttlePoint knob to the left or right to adjust the LCD backlight intensity or up or down to change the LCD contrast. Press [ENT] to set.

  • Page 34: Automatic Time

    3. Move the ShuttlePoint knob to highlight TIME SETUP and press [ENT] or move the ShuttlePoint knob to the right. 4. Move the ShuttlePoint knob to highlight TIME ZONE and press [ENT] or move the ShuttlePoint knob to the right. Page 36 CPF180i and CPF300i...

  • Page 35: Selecting Loran Td Or Other Coordinate System

    Example Y/Z change to Z/Y. CHANGING THE CHART COLOR The CPF180i and CPF300i have preprogrammed settings allowing you to customize the look of the Chart page. The default is “Normal” however there are other settings; Normal, Classic and Night. Night is very useful during evening hours so not to impair night vision.

  • Page 36: Selecting Language

    Point knob to the desired language and press [ENT] or move the ShuttlePoint knob to the right. 5. Press [CLR] or move the ShuttlePoint knob to the left to exit the menu and show the Chart page. Page 38 CPF180i and CPF300i...

  • Page 37: Selecting Pages Using Soft Keys On Cpf300I

    NMEA DISPLAY Display example with RADAR connected Chart 200KHz WAAS Figure 3.6 - Screen display pages CUSTOMIZING THE SOFT KEYS ON CPF300i The Soft Keys (CPF300i) can be individually customized from the default pages (discussed CPF180i and CPF300i Page 39...

  • Page 38: Other Settings In General Setup Menu

    Classic uses vivid chart colors presentation. NOAA allows setting NOAA paper chart colors presentation. Night is recommended when the environment is dark in order to reduce the glare of the display. The GPS Chart Plotter displays maps and screen in Page 40 CPF180i and CPF300i...

  • Page 39: Information Page

    ShuttlePoint knob to the right. 3. The Information page appears on the screen (see the previous Figure). 4. Press [CLR] or move the ShuttlePoint knob to the left to exit and show the Chart page. CPF180i and CPF300i Page 41...
  • Page 40 Page 42 CPF180i and CPF300i...

  • Page 41: Find Services

    FIND SERVICES USING FIND SERVICES & MORE FUNCTIONS The CPF180i and CPF300i have a dedicated [FIND] key that allows searching the optional C-MAP B /MAX C-CARD for Port Services, Ports, Tide Stations, Wrecks, EPPESEN Obstructions, Points Of Interest, Lakes, User Points, GPS Coordinates or Information on any point on the Chart.

  • Page 42: Port

    2. Move the ShuttlePoint knob to highlight TIDE STATIONS and press [ENT] or move the ShuttlePoint knob to the right. 3. A popup window will be shown with a list of nearest Tide Stations. 4. Move the ShuttlePoint knob to highlight the desired Tide Station and press [ENT]. Page 44 CPF180i and CPF300i...

  • Page 43: Wrecks

    ICON DESCRIPTION non-dangerous wreck dangerous wreck distributed remains of wreck F o u l wreck showing mast/masts Masts wreck showing any portion of hull or superstructure Figure 4.0.3 - Wreck icons Table CPF180i and CPF300i Page 45...

  • Page 44: Obstructions

    5. Another window will be shown detailing the Obstruction information. 6. Press [CLR] to show the actual position of the Obstruction on the Chart page. 7. Press [CLR] again at any time to return your cursor to your vessels position. Page 46 CPF180i and CPF300i...

  • Page 45: Lakes Information

    4.0.5.0 Quick Info On Lakes Upon viewing the chart of a lake, you can click on the Lake Info icon to query the available information immediately displayed with many details. For example, see the following picture: CPF180i and CPF300i Page 47...
  • Page 46 The following is an example of Full Info on Lakes: Figure 4.0.5.1 - Example of Full Info page To see the "Fishing" object press [MENU] (when the "Fishing" object is highlighted). On the screen appears: Page 48 CPF180i and CPF300i...

  • Page 47: Lakes By Name

    6. Move the ShuttlePoint knob to highlight the desired Type and press [ENT]. 7. A popup window will be shown with a list of nearest Points Of Interest that fall into the Category and Type you have selected. CPF180i and CPF300i Page 49...

  • Page 48: User Points

    6. Press [CLR] at any time to return your cursor to your vessels position. WAAS 3D INFORM Figure 4.0.8 - Find User Points (Marks and Waypoints) 4.0.9 Coordinates This feature allows you to enter Coordinates (Latitude/Longitude) and view the entered position on the Chart page. Page 50 CPF180i and CPF300i...

  • Page 49: Information

    ShuttlePoint knob through the Info Tree, all the relevant information of the selected object is shown on the lower part of the page. 4. Press [CLR] again at any time to return your cursor to your vessels position. Figure 4.0.10 - Find Information CPF180i and CPF300i Page 51...
  • Page 50 Page 52 CPF180i and CPF300i...

  • Page 51: Max Cartography Overview

    · Depths & Land Elevation (color shading of sea depth and land altitude for improved chart appearance) · Bathymetric & Spot Soundings (Data Base with depth and bathy information for an extraordinary view of the seabed depth) CPF180i and CPF300i Page 53...
  • Page 52 MAX data cover different areas, the GPS Chart Plotter receives data from both charts (depending on the current position). · When NT data and MAX data cover the same area, the GPS Chart Plotter receives data only from MAX chart. Page 54 CPF180i and CPF300i...

  • Page 53: Map Functions

    [ZOOM IN]/[ZOOM OUT] push (press and hold) causes an expansion or compression of the chart image, without a chart level change. CHART: US,NOS,GRAPH,11428D SCALE: 1:40000 CHART: US,NOS,GRAPH,11428D SCALE: 1:40000 CHART: US,NOS,GRAPH,11474 SCALE: 1:80000 Figure 6.0.0 - Zoom Type on CPF300i CPF180i and CPF300i Page 55...

  • Page 54: Place Names Size

    As the upper side of the map is more compressed than the lower side, a wider map area is visible, so it allows showing more chart information immediately ahead and around the cursor. Page 56 CPF180i and CPF300i...

  • Page 55: Dynamic Nav-Aids

    Any warning or alarm condition is identified by the red color to indicate possible risk. To activate this function follow the procedure: 1. Press [MENU]. Move the ShuttlePoint knob to highlight SETUP MENU and press [ENT]. CPF180i and CPF300i Page 57...

  • Page 56: Satellite Imagery

    Figure 6.0.4 - Safety Status Bar 6.0.5 Satellite Imagery This function allows to overlay the Satellite image for background map. When it is set On, the Palette is set to Normal to display the proper colors. Page 58 CPF180i and CPF300i...

  • Page 57: Currents Prediction

    If no data/time is available from the GPS or the GPS Chart Plotter is not in Simulation mode, the icon on the map is generic one. The color of the arrow denotes the strength of the current as follows: CPF180i and CPF300i Page 59...

  • Page 58: Chart Language

    [I ]/[D ] to decrease/increase time; press [E ] to exit. On the CPF180i press [ENT] to set the date and time manually, and [GOTO]/[MENU] to decrease/increase time; press [CLR] to exit. 6.0.7 Chart Language The CPF180i and CPF300i may be customized to show the local language of the chart.

  • Page 59: Pictures & Diagrams

    MAX data cards allows you to show pictures or diagrams EPPESEN on the CPF180i and CPF300i display. These Pictures are typically used to facilitate the identification of cartographic objects or places around the map: they can be the landscape layout nearby a harbor, the shape of a bridge or of a buoy etc. On some objects, such as bridges, the image associated can represent the Diagram representing the shape of the objects and the various characteristics (length, height, type of bridge etc.).

  • Page 60: Enhanced Port Info

    Figure 6.0.8c - Example of displayed image on CPF300i Otherwise on the CPF300i press [E ], or on the CPF180i press [ENT], to open the Full XPAND Info on the object. Note that on the Full Info, there is the small camera icon on a corner of the square containing the object icon.

  • Page 61: Creating Marks

    2. You will notice a Mark is placed under the location of the Cursor and a popup window is shown with the exact Lat/Lon of the Mark. 3. If the position is incorrect on the CPF180i press [ENT], select EDIT using the ShuttlePoint knob and press [ENT]. On the CPF300i, press [E ] that will allow you to change the position, Mark name and icon type.

  • Page 62: Deleting A Mark Or Waypoint

    1. After a Mark is created on the CPF180i press [ENT], move the ShuttlePoint knob to highlight EDIT and press [ENT]. On the CPF300i press [E ] to show the edit popup window. Figure 7.1 - Mark editing 2. The Mark Icon is selected, press [ENT]. A popup window appears: Figure 7.1a - Mark Icons...

  • Page 63: Marks/Waypoints List

    Sends the stored points to a external device (PC) capable of listening to NMEA WPL and RTE sentences. RECEIVE** When selected, receives points from an external device (PC) that is capable of sending NMEA WPL sentence. NOTE* The CPF300i has two items “DELETE” and “DEL ALL”. CPF180i and CPF300i Page 65...

  • Page 64: Creating A New Mark With The User Points List

    YES or NO and press [ENT]. WARNING After entering in all the Marks it is a good practice to back up the points to a User C-CARD. Refer to Section 11. Page 66 CPF180i and CPF300i...

  • Page 65: Goto Cursor, Route And Mark

    GOTO CURSOR, ROUTE AND MARK The CPF180i and CPF300i can easily be set to start navigating to the Cursor on the map page, a saved Mark or a Route that was created. GOTO CURSOR 1. Move the ShuttlePoint knob to the exact position you want to navigate to.
  • Page 66 5. You will notice a circle is drawn around the Icon Symbol. This means the GPS Chart Plotter is now navigating to the point. 6. Press [CLR] to switch to the Chart page or Highway page to start navigating to the point. Page 68 CPF180i and CPF300i...

  • Page 67: Man Over Board (Mob) Function

    During navigation, the “MOB” feature provides a one-touch method of storing a location, such as a point were a crew member fell overboard. In this mode, the CPF180i or CPF300i places a MOB point on the Chart page and all the navigation data shown is related to navigating back to this point, allowing you to retrace your path to the MOB point efficiently.
  • Page 68 Page 70 CPF180i and CPF300i...

  • Page 69: Routes

    ROUTES The CPF180i and the CPF300i have the capability to store 50 Routes with 100 Waypoints or Marks in each Route. A Route can consist of Waypoints or Marks. The difference is when a Route is made using Waypoints and the Route is deleted the Waypoints are also deleted.

  • Page 70: Creating An Olympic Route

    6. Then move the ShuttlePoint knob to the last Waypoint and press [ENT]. 7. Move the ShuttlePoint knob to highlight OLYMPIC and press [ENT]. A line joins the starting Waypoint and the last Waypoint. Figure 9.2a - Olympic Route creation (2) Page 72 CPF180i and CPF300i...

  • Page 71: Making Additional Routes

    INSERTING A WAYPOINT INTO A ROUTE Place the cursor on the navigation line between two Waypoints and press [ROUTE]. The line between the two Waypoints is turned into a dotted line, see the following picture. CPF180i and CPF300i Page 73...

  • Page 72: Goto A Route

    2. Press [GOTO] to show the GOTO popup window. 3. Move the ShuttlePoint knob to highlight ROUTE and press [ENT]. 4. The SELECT ROUTE popup window will be shown. Figure 9.6.0 - GOTO ROUTE procedure (1) Page 74 CPF180i and CPF300i...

  • Page 73: By Cursor Key

    Route. SEND Sends the stored points to a external device (PC) capable of listening to NMEA RTE sentence. RECEIVE Receive the points from an external device (PC) capable of sending NMEA RTE sentence. CPF180i and CPF300i Page 75...

  • Page 74: Route Check

    The Route Check function is used after you have created a Route to ensure you and your vessel will not have problems while navigating. This is done by the CPF180i and CPF300i by reviewing the Route and looking for the following hazards that may effect safe navigation.
  • Page 75 (like DSC, MOB, Mark). In the case of checking a single point towards which the navigation is started, the leg for which the Route Check is executed is defined by the current position (the leg’s starting point) and the destination point (the leg’s ending point). CPF180i and CPF300i Page 77...
  • Page 76 Page 78 CPF180i and CPF300i...

  • Page 77: Tracks

    Track for a predetermined time or distance interval. If you have a fast moving boat you may want to setup the CPF180i or CPF300i to record a Track point every 0.5NM or if you have a sail boat you may want to setup to lay down a Track point once every 1 minute.

  • Page 78: Saving And Starting A New Track

    3. A popup window will be shown with Nm (Nautical Mile), Sm (Statute Mile), Km (Kilometer) and RESET. Move the ShuttlePoint knob to select the desired units of measure and press [ENT] or move the ShuttlePoint knob to the right. Page 80 CPF180i and CPF300i...

  • Page 79: Trip Log Selection / Reset

    5. A warning popup window will be shown to confirm if you want to reset the Trip Log. Move the ShuttlePoint knob to YES and press [ENT].The Trip Log is now reset. 6. Press [CLR] to store and exit the editing mode Figure 10.1. 0 - Trip Log Reset CPF180i and CPF300i Page 81...
  • Page 80 Page 82 CPF180i and CPF300i...

  • Page 81: User C-Card

    PC, in case you have to clear the RAM to resolve an issue or load new software or if your CPF180i and CPF300i becomes stolen, or if you would like to transfer Waypoint, Track and Route information from one STANDARD HORIZON GPS Chart Plotter to another.

  • Page 82: Loading A File

    3. Open the door, remove the User C-CARD from the slot and insert another User C-CARD into the same slot. 4. Move the ShuttlePoint knob to highlight REFRESH and press [ENT]. This "new" User C-CARD is now ready to receive and store information. Page 84 CPF180i and CPF300i...

  • Page 83: Pages

    12. PAGES The CPF180i and CPF300i have many pages that are designed to ease your navigation. CHART NAVIGATION HIGHWAY CELESTIAL WAAS WAAS GPS STATUS NMEA DISPLAY Display example with RADAR connected Chart and Fish Finder WAAS Figure 12 - Example of screen display pages for CPF300i...

  • Page 84: Chart Page

    1. Press [MENU]. Move the ShuttlePoint knob to highlight CHART and press [ENT].Two Chart page types are available: Single and Dual. 2. Move the ShuttlePoint knob to highlight Single or Dual and press [ENT]. WAAS 3D WAAS 3D Figure 12.0 - Chart selection menu on CPF300i Page 86 CPF180i and CPF300i...

  • Page 85: Window Selections

    6. Press [CLR] or move the ShuttlePoint knob to exit the menu and show the Chart page. 12.0.1 Customizing the Data Windows The data fields contained on the General, 1 Line Small/Large and 2 Line Small data windows can be changed to the following selections: · SOG = Speed Over Ground CPF180i and CPF300i Page 87...
  • Page 86 4. Press [CLR] to store and exit the editing mode. NOTE Data window field on the NAVIGATION, HIGHWAY, GPS STATUS, and NMEA pages may be customized in the above manner. WAAS 3D AAS 3D WAAS 3D Figure 12.0.1 - Customizing the Data Windows Page 88 CPF180i and CPF300i...

  • Page 87: Additional Functions On Chart Page

    ShuttlePoint knob to the right. 4. Move the ShuttlePoint knob up or down to select the preset and press [ENT]. 5. Press [CLR] or move the ShuttlePoint knob to the right until the Chart page is shown. CPF180i and CPF300i Page 89...

  • Page 88: Marine Settings

    Tide. If no data/time is available from the GPS or the GPS Chart Plotter is not in Simulation mode, the icon on the map is generic one. The color of the arrow denotes the strength of the current as follows: Page 90 CPF180i and CPF300i...

  • Page 89: Depth Settings

    Land Elevation Values : Turns the displaying of Land Elevation Values On or Off. Roads : Turns the displaying to roads On or Off. Points of interest : Turns the displaying of Points of Information On or Off. CPF180i and CPF300i Page 91...

  • Page 90: Chart Settings

    VAD object can be any cartographic objects and it can be distinguished from the official-chart-objects from the Quick Info. A dedicated icon is shown on the Quick Info window to indicate that the object Page 92 CPF180i and CPF300i...

  • Page 91: Underwater Objects Settings

    2. Move the ShuttlePoint knob to highlight MAP CONFIGURATIONS and press [ENT] or move the ShuttlePoint knob to the right. 3. Move the ShuttlePoint knob up or down to select the desired item within the groups CPF180i and CPF300i Page 93...

  • Page 92: Navigation Page

    Speed Over Ground Distance to Destination Course Over Ground Bearing to Destination Figure 12.2a - Navigation page with Compass Tape NOTE The Compass Rose/Tape gives priority to the compass (Flux Gate or Gyro Compass) data if Page 94 CPF180i and CPF300i...

  • Page 93: Highway Page

    (3) in the Tide Graph (2). Moving the ShuttlePoint knob to the left or right changes the time, moving the ShuttlePoint knob up or down selects the Tide height and draught (draft) on the Tide Graph. CPF180i and CPF300i Page 95...

  • Page 94: Gps Status Page

    Move the ShuttlePoint knob to highlight None (to disable) and press [ENT]. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint knob to the left until the menu disappears. Page 96 CPF180i and CPF300i...

  • Page 95: Gps Setup Menu

    GSV, HDG, HDM, HDT, RMC, VHW, VTG, DPT, DBT, MTW, VWR, VWT, TLL, WPL, RTE. CHANGING the NMEA PAGE Windows 1. On the CPF180i, press [MENU]. Move the ShuttlePoint knob to highlight NMEA DISPLAY and press [ENT]. CPF180i and CPF300i...

  • Page 96: Nmea Data Page

    2. Move the ShuttlePoint knob to highlight DATA and press [ENT]. 3. Connect the BLUE Wire on the GPS Chart Plotter to the junction of the Brown wire and the VHF wire. The display should look similar to the following picture. Page 98 CPF180i and CPF300i...

  • Page 97: Nmea Trend

    Trends will be shown for Depth, Temp and Speed (DST521 or DST526 must be connected to show speed through the water) when a Standard Horizon transducer is connected. To show Wind trend information the CPF180i or CPF300i must be connected to the NMEA output of a external Wind instrument.

  • Page 98: Vhf Digital Selective Calling

    STANDARD HORIZON VHF Marine Radios with Digital Selective Calling are able to be interfaced with the GPS Chart Plotter which feeds GPS data to the VHF and listens for DSC calls from the VHF. By connecting a few wires between the STANDARD HORIZON VHF and the GPS Chart Plotter it will receive: 1.

  • Page 99: Dsc Distress Call

    Vessel in Distress and also allows for easy navigation to the vessel. 12.9.2 Position Request STANDARD HORIZON VHF radios can transmit a DSC call to other equipped Vessels with a DSC VHF or request this radio transmit the GPS position. When this position is received the STANDARD HORIZON VHF radio sends the information to the GPS Chart Plotter which displays the GPS position of the vessel on the Chart page.
  • Page 100 Page 102 CPF180i and CPF300i...

  • Page 101: Advanced Settings

    While in this menu you will see many selections which are described in the next sections. 13.0 INPUT/OUTPUT (NMEA) The CPF180i has 1 NMEA Input and 2 NMEA Outputs and the CPF300i has 3 Inputs and 3 Output connections. These ports may be set up to receive and output the following.

  • Page 102: Loran Td

    : Alerts when the received depth Value is lower than the selected value. Available selections: 0000 to 3000FT. Anchor Alarm : Alerts when the ships moves off a selected locations by a selected distance. Available selections: 0.00 to 9.99NM. Page 104 CPF180i and CPF300i...

  • Page 103: Simulation

    : To start the simulator you can insert the time. Cursor Control : Enables (On)/disables (Off) the cursor control. Demo Mode : In Demo mode the GPS Chart Plotter automatically places a Destination point on the Chart CPF180i and CPF300i Page 105...

  • Page 104: Navigating A Route In Simulation Mode

    Manual. If Auto Info is set to On, when receiving the Position Request it is possible to center the cursor over the top of the Position Request icon and show the Position Request popup window Page 106 CPF180i and CPF300i...

  • Page 105: Ais

    · Sleeping Target: Target located outside the Activation Range. Sleeping target is represented by a small oriented triangle. · Lost Target: When the AIS info is not received from that vessel for 3.5 minutes. The presentation will be a flashing black triangle with a cross through. CPF180i and CPF300i Page 107...

  • Page 106: Ais Menu

    4. Move the ShuttlePoint knob to highlight PORT n and press [ENT] or move the ShuttlePoint knob to the right. 5. Move the ShuttlePoint knob to highlight AIS 38400 and press [ENT] or move the ShuttlePoint knob to the right. Page 108 CPF180i and CPF300i...

  • Page 107: Quick Info On Ais Target

    NOTE The CPF180i has one NMEA Input - Port1. The AIS device will be connected to Port1, so in step 5 setup Port1 to AIS38400. Refer to Par. 2.4 for wire connections.The CPF300i has 3 NMEA Input connections any of which the AIS device may be connected to. Refer to Par. 2.4 for wire connections.
  • Page 108 Page 110 CPF180i and CPF300i...

  • Page 109: C-Weather Service

    15. C-WEATHER SERVICE C-Weather is a free service available on the CPF180i and CPF300i. C-Weather service gives excellent coverage for the whole World. Weather forecasts are based on data received from the leading meteorological centers. This data is processed by Jeppesen server and made available via TCPIP connection.

  • Page 110: Copy From User C-Card

    (see the previous "Weather data package" table) are downloaded. [S ] (or [CLR] for CPF180i) allows to interrupt the data download. At the end of the operation press ] (or [CLR] for CPF180i) to close the window. 15.0.1 Copy From User C-CARD Allows the whole data package C-Weather loading from the User C-CARD.

  • Page 111: Mobilarm

    16.0 MOBILARM-GPS CHART PLOTTER CONNECTION Connect the MOBILARM system to one of the Ports on the Standard Horizon GPS Chart Plotter. Refer to Par. 2.4.0 “Connection Table” for CPF180i, Par. 2.4.2 “Connection Table” for CPF300i and MOBILARM Owner’s Manuals for connections.

  • Page 112: Software Setup

    NOTE Note the CPF180i only has one NMEA Input so Port1 will have to be set to MOBILARM. The CPF300i has 3 Ports so Port 1, 2 or 3 can be be used. Port 1 Example Chart Plotter MOBILARM Blue...

  • Page 113: Mobilarm Ptx

    On the GPS Chart Plotter all menus and/or pages are closed and the chart is centered on the PTX MOB received position. A Audible Alarm is heard and a pop-up warning window appears to notify that a PTX has been received: CPF180i and CPF300i Page 115...

  • Page 114: Placing Cursor On The Ptx Icon

    Figure 16.3.0a - Example of PTX warning window on CPF300i Figure 16.3.0b - Example of PTX warning window on CPF180i It is possible to Goto (navigate) to the received MOBILARM PTX position (see Par. 16.4.1) or open the MOBILARM Alarm Status List page (see Par. 16.4.2). Selecting Goto or Alarm Status List will mute the Audible Alarm.

  • Page 115: Delete Ptx

    Figure 16.4a - Example of PTX information window on CPF180i 16.4.0 Delete PTX The Delete PTX function permamently removes the selected PTX from the MOBILARM Alarm Status List and from the Chart page. Using the ShuttlePoint knob, move the cursor over the PTX icon and then: CPF180i press [ENT], select DELETE using the ShuttlePoint knob and press [ENT].

  • Page 116: The Mobilarm Alarm Status List

    If the navigation is set to the selected PTX icon, to terminate the navigation: CPF180i press [ENT], select STOP GOTO using the ShuttlePoint knob and press [ENT]. Figure 16.4.1b - Example of Stop Goto PTX on CPF180i CPF300i press [S Figure 16.4.1c - Example of Stop Goto PTX on CPF300i...
  • Page 117 (if open) and center the chart selected PTX. DELETE Deletes the selected PTX. SHOW Centers the chart on the selected PTX. SHOW ALL Selects the best chart scale to see al PTX icons on the map at the same time. CPF180i and CPF300i Page 119...
  • Page 118 Page 120 CPF180i and CPF300i...

  • Page 119: Fish Finder

    4. Move the ShuttlePoint knob to highlight FISH FINDER and press [ENT] or move the ShuttlePoint knob to the right. 5. Move the ShuttlePoint knob up/down to select OFF and press [ENT] or move the ShuttlePoint knob to the right. CPF180i and CPF300i Page 121...

  • Page 120: Understanding The Fish Finder Page

    17.1 UNDERSTANDING THE FISH FINDER PAGE The display on CPF180i and CPF300i shows a time history of the echoes received by the transducer. The CPF180i and CPF300i have a menu that allows adjustments to receiver sensitivity, depth range and scrolling speed of the Fish Finder display.

  • Page 121: Understanding The Fish Finder Display

    400FT, and 50kHz is used in water over 400FT. 17.1.1 Understanding the Fish Finder display Figure 17.1.1 - The Fish Finder display Fishes Fishes are represented as arcs because of the cone angle of the transducer. In fact as CPF180i and CPF300i Page 123...

  • Page 122: Displaying The Fish Finder Page

    This section explains how to show and customize the selection of the Fish Finder display pages. 1. From all pages (except the Fish Finder page), press [MENU]. From Fish Finder page, press [MENU] two times. Figure 17.2 - Main Menu on CPF300i Page 124 CPF180i and CPF300i...

  • Page 123: Auto Full Page

    To select the area to be zoomed in move the ShuttlePoint knob Up or Down which moves the VRM line. To zoom In or Out, press [ZOOM IN] or [ZOOM OUT]. The zoom ranges are 2x and 4x the normal Fish Finder display. CPF180i and CPF300i Page 125...

  • Page 124: 200 Khz And 50 Khz Fish/Chart

    Finder window. With the focus on the Chart page the cursor may be moved and all chart menus can be selected. When focus is on the Fish Finder window the Variable Range Marker can be moved to see the depths of targets and Fish Finder menus can be accessed. Page 126 CPF180i and CPF300i...

  • Page 125: Radar

    1. Press any Soft Key. The Soft Key labels appear on the bottom of the screen. 2. Press [Focus]. A popup window appears where the active focus window label is highlighted. Figure 17.2.4.2 - Example of Combo page with [F ] shown on CPF300i OCUS CPF180i and CPF300i Page 127...

  • Page 126: Soft Key Operation (Ofcpf300I)

    1. From the Full Fish Finder page, press [MENU]. The following menu appears: Figure 17.4 - Fish Finder Setup menu 17.5 PRESETS To simply menu selections, the Fish Finder has two presets that can be easily selected for Fishing or Cruising: Page 128 CPF180i and CPF300i...

  • Page 127: Frequency

    Allows you to choose the frequency among Auto, 50 kHz, 200 kHz or 50&200 kHz when single frequency page is selected. Figure 17.6 - Frequency menu 17.7 GAIN MODE Figure 17.7 - Gain Mode menu CPF180i and CPF300i Page 129...

  • Page 128: Auto Mode

    Example: Your vessel is in about 57FT of water, however there is fish suspended in 35FT of water. You want to display to 10FT area around the fish. Shift would be set to 25FT and Depth would be set to 35FT shown in example below. Page 130 CPF180i and CPF300i...

  • Page 129: Interference Rejection

    When the Gain Mode option is set to Manual, the Gain can be manually adjusted. When switching from Automatic to Manual Mode, the Gain + Offset value is copied into the Manual Gain setting of the receiver. CPF180i and CPF300i Page 131...

  • Page 130: Stc (Sensitivity Time Control)

    MID when the bottom is shallow. This issue may be resolved by adjusting the STC value to SHORT or even to OFF in very shallow waters. If in DEEP WATER the Fish Finder display is showing a very shallow bottom or digital Page 132 CPF180i and CPF300i...

  • Page 131: Surface Noise Filter

    Filter Table: Surface Noise Filter Depth Preset Depth (Ft) Figure 17.10.2 - Surface Noise Filter Depth table 17.11 DISPLAY SETUP Allows the Fish Finder’s display page appearance to be changed. Figure 17.11 - Display Setup menu CPF180i and CPF300i Page 133...

  • Page 132: Color Settings

    A-Scope Shows the real time display of the echo from the bottom. 17.12 TRANSDUCER SETUP This menu allows you to calibrate the speed through the water, water temperature and the keel/prop offset of the transducer. Page 134 CPF180i and CPF300i...

  • Page 133: Keel Offset

    Used to calibration on the Water Temperature sensor in the transducer. 17.12.3 Set Defaults Restores the factory settings. 17.13 ALARMS The Alarms menu allows you to define alarm settings for Shallow Alarm, Depth Alarm and Temperature Upper/Lower/Rate. Figure 17.13 - Alarms menu CPF180i and CPF300i Page 135...

  • Page 134: Shallow Water

    This option saves the complete set of Fish Finder settings to an optional User C-CARD. This is useful to avoid the user having to retune up Fish Finder after a RAM Clear operation or a software update. Figure 17.14 - C-CARD - Save settings Page 136 CPF180i and CPF300i...

  • Page 135: Load Settings From User C-Card

    Figure 17.15 - C-CARD - Load settings 17.16 RESTORE CURRENT PRESET DEFAULTS This option restores the default values only for the current presets and does not affect the other presets. Figure 17.16 - C-Card - Restore settings CPF180i and CPF300i Page 137...
  • Page 136 Page 138 CPF180i and CPF300i...

  • Page 137: Trouble Shooting

    Internal RAM memory to become corrupted. To solve this issue, perform a RAM clear (refer to Section 19). NOTE After performing a RAM Clear all Marks, Routes and tracks will be erased. To back up these points refer to Section 11 for details. CPF180i and CPF300i Page 139...
  • Page 138 Page 140 CPF180i and CPF300i...

  • Page 139: Technical Tests

    Each time you move the ShuttlePoint knob to right, the screen will decrease brightness, move it to the left to increase brightness. Backlight The second option allows to set the backlight. Operates in similar mode as Contrast. CPF180i and CPF300i Page 141...

  • Page 140: Cartridges

    Use [ZOOM IN] to stop (or continue after pause) data displaying, [ENT] to show data in hex or ASCII mode (normal or small) and [CLR] to exit. Loop-Back Test This is a special test done during the production phase to check the serial ports integrity. A special connector is required. Page 142 CPF180i and CPF300i...

  • Page 141: Specifications

    RMA, RMB, RMC, GGA, HSC, DBT, DPT, MTW, VHW, WPL, RTE NMEA Input sentences : BWC, DSC, DSE, GGA, GLL, GSA, GSV, HDG, HDM, HDT, RMC, VHW, VTG, DPT, DBT, MTW, VWR, VWT, TLL, WPL, RTE Figure 20.0 - CPF180i Dimensions [mm/inch] CPF180i and CPF300i Page 143...

  • Page 142: Cpf300I Specifications

    RMA, RMB, RMC, GGA, HSC, DBT, DPT, MTW, VHW, WPL, RTE NMEA Input sentences : BWC, DSC, DSE, GGA, GLL, GSA, GSV, HDG, HDM, HDT, RMC, VHW, VTG, DPT, DBT, MTW, VWR, VWT, TLL, WPL, RTE Figure 20.1 - CPF300i Dimensions [mm/inch] Page 144 CPF180i and CPF300i...

  • Page 143: Ff Module Specifications

    Reacquisition < 1 second Hot Start 1 second outdoor, 10 seconds indoor Warm Start 29 seconds Cold Start 29 seconds Accuracy < 2.5m with SBAS < 2.0m NMEA Output Messages GGA, RMC, GSA, GSV, TXT CPF180i and CPF300i Page 145...
  • Page 144 Page 146 CPF180i and CPF300i...

  • Page 145: Appendix: Terms

    GPS2D – The GPS is receiving at least 3 valid satellites. GPS3D – The GPS is receiving at least 4 Satellites. HDG (Heading) – Shows heading from a External Flux Gate Compass when connected. CPF180i and CPF300i Page 147...
  • Page 146 70 metres (230FT) in Height and up to 600 metres (2.000 FT) in diameter. Position Request – Marine DSC VHF Function of transmitting a GPS position to another Marine DSC VHF. When GPS Chart Plotter is connected to STANDARD HORIZON GPS the position of another vessel is shown on the Chart page.
  • Page 147 WATER TEMP – Shows the sea water temperature for when a Digital Speed Log/Temp instrument with NMEA is connected. XTE (Cross Track Error) – The distance your vessel is off course (left or right) to a Destination point. CPF180i and CPF300i Page 149...
  • Page 148 Page 150 CPF180i and CPF300i...

  • Page 149: Analytical Index

    APB ........143, 144 Cartographic Data ......54 Apparent Wind Direction ..88, 147 Cartography ....53, 143, 144 Apparent Wind Speed ....88, 147 Cartridges ........142 Arrival Alarm ........104 CAUTION ..........5 CPF180i and CPF300i Page 151...
  • Page 150 CPA Alarm ......107, 108 Depth (unit) ........40 CPA Limit ....... 107, 108 Depth Alarm ........104 CPF180i ....13, 14, 17, 18, 19, DEPTH AREAS ....... 147 21, 22, 143 DEPTH LIMIT (route) ......77 CPF300i 13, 14, 17, 18, 19, 23, 27, Depth Range Max ......
  • Page 151 Dust cover ......... 14 Flux gate compass ......97 DVD ..........27 Focus Soft Key ....... 126, 127 Dynamic Currents ......54 forecast ........... 111 Dynamic Nav-Aids ..... 54, 57 Format User C-CARD ....... 83 CPF180i and CPF300i Page 153...
  • Page 152 Lights ..........90 Heading ........88, 147 LINE COLOR (track) ......80 HEIGHT .......... 148 Load settings ........137 HIGH WATER ......... 148 Loading a file ........84 HIGHWAY ......... 40 local language ........60 Page 154 CPF180i and CPF300i...
  • Page 153 Route ........ 71 Palette ..........58 Names Tags ........90 PC ..........25, 65 Nav Aids & Light Sectors ....90 PC COM settings ......26 NAV AIDS PRESENTATION .... 40 PC-Planner ........111 CPF180i and CPF300i Page 155...
  • Page 154 Selection (pages) ......85 Radar page ......40, 127 SEND ..........65 RADAR/CHART ........ 40 SEND (route) ........75 RADAR/FISH FINDER ...... 40 Sensitivity menu ......131 Radio Call Sign ....... 107 sentences .......... 26 Page 156 CPF180i and CPF300i...
  • Page 155 Trip Log selection ......81 System Test ........141 TROUBLE SHOOTING ....139 True bearing ........104 Target ..........107 True Wind Direction ....88, 148 TCPA ..........107 True Wind Speed ..... 88, 148 CPF180i and CPF300i Page 157...
  • Page 156 ZOOM IN ........... 31 VMG ......... 88, 148 ZOOM OUT ........31 VTG ......... 97, 143, 144 Zoom Pages ........125 VWR ....... 97, 143, 144 Zoom Type ........55 VWT ........ 97, 143, 144 Page 158 CPF180i and CPF300i...
  • Page 157 Products shall be limited solely to repair or replacement, at its option, of the Product or part(s) therein which, upon examination by STANDARD HORIZON, appear to be defective or not up to factory specifications. STANDARD HORIZON may, at its option, repair or replace parts or subassemblies with or reconditioned parts and subassemblies.

This manual is also suitable for:

Cpf300i

Table of Contents
