FF520
50/200kHz BLACK BOX FISH FINDER
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP1000C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Standard Horizon CP1000C

Summary of Contents for Standard Horizon CP1000C

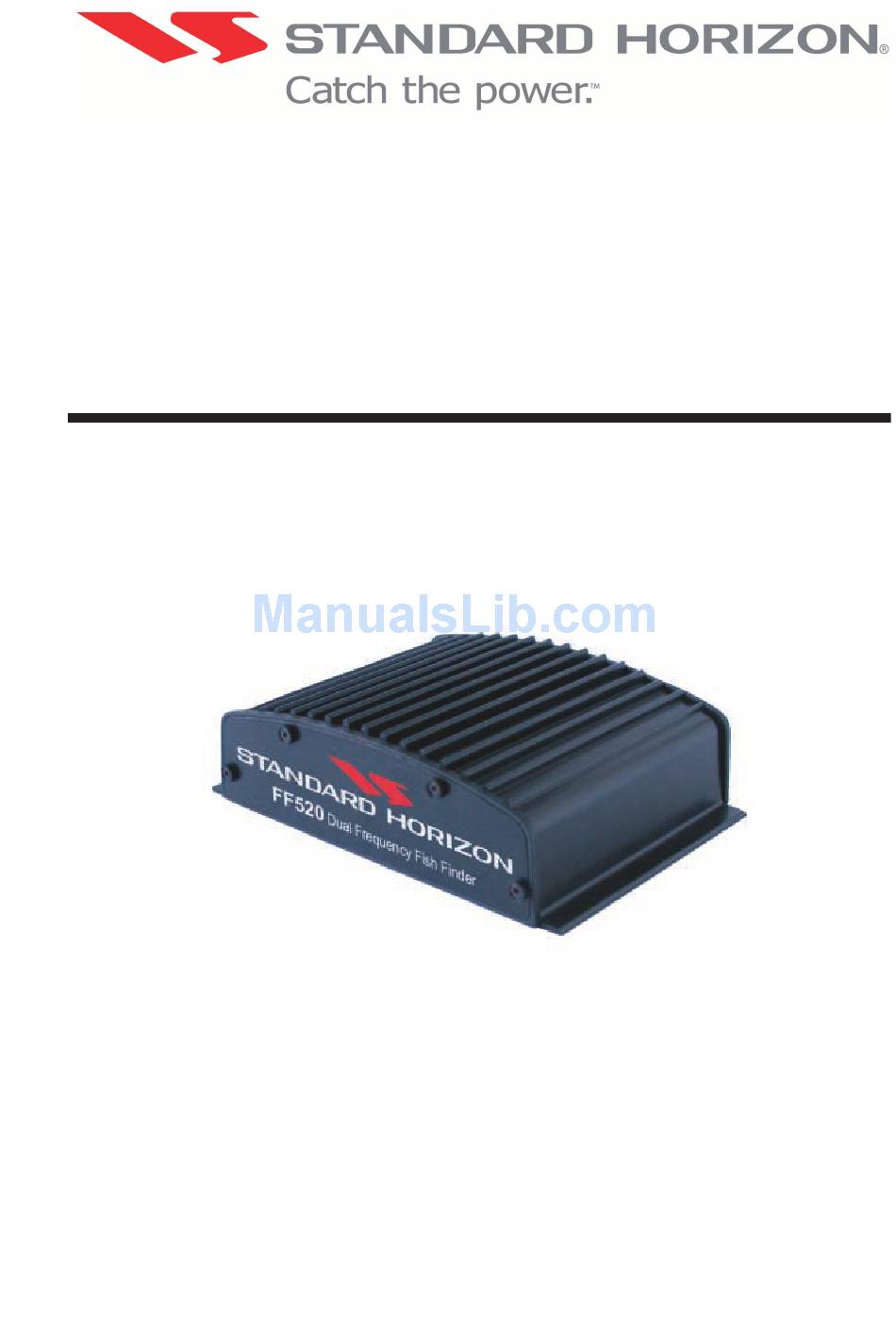

  • Page 1 FF520 50/200kHz BLACK BOX FISH FINDER Owner's Manual...
  • Page 2 - The FF520 contains dangerous high voltage circuits which only experienced technicians can handle. - STANDARD HORIZON will not be liable for errors contained herein, or for incidental or consequential damages in connection with the performance or use of this material.

  • Page 3: Table Of Contents

    3.1.2f The SHUTTLEPOINT knob ... 21 3.1.2g Controls on Chart page or Fish page in Chart/Fish dual mode ... 21 3.1.3 Sounder Adjustments with Soft Keys (CP175C and CP1000C) ... 22 3.1.3a The Gain Soft Key ... 22 3.1.3b The Noise Soft Key ... 22 3.1.3c The Range Soft Key ...
  • Page 4 SPECIFICATIONS ... 31 FF520 SPECIFICATIONS ... 31 FF520 EXTERNAL CONNECTIONS ... 32 TRANSDUCER TRANSDUCER MOUNTING ... 33 6.0.0 Power Boats ... 33 6.0.1 Sailboats ... 33 6.0.2 Transducer Types ... 34 6.0.3 Low Profile Thru-Hull ... 34 6.0.4 Transom ... 34 6.0.5 Fairing Block ...

  • Page 5: Introduction

    This chapter provides basic information in becoming familiar with the advanced functions of the FF520 before you start using it combined with the STANDARD HORIZON GPS chartplotters. GENERAL INFORMATION The STANDARD HORIZON GPS chartplotters combined with the sonar performance of the FF520 creates the most advanced marine navigation system available.

  • Page 6: Packing List

    Tee cable FF520 S8101641 Power cable FF50 EY307X100 Owner's Manual CP155C_MAX CP155C software update card with MAX operating system CP175C_MAX CP175C software update card with MAX operating system CP1000_MAX CP1000C software update card with MAX operating system Page 8 FF520...

  • Page 7: Mounting The Ff520

    The FF520 must be properly installed according the following instructions to get the best possible performance. TRANSDUCER: refer to Chapter 6 and to the Installation Manual supplied with the transducer. INSTALLATION The FF520 must be mounted in a dry, cool and well ventilated location. The FF520 can be mounted horizontally or vertically.

  • Page 8: Connecting The Gps Chartplotters To The Ff520

    CONNECTING THE GPS CHARTPLOTTERS TO THE FF520 CP155C and CP1000C connections to FF520 1. If the power/data cable is plugged into the CP155C or CP1000C, remove it. 2. Route the cable from the FF520 to the GPS Chart plotters location. Note the "Tee" cable can be cut to run the cable, but care must be taken to ensure the cable is joined together and sealed from moisture.

  • Page 9: Optional Connections

    The FF520 is running in the boot loader, or DC power is not being supplied to the FF520. · ON CONTINUOUSLY The transducer is not connected to the GPS Chart plotter or problem with cable of the transducer cable.. · 1 LONG FLASH EVERY 2 SECONDS FF520 Figure 2.3 - The FF520 Optional Connections...

  • Page 10: Power Connections

    It is recommended the installation of a switch and a 5A fuse (not supplied) in the positive DC supply to the FF520. The FF520 is designed to remain in stand-by even when the power of the GPS chartplotter is turned off, this is the need for a switch so the vessels battery will not be drained..

  • Page 11: Backing Up Marks And Routes

    Updating the software in the GPS chartplotters with these CARDs will erase all Marks and Routes that you have stored. Please read carefully the following paragraphs. 2.5.0 Backing up Marks and Routes If you have created Marks and Routes you will need to either make note and manually re- enter them or purchase a optional User C-CARD supplied by C-Map.
  • Page 12 Page 14 FF520...

  • Page 13: Fish Finder

    Figure 3 - Fish Finder working principle UNDERSTANDING THE FISH FINDER PAGE The display on STANDARD HORIZON GPS chartplotters shows a history of time of the echoes received by the transducer. The STANDARD HORIZON GPS chartplotters have a menu that allows adjustments to receiver sensitivity, depth range and scrolling speed of the Fish Finder display.
  • Page 14 Warning message Fish Finder window Color Bar Digital Depth Water temperature Alarm Bar Depth ruler Variable Depth Marker (VDM) Zoom Bar A-Scope Operating Frequency Following there is a brief description of terms listed in the previous Figure 3.0: Warning Message This is a flashing label that is turned on when the echo sounder is in Simulation mode.

  • Page 15: Understanding The Fish Finder Display

    Variable Depth Marker (VDM) Horizontal line on to the Fish finder page window with a depth label. Move the ShuttlePoint knob UP or Down to change the position of the VDM. The label displays the depth of the cursor position. The VDM can be moved to any location pinpointing the depth of a target.

  • Page 16: Displaying The Fish Finder Page

    An underlined word refers to a selection in the menu 3.1.0 Menu selection (all GPS chartplotters) 1. From all pages except the Fish Finder page, press [MENU]. 2. Move the ShuttlePoint knob to highlight FISH FINDER and press [ENTER] or move the ShuttlePoint knob to the right.

  • Page 17: Customizing The Fish Finder Menu Selection

    3. The PAGE SELECTION window will be shown. Move the ShuttlePoint knob up/down or left/right to select the desired display and press [ENTER]. 3.1.1 Soft Keys (CP175C and CP1000C) 1. Locate and press the Soft Key labeled 200kHz Full. Figure 3.1.1 - Fish Finder page selection by Soft Keys 3.1.1a Customizing the Soft Keys...

  • Page 18: Key Operation When Fish Finder Page Is Shown

    1. Pressing [MENU] when a Fish Finder page is displayed, will show the Fish Finder Setup: 2. If pressed again the GPS chartplotters Main Menu will be displayed. To change to the Chart page [MENU] must be pressed 2 times to show the Main Menu. Then move Page 20 Figure 3.1.1a - Fish Finder FULL DISPLAY pages...

  • Page 19: The Enter Key

    VRM up and down. 3.1.2g Controls on Chart page or Fish page in Chart/Fish dual mode When the GPS chartplotters is in the Chart/Fish display mode, it is possible to move the control between the Chart and the Fish: FF520 Figure 3.1.2b - The ENTER key, Sensitivity Menu...

  • Page 20: Sounder Adjustments With Soft Keys (Cp175C And Cp1000C)

    Fish Finder Setup, then press [CLEAR]. 3.1.3 Sounder Adjustments with Soft Keys (CP175C and CP1000C) When the Fish Finder full page is displayed, pressing one of the Soft Keys will allow control of Gain (receiver gain), Noise (Noise threshold), Range (manual depth range), Frequency (200kHz or 50kHz) and Sensitivity Time Control.

  • Page 21: System Information Page

    SYSTEM INFORMATION PAGE For troubleshooting you maybe asked by a Standard Horizon Product Support Technician for the software version of fish finder. The following procedure is how to access this information. 1. From the Chart Page press [MENU] key to open the Main Menu 2.
  • Page 22 Page 24 FF520...

  • Page 23: Fish Finder Setup Menu

    1. From the Full Fish Finder page, press [MENU] to show the Fish Finder Setup menu. 2. From the Chart page, to access this menu: a. Press [MENU]. Move the ShuttlePoint knob to SETUP and press [ENTER]. b. Move the ShuttlePoint knob to FISH FINDER SETUP and press [ENTER]. The following paragraphs describe the Fish Finder Setup menu sub-options.

  • Page 24: Display Setup

    Scrolling Speed(*) : Adjusts the chart scrolling rate. White Line : Controls how the STANDARD HORIZON GPS chartplotters displays information about the bottom type (hard or soft). When the White Line is Off the bottom return will display as black (red).

  • Page 25: Range

    Icon + Echo: shown as arches with the Fish icon Icon + Echo + Depth: shown as arches with the Fish icon and relative depth values A-Scope : displays Sonar Echo in real time Note that the max scrolling rate is limited by the sound speed and the depth according with the following relation: the deeper the setting, the slower the scrolling rate.

  • Page 26: Sensitivity

    Shift (the offset from the surface) and depth on which the Fish Finder shall operate. In Auto Range Mode the Fish Finder determines automatically the range as to keep the bottom visible in the lower bottom of the screen. In this mode, Shift is always set to 0. In Bottom Lock Mode the Fish Finder automatically tracks the range around the bottom specified by the Bottom Range value.

  • Page 27: Alarms

    Thus imposing the capability of the Fish Finder to correctly detect the weakest echoes coming from a very deep bottom. ALARMS The Alarms menu allows you to define alarm settings for Shallow Alarm, Depth Alarm and Temperature Upper/Lower/Rate. To set an Anchor Alarm, enter in a shallow water and depth value above and below your actual anchoring depth.
  • Page 28 depth below the keel or the actual water depth from the surface. If we want the Fish Finder to report the depth below the keel, we have to enter a negative value meaning the transducer is mounted above the keel. So if, the range scale is set to e.g. 20 feet, the actual depth below the transducer is 15 feet and a KEEL OFFSET of -3 feet is entered, then the digital depth shall report 12 feet because that is the depth below the keel and the scale on the graphic image shall change so that the range shown is...

  • Page 29: Specifications

    : 170mA at 10 Volt dc : 1.42A at 12 Volt dc : 500/1000W (4000/8000Wpp) : 16 colors : 400 pixels on CP1000C 200 pixels on CP155C/CP175C : Dual 50 and 200kHz : 1KW : 1200Ft (365m) at 200kHz 4000Ft (1219m) at 50kHz...

  • Page 30: Ff520 External Connections

    FF520 EXTERNAL CONNECTIONS NOTE The image below is for your reference only. Since the FF520 is pre-wired it is recommended that the box not be disassembled. Figure 5.1 - FF520 External connections Page 32 FF520...

  • Page 31: Transducer

    The transducer is a device that transmits and receives sound waves into the water. The active component inside the transducer is commonly referred to as an element but actually is a piezoelectric ceramic material. TRANSDUCER MOUNTING 6.0.0 Power Boats Basically there are 2 hull types of powerboats Planing and Displacement. In the pictures shown below the boxes with lines are where the transducer should be installed.

  • Page 32: Transducer Types

    6.0.2 Transducer Types Since there are many different shapes and sizes of hulls, STANDARD HORIZON offers a range of Depth transducers to fit the vessels requirements. 6.0.3 Low Profile Thru-Hull If the user is planning to mount a thru-hull transducer first he has to know the dead rise angle where the transducer will be located on the boat.

  • Page 33: In-Hull

    6.0.6 In-hull This transducer is epoxyed to the inside of the hull that is not more than 1/2 inch thick and is solid not cored. OPTIONAL TRANSDUCER ID SENSORS Figure 6.1 - Optional Transducers FF520 Page 35...
  • Page 34 Page 36 FF520...

  • Page 35: Tips Of Operations

    HOW CAN I DISCONNECT THE CABLES FROM THE FF520 IN CASE I NEED TO DO SO FOR THE INSTALLATION? · Open the FF520 box unscrewing the four screws (see the following figure). · Once the screws are removed, pull out the panel and the Printed Circuit Board (PCB). Unscrew the cables from the PCB.

  • Page 36: How Can I Set Optimal Operating Parameters

    · Push the panel towards the case (be sure to have well positioned the rubber gasket). Close the FF520 box screwing the four screws. HOW CAN I SET OPTIMAL OPERATING PARAMETERS. Optimal operating parameters can be set accordingly with the intended use of the Fish Finder, anyway to quickly get optimal operational parameters for fishing it is possible to select the FISH preset from the Fish Finder Setup menu, while for cruising it is possible to select the CRUISE preset.

  • Page 37: Can I Always Leave The Fish Finder In Full Auto/(Auto Gain And Auto Range) Mode?

    I SET THE PARAMETERS FOR OPTIMAL OPERATION. Setting operating parameters for optimal operation depends upon environment conditions, user feeling and intended usage of the Fish Finder (e.g. fishing or cruising), anyway a good starting point is to select a full auto preset such as CRUISE or FISH and then, after waiting a while to allow the echogram displayed to stabilize around the auto calculated parameters, switch to the MANUAL preset mode.

  • Page 38: Auto-Range Fails In Very Deep Waters Displayinga Digital Very Shallow Depth Readout. What Should I Do

    A DIGITAL VERY SHALLOW DEPTH READOUT. WHAT SHOULD I DO? The Fish Finder capability to detect the bottom decreases as the bottom depth increase. If the bottom composition is soft as mud, if the sea conditions are bad, if there are thermoclines or the water is full of materials in suspension it can further decrease thus causing the digital depth readout to fail.

  • Page 39: In Very Shallow Waters When The Auto Gain Mode Is Selected There Are Fluctuations In The Bottom Profile Width And Its Color Representation. What Should I Do

    IS SELECTED THERE ARE FLUCTUATIONS IN THE BOTTOM PROFILE WIDTH AND ITS COLOR REPRESENTATION. WHAT SHOULD I DO? In very shallow waters the environment situation (bottom/water condition) vary very quickly thus causing the auto gain algorithm to create oscillations while trying to set optimal GAIN value for each situation.

  • Page 40: Index

    A-Scope ... 17 Alarm Bar ... 16 Alarms ... 29 Bottom Echo Profile ... 18 Calibrate Aux Temp ... 30 Calibrate Water Speed ... 30 Calibrate Water Temp ... 30 Chart/Fish ... 25, 26 Color Settings ... 26 CONNECTIONS ... 32 Data output ...
  • Page 41 Product or part(s) therein which, upon examination by STANDARD HORIZON, appear to be defective or not up to factory specifications. STANDARD HORIZON may, at its option, repair or replace parts or subassemblies with or reconditioned parts and subassemblies.

This manual is also suitable for:

Ff520

Table of Contents
