camera and the video in connector on a test or local
monitor.
2. Connect a coaxial cable terminated with BNC
connectors between the VIDEO OUT connector of
the camera and the video in connector on a monitor,
multiplexer, switcher, or other standard video
device.

Attach the lens

Refer to the instructions that came with the lens you
purchased for complete installation instructions of that
lens. The camera automatically detects the type of lens
used.
Note: For optimal performance, use an autoiris lens.
To install most lenses, see 1.
mount lens, screw on the provided C-mount adapter.
2. Screw your customer-supplied lens onto the
camera.
3. If you are using an autoiris lens, insert the autoiris
lens plug into the autoiris lens connector.
Figure 1 below and do the following:
1. If you are using a C-mount lens, screw on the
provided C-mount adapter.
2. Screw your customer-supplied lens onto the
camera.
3. If you are using an autoiris lens, insert the autoiris
lens plug into the autoiris lens connector.

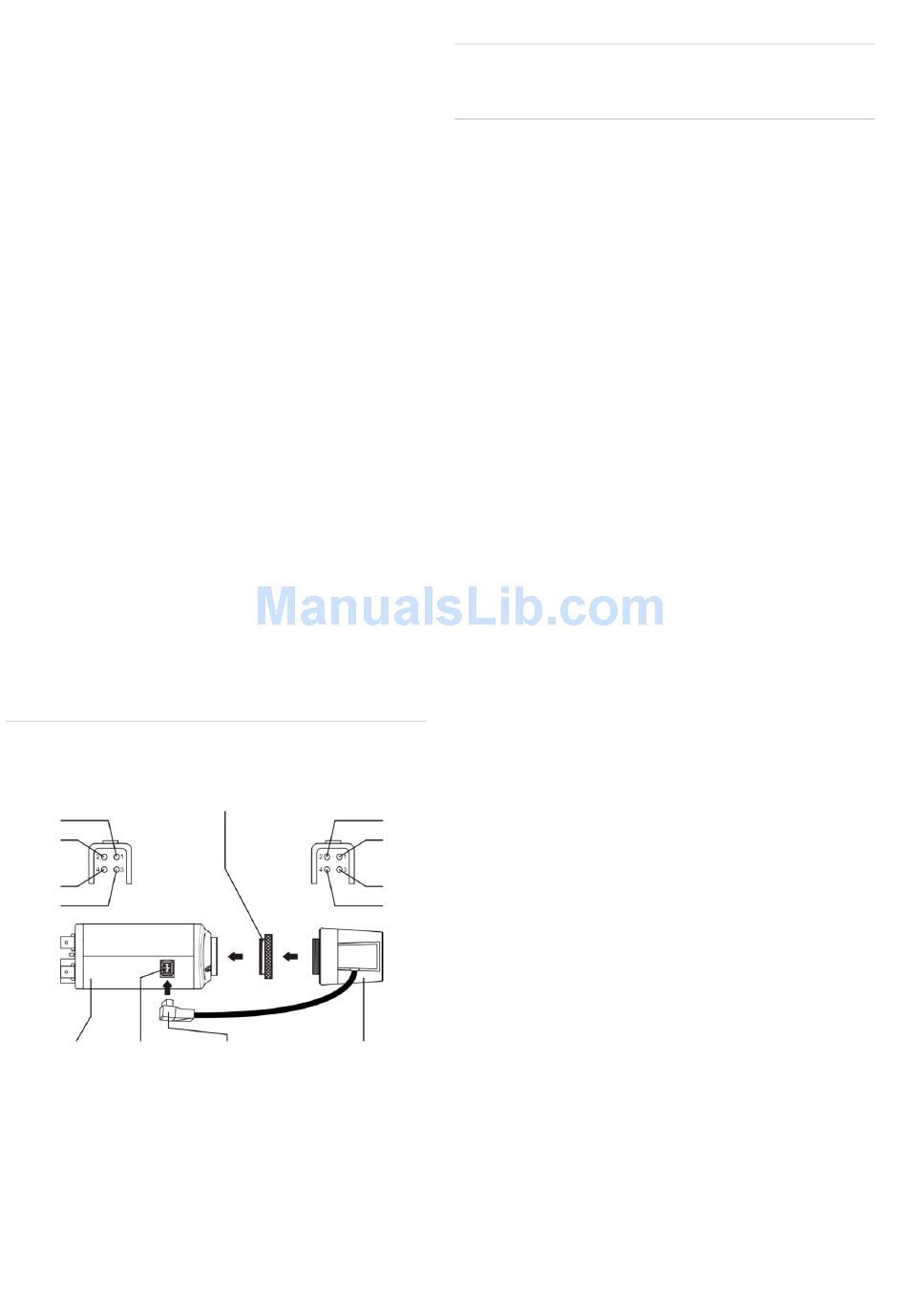

Figure 1: Attaching your lens
Video-type autoiris lens
leads
(for C-mount lenses only)
A
B
C
D
Camera Autoiris, lens
connector
Video-type autoiris lens leads: A. Red (9 VAC); B. NC (no connection); C.
Black (ground); D. White (video)
DC-type autoiris lens leads: E. Damping coil (+); F. Damping coil (-); G.
Driving coil (+); H. Driving coil (-)
2
If you are using a C-
DC-type autoiris lens leads
C-mount adapter
Autoiris lens Lens (autoiris
plug
shown); manual iris
has no cable

Connect power

Caution: Use direct plug-in UL listed power supplies
marked Class 2 or LPS (limited power source) of the
required output rating as listed on the unit.
1. With a screwdriver, loosen the GND and
~AC24V/DC12V terminal screws on the terminal
block.
2. Connect a universal 12 VDC, 24 VAC power supply
to the terminal block.
Note: The terminal block is not polarity- sensitive.
Either power lead can be connected to either
terminal connector. There is no need for an isolated
ground wire. The two power terminals can accept
any polarity and any combination of power that
equals 12 VDC or 24 VDC.
3. Retighten the terminal screws until snug, ensuring
that the power leads are secure.
4. Supply power to the unit by plugging the power
supply into a proper source.
Note: The power LED illuminates to show that the
camera is receiving power. If it does not illuminate,
check the terminal block connections and the power
source

Mount the camera

To mount the camera, attach the camera to the
mounting surface using the appropriate fasteners.

Connect the monitor

Program the cameras by attaching a standard video
monitor to the system.
E
To connect the monitor, do the following:
F
1. Plug the monitor output cable to the video monitor
output connector.
G
H
2. Connect the BNC cable to the video monitor.
3. Press Enter (see Figure 2) to display the Setup
menu.

Programming

This chapter describes how to navigate the setup menus
to adjust the camera settings.

OSD controls

Use the OSD (on-screen display) setup menus to
program the camera. See Figure 2 on page 3. The OSD
menus are only available in English.
