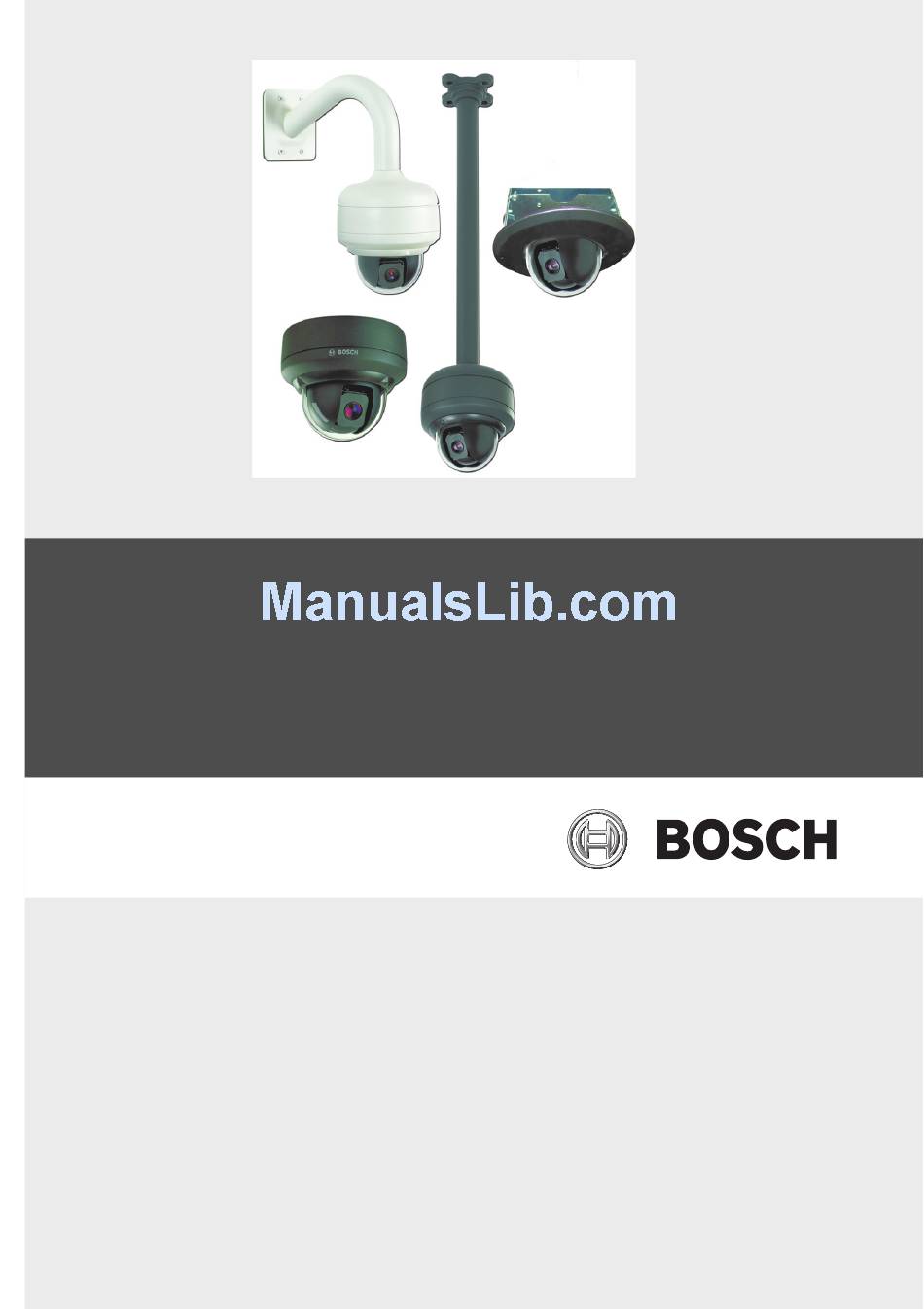

Page 1 AutoDome Easy II VEZ Series Installation Manual...
Page 3: Table Of Contents
Installing the Camera to the Mounting Plate Installing a Recessed Mount Description 6.1.1 Additional Requirements 6.1.2 Preparing the Ceiling for Installation 6.1.3 Installing the Camera to the Mounting Plate Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 4: Table Of Contents
Connecting an Open Collector Output Getting Started 10.1 Powering On 10.2 Establishing AutoDome Easy II Control 10.2.1 Basic Keyboard Operation 10.2.2 Keyboard Commands 10.3 Setting the Camera Address 10.3.1 FastAddress F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 5: Autodome Easy Ii Table Of Contents | En
13.1.1 Command Lock (locked) 13.1.2 Bosch Menu (locked) 13.1.3 PTZ Setup (unlocked) 13.1.4 Other Menus Keyboard Commands by Number Preventive Maintenance Troubleshooting 16.1 AutoDome Easy II Operation and Control Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 6: Table Of Contents
Setting FastAddress with Alternative Protocols A.1.1 Using a Pelco Controller Pelco Protocol Mode A.2.1 Hardware Configuration A.2.2 Pelco Keyboard Commands A.2.3 Pelco Keyboard Commands A.2.4 Special Preset Commands Index F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 7: Safety
This will prevent damage to the unit from lightning and power line surges. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 8 11. Servicing - Do not attempt to service this unit yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 9 16. Attachments, changes, or modifications - Only use attachments/accessories specified by the manufacturer. Any change to or modification of the equipment not expressly approved by Bosch could void the warranty or, in the case of an authorization agreement, authority to operate the equipment.
Page 10: Safety Precautions
3 mm in each pole, into the electrical installation of the building. If it is needed to open the housing for servicing and/or other activities, use this all-pole F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 11 Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic and electrical...
Page 12 | Safety AutoDome Easy II Environmental statement - Bosch has a strong commitment to the environment. This unit has been designed to respect the environment as much as possible. Electrostatic-sensitive device - Take proper CMOS/MOS-FET handling precautions to avoid electrostatic discharge.
Page 13 Network Voltage (TNV) circuits. Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.
Page 14 The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 15 AVERTISSEMENT: Ce produit est un appareil de Classe A. Son utilisation dans une zone résidentielle risque de provoquer des interférences. Le cas échéant, l’utilisateur devra prendre les mesures nécessaires pour y remédier. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 16 CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING-RELATED FUNCTIONS OF THIS PRODUCT. Copyright This user guide is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.
Page 17: Customer Support And Service
AutoDome Easy II Safety | en Customer Support and Service If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions. Service Centers Repair Center Telephone: 800-566-2283 Fax: 800-366-1329 E-mail: repair@us.bosch.com...
Page 18: Unpacking
Verify that all the parts listed in Section 2.1 Parts List are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. The original packing carton is the safest container in which to transport the unit and must be used if returning the unit for service.
Page 19: Safety Rules
Do not use the device in the presence of flammable substances. – Do not allow children or unauthorized personnel to use the device. – Do not block any ventilation openings. – Keep this manual for future reference. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 20: Description
This installation should be made by qualified service personnel and conform to the National Electrical Code and applicable local codes. NOTICE! A grounded conduit is required in order to meet the EMC Regulation Requirements. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 21: Installing A Surface Mount
Prolonged exposure to bright lights may cause bleaching of the sensor's color filters. This will be visible as colored spots in the picture and is irreversible. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 22: Additional Tools Required
Surface Mount. Determine a secure location for the surface mount dome. ø 153.0 (6.02) 134.7 (5.3) R50.6 (1.99) Figure 4.1 Indoor Surface Mount Dimensions F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 23 Junction Box Holes Cable Hole (40 mm maximum); Crescent Shape Mounting Plate Junction Box Skip to Section 4.1.4 Installing the Camera to the Mounting Plate, page 28, to continue the installation. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 24: Preparing The Surface Mount For An Outdoor Installation
Box as a template to mark the location of the four (4) M4 or #10 pan head screws (Item 1, below). Figure 4.5 Location of M4 or #10 pan head screws F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 25 Surface Mount Junction Box. These parts are supplied with the AutoDome Easy II Outdoor Camera. Ensure that the side of the retaining ring with the counter-sunk screw holes is facing you. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 26 Note: For an outdoor installation ensure that the four (4) 3.97 mm I.D. by Ø1.78 mm O-rings are threaded onto the four (4) M4 or #10 user-supplied pan head screws. Refer to step 5. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 27 Box with the three (3) M4 – .7 x 8 Phillips pan head machine screws. Figure 4.8 Install the Mounting Plate Junction Box Holes Cable Hole (40 mm maximum); Crescent Shape Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 28: Installing The Camera To The Mounting Plate
(see Section 8 Preparing the Wiring, page 61 for wiring information). Unlock the single safety locking screw on the base of the unit using the user-supplied Allen wrench. Figure 4.9 Unlock Safety Locking Screw F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 29 Attach the camera to the mounting plate by inserting the vertical tab into the recessed slot on the top of the camera dome to the right of the safety locking screw. Figure 4.11 Attach Safety Locking Screw Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 30 10. Outdoor Installation: Thread the 2.89 mm I.D. by Ø1.78 mm O-ring (item 1, below) onto the Safety Screw. 11. Secure the safety locking screw with the user supplied locking torx wrench (T-10). F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 31: Installing A Wall Mount
Prolonged exposure to bright lights may cause bleaching of the sensor's color filters. This will be visible as colored spots in the picture and is irreversible. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 32: Additional Tools Required
Determine a secure location for the wall mount (supplied separately). 334.0 (13.1) 301.0 (11.8) 188.0 (7.4) 203.5 (8.01) 280.0 (11.02) Figure 5.1 Wall Mount Dimensions Fit a user-provided metal single-gang junction box to the wall. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 33 Feed all wires from the metal junction box through the arm. Attach the mounting cap to the arm. Fit the arm to a metal single-gang junction box. Figure 5.3 Fit to Gang Junction Box Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 34: Preparing The Wall Mount For An Outdoor Installation
The fasteners and mounting surface must be capable of supporting a maximum load of 11.33 kg (25 pounds). 334.0 (13.1) 301.0 (11.8) 188.0 (7.4) 203.5 (8.01) 280.0 (11.02) Figure 5.4 Wall Mount Dimensions F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 35 CAUTION! You must ensure that the gasket is attached to the retaining ring as shown above to ensure an environmentally tight seal. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 36 Feed the wires through the hole in the surface, through the wall mount flat gasket (item 1, Figure 5.6) and then through the arm. CAUTION! All wires for installation applications must be routed through a grounded conduit. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 37 AutoDome Easy II Outdoor Camera. Figure 5.6 Secure arm to wall with flat gasket Skip to Section 5.1.4 Installing the Camera to the Mounting Plate, page 38, to continue the installation. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 38: Installing The Camera To The Mounting Plate
Attach user supplied ground to junction box. Connect the mating connectors with the flying leads to the user supplied wiring (see the Section 8 Preparing the Wiring, page 61 for wiring information). F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 39 Plug the matching connectors from the camera into the mating connectors from the ceiling. Figure 5.9 Connect Cables Align wires on side of mounting plate with crescent shaped cut-out. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 40 10. Rotate the camera approximately 15 degrees to the right and lock firmly into place, as shown in the next illustration. Note: Do not loosen brass mounting buttons. Figure 5.11 Attach Dome to Mounting Plate F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 41 12. Secure the safety locking screw with the user supplied locking torx wrench (T-10). 13. Pull excess wire back into the mount tube. 14. Confirm that the housing is electrically grounded. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 42: Installing A Recessed Mount
Appropriate tool for cutting a hole in drywall or ceiling tile (if applicable) – 4 in. x 4 in. junction box (optional) – T-10 Torx wrench – LTC 9349MK mounting kit (optional) F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 43: Preparing The Ceiling For Installation
LTC 9349MK mounting kit is recommended (supplied separately). See the instruction book supplied with the mounting bracket for installation instructions. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 44 Ensure clamping plates are angled inward by pushing up and into the two slots. Bracket with plate should be in the lower position for AutoDome Easy II analog models. Figure 6.3 Adjust Mounting Clamps F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 45 (41.7 mm (1.64 in.) maximum ceiling thickness and 12.7 mm (0.50 in.) minimum ceiling thickness). Figure 6.4 Attach Recess Mount to Ceiling Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 46: Installing The Camera To The Mounting Plate
CAUTION! All wires for installation applications must be routed through a grounded conduit. Attach grounding wire from unit to the mounting bracket. Attach user supplied ground to junction box. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 47 Figure 6.6 Unlock Safety Locking Screw Plug the matching connectors from the camera into the mating connectors from the ceiling. Figure 6.7 Match Connectors Locking Screw Crescent Shape Mounting Plate Vertical Tab Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 48 Note: Do not loosen brass mounting buttons. Figure 6.9 Attach Dome to Mounting Plate Recess Mounting Bracket Mounting Plate Mounting Bracket Tether Point F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 49 14. Use supplied T-10 wrench to secure the trim ring’s two (2) safety locking screws to the mounting bracket. 15. Snap trim ring into place. Ensure snaps are secure by attempting to lightly turn unit. Note: Unit should not turn. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 50: Installing A Pipe Mount
Prolonged exposure to bright lights may cause bleaching of the sensor's color filters. This will be visible as colored spots in the picture and is irreversible. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 51: Tools/Supplies Required
Determine a secure hard surface location for the ceiling pipe mount (supplied separately). 88.8 (3.5) 88.8 (3.5) 736.0 (28.98) 3/4-14 NP 529.0 SM Threads (20.83) Ø11.2 (4x) (0.44) 429.0 (16.89) Ø153.0 Figure 7.1 Pipe Mount Dimensions Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 52 (11.8 in.), or combine the two (2) pipes with the integral coupler for 505 mm (20 in.). Outdoor Installation: Apply the following O-rings (supplied with the AutoDome Easy II Outdoor Camera) to the locations specified below: F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 53 Outdoor Installation: Ensure that the gasket is attached to the retaining ring. If the gasket and the retaining ring are separate: Locate the flat side of the gasket and the recessed side of the retaining ring. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 54 Figure 7.4 O-ring and retaining ring for outdoor installation O-ring; 21.82 mm I.D. by Ø3.00 mm Dome Cap Retaining ring with gasket M3 – .5 x 6 Phillips flat head machine screws F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 55 Outdoor Installation: Place the flat gasket (item 1, below) between the flange and the surface before securing. NOTICE! The fasteners and mounting surface must be capable of supporting a maximum load of 11.33 kg (25 pounds). Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 56 Figure 7.5 Attach Pendant Pipe Mount to Ceiling CAUTION! Select a rigid mounting location to prevent excessive vibration to the AutoDome Easy II Camera. 10. Attach user supplied ground lug. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 57 (3) screws supplied (Figure 1.6). Figure 7.6 Attach Mounting Plate to Dome Cap Crescent Shape Ground Lug Dome Cap Mounting Plate Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 58: Installing The Camera To The Mounting Plate
Figure 7.7 Unlock Safety Locking Screw Plug the matching connectors from the camera into the mating connectors from the ceiling. Align wires on side of mounting plate with crescent shaped cut-out. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 59 Rotate the camera approximately 15 degrees to the right and lock firmly into place, as shown in the next illustration. Note: Do not loosen brass mounting buttons. Figure 7.9 Attach Dome to Mounting Plate Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 60 11. Secure the safety locking screw with the user supplied locking torx wrench (T-10). 12. Pull excess wire back into the mount tube. 13. Confirm that the housing is electrically grounded. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 61: Preparing The Wiring
24 VAC to Heater 25 / 25 455 ft 287 ft 180 ft (139 m) (67 m) (55 m) Table 8.1 Max. Wire Distances from Power Supply to AutoDome Easy II Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 62: Connecting The Power
(all outdoor models), page 64 8.2.1 Power Connections to Indoor Cameras Figure 8.1 Power Cable Ref. # Wire Color 24 VAC / +12 VDC 24 VAC/GND Black User supplied Power Supply F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 63: Power Connections To Outdoor Cameras
Locate the cable assembly with a three (3) pin mating connector on one end and the red and black flying leads on the other end. Connect one lead of the 24 VAC power source to the black wire. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 64: Power Connections To Heater (All Outdoor Models)
Connect one lead of the 24 VAC power source to the white/black wire. Connect the other lead of the 24 VAC power source to the white/red wire. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 65: Video And Bilinx Cables
Bilinx control data can also be sent over the same cable. Bilinx is a Bosch 2-way communication protocol that allows remote control, configuration, and updates over a video coax cable. Bilinx is available on all AutoDome Easy II units.
Page 66: Connecting The Video
8.5.1 Biphase Biphase (Shielded 2-wire, half-duplex, multi-drop, 5000 ft. cable limit) is the standard Bosch protocol used to send Pan/ Tilt/Zoom control over 2-wire shielded twisted pair (STP) terminated with a 100 ohm terminal resistor. The AutoDome Easy II has a 100 ohm termination resistor between the Biphase C (+) and C (-) terminals.
Page 67: Direct Control
C (-)(Biphase) White/Green C (-)(Biphase) C (+) (Biphase) Yellow C (+)(Biphase) Ground White/Orange Shield RS485 (+) Blue Keyboard Cable RS485 (-) White/Blue Keyboard (i.e. LTC 5136) Reserved Violet Reserved Gray Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 68: Daisy Chaining
Connect the biphase (-) from the first camera white/green lead to the second camera white/green lead and secure. Repeat steps as required for up to four (4) cameras. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 69: Rs485
2-wire mode, although RS485 can be connected in a 2- or 4-wire mode. NOTICE! The wire shield must be tied to signal at both ends, if 2-wire twisted pair is used. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 70 | Preparing the Wiring AutoDome Easy II CAUTION! Bosch recommends that multiple RS485 connections be arranged as a connected series of point-to-point (multi- dropped) nodes, as a line or as a bus. It is not recommended to arrange RS485 connections as a star, ring or as a multiple- connected network.
Page 71: Alarms And Relay Connections
You wire alarms either Normally Open (N.O.) or Normally Closed (N.C.), and must program the alarm inputs N.O. (the default) or N.C. through the AutoDome Easy II main menu. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 72: Connecting Alarms (Inputs 1 Through 2)
Setup>Inputs Setup, and set Alarm Input # to N.O. See the table below for contact and condition details. AutoDome Easy II Programmed N.O. Circuit Alarm Indication Open Normal Closed Alarm F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 73: Connecting A Normally Closed Alarm
Setup>Inputs Setup, and set Alarm Input # to N.C. See the table below for contact and condition details. AutoDome Easy II Programmed N.C. Circuit Alarm Indication Open Alarm Closed Normal Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 74: Alarm Outputs
32 VDC @ 150 ma. Connect the appropriate stripped wire to the open collector of the transistor’s white wire. Connect the appropriate stripped wire to the ground (GND) connector. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 75: Getting Started
Using the AutoDome Easy II Configuration Tool software running on a PC with Bilinx communication protocol. Refer to the CTFID User Guide for instructions. – Using a Digital Video Recorder (DVR) such as the Bosch Divar XF version 2.00 or higher. Bosch Security Systems, Inc. Installation Manual...
Page 76: Basic Keyboard Operation
Move the joystick forward and back. To Zoom In Twist the joystick clockwise. To Zoom Out Twist the joystick counterclockwise. Table 10.2 Typical Keyboard Controls for an AutoDome Easy II Camera F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 77: Keyboard Commands
You may also want to customize some of the AutoDome Easy II default settings. NOTICE! You do not need to set a camera address if using Bilinx. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 78: Fastaddress
Press ON-999-ENTER to invoke an on-screen display of cameras on the system without an address. Follow the on-screen instructions. You receive an on- screen confirmation when the FastAddress is complete. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 79 FastAddress is complete. NOTICE! FastAddress is stored in nonvolatile memory and does not change if the power is turned off or if the default settings are restored. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 80: On-Screen Display Menu Navigation
Time Saver Tip: Scrolling through menus can be time consuming; to quickly return to “exit” prompt, just twist the joystick or use the zoom in feature. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 81 Accesses communication settings such as: AutoBaud and Setup Bilinx. Alarm Setup Accesses the alarm settings such as: inputs, outputs, and rules. Language Displays the language. Diagnostics Displays the status of diagnostic events. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 82: Camera Setup Menu
* Line Lock Delay: * Backlight Comp: * Shutter Mode: Auto SensUP * Shutter: 1/60 * Auto SensUP Max: * Pre-Comp Restore Defaults... * = Factory Setting Focus / Iris: Select F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 83 4=20db, 5=24db, 6=28db) gain control adjusts to when set to AUTO. Sharpness Adjusts the Sliding scale: – (0 to 16) + 12 sharpness level of the picture. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 84 SensUP on or SensUP off. Shutter Adjusts the Sliding scale: 1/60 sec. electronic – (1/60 (1/50) at extreme (NTSC) or shutter speed left to 1/10000) + 1/50 sec. (AES). (PAL) F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 85: Lens Setup
CONSTANT * Auto Iris Level: * Focus Speed: * Iris Speed: * Max Zoom Speed: FAST * Digital Zoom: Restore Defaults * = Factory Setting Focus / Iris: Select Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 86 Iris Speed Adjusts the Sliding scale: – (1 to 10) + manual iris speed. Max. Zoom Adjusts the SLOW, MEDIUM, or FAST FAST Speed manual zoom speed. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 87: Ptz Setup Menu
2 min * Autopivot: * AutoDome Orientation NORMAL * Freeze Frame On Preposition Tilt Up Limit Restore Defaults * = Factory Setting Focus / Iris: Select PTZ Menu Choices: Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 88 OFF: Remains on the period. current scene indefinitely. Inactivity Sets the time Sliding scale: – (3 sec. to 2 min. Period period of 10 min.) + inactivity before the above action occurs. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 89 Tilt Up Limit Moves the camera up, down, left, and right. Restore Restores the Defaults default setting for this menu only. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 90: Display Setup Menu
OFF: Titles are hidden. MOMENTARY the OSD ON: Titles are displayed displays sector continuously. or shot titles. MOMENTARY: Titles are displayed for a few seconds then disappear from the screen. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 91 Exit: Exits the menu. Blanking blanking of Sector (1-8: Press Focus/Iris selected to blank or clear a sector. sectors. Available sectors are 1 through 8. Follow the on- screen instructions. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 92 Shot or a Sector Title, page 93, for instructions. – Clear Scene to delete the selected scene title. Restore Restores the Defaults default setting for this menu only. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 93: Specifying A Shot Or A Sector Title
Move the joystick up to bring the cursor back into the character palette. To save the title: Use the joystick to highlight the Exit prompt. Press Focus/Iris to save the title. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 94: Communication Setup Menu
2400 to 57600. (Note: If stepping from 2400 to 57600 baud, you must first set the controller to 19200 for AutoBaud to detect the higher baud rate.) F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 95 57600. Then follow the OSD to confirm the selection. Bilinx Turns on Bilinx control Toggles ON or OFF. communication. (Only available when not connected to a Bilinx data interface unit.) Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 96: Alarm I/O Setup
4. Aux Off 5. Shot Front Door 6. Aux Off 7. NONE 8. NONE 9. NONE Focus / Iris: Select Type Focus / Iris: Select Right / Left: Select Mode F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 97 Front Door 3. Shot 4. Shot 5. Aux On 6. Transmit 2-12 Command 7. OSD Outputs 8. NONE 9. NONE Focus / Iris: Select Type Right / Left: Select Mode Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 98 Defines a physical N.O.: Normally N.O. output. open circuit N.C.: Normally closed circuit Outputs 2-12 Refer to Section 14 Keyboard Commands by Number, page 115 for available Aux commands. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 99: Alarm I/O Rule Setup Menu
8. Rule 8 Empty Physical Output 1 Follows 9. Rule 9 Empty Empty Aux On 78 Latched Empty NONE Empty Focus / Iris: Select Focus / Iris: Select Type Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 100 Setting Exit Saves and exits the menu. Enabled Turns the rule on or off YES to enable or NO to after its inputs and disable outputs have been defined. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 101 NOTICE! You can include up to four (4) Input and Output events in a single rule. Each input and output, however, must be true for the alarm's rule to be valid and enabled. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 102: Language Menu
Focus / Iris: Save and Exit Language Menu Choices: Menu Description Default Setting Exit Saves and exits the menu. Choose a language Select a language in which the system English displays the on-screen menus. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 103: Diagnostics Menu
Saves and exits the menu. Alarm Status Enters the Alarm Status menu Alarm Inputs 1 to 3, and displays the real time Alarm Output 1 status of alarm inputs and outputs. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 104 Displays the number of times the AutoDome Easy II lost Events: the home position. Restart Displays the number of restart events. Events Power Up Displays the number of power-up events. Events F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 105 Description Sub-menu / Description Video Loss Displays the number of time that video was lost. Events Total Time On Displays the total of time that the video was on. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 106: Common User Commands (Unlocked)
106 en | Common User Commands (unlocked) AutoDome Easy II Common User Commands (unlocked) This chapter details the commonly used Bosch keyboard setup commands. See Section 14 Keyboard Commands by Number, page 115, for a complete list of commands. 12.1 Setting AutoPan Mode AutoPan mode pans the AutoDome Easy II camera 360º...
Page 107: Configuring Preposition Tours
Use the Focus/Iris buttons to add or remove the selected scene from the tour. To change the dwell period of a tour: Press ON-15-ENTER to access the Tour Period Menu. Follow the on-screen instructions. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 108: Programming The Inactivity Operation
Press ON-101-ENTER to start recording the tour. Press OFF-101-ENTER to stop the tour. To playback Recorded Tour B: Press ON-52-ENTER to begin continuous playback. Press OFF-52-ENTER or move the joystick to stop playback. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 109: Pelco On-Screen Menus
Camera Setup PTZ Setup Edit Password *FastAddress: Not Set Advanced Software Version Ack and Reset Alarms Restore All Settings Reset All Memory * = Factory Setting Focus / Iris: Select Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 110 AutoDome Easy II memory. NOTICE! After a period of 4.5 minutes of inactivity, the OSD menu times- out and exits without warning. Some unsaved settings can be lost! F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 111: Command Lock (Locked)
AutoDome Easy II displays the on- screen message: “Command is Locked.” 13.1.2 Bosch Menu (locked) The Bosch Menu allows full access to the AutoDome Easy II main Setup Menu and all AutoDome Easy II configuration settings. Pelco menu...
Page 112 Night Switches from color ON: Sets Night Mode on. Mode to monochrome. OFF: Sets Night Mode off. (Day/Night AUTO: Sets Night Mode to models Auto set. only) F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 113: Ptz Setup (Unlocked)
Sliding scale: – 30°/sec. Autopan and (1°/sec to 60°/sec) + AutoScan speeds. Edit Presets Modifies preset 1-99 scenes scenes. Limit Stops Toggles the Limit ON or OFF Stops for AutoScan. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 114: Other Menus
(locked) factory default settings. Reset All Memory Restores all settings to their original (locked) factory default settings and clears all user programmed settings such as preset scenes and recordings. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 115: Keyboard Commands By Number
Set Pre- Enters dwell position Tour adjustment slide bar Period (dwell) On/Off AutoPivot Enables/disables Enable AutoPivot On/Off Backlight Backlight Comp Compensation On/Off Electronic Enters Shutter Shutter Speed slide bar Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 116 On/Off Playback A, Activate/Deactivate Single On/Off Playback B, Activate/Deactivate Continuous On/Off Playback B, Activate/Deactivate Single On/Off Command On–lock on Lock/Unlock Off–lock off On/Off On Screen On–enable Display Off–disable F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 117 On/Off Alarm Output On–activates output Off–deactivates output On/Off Sector Enters Sector Blanking Blanking menu On/Off Privacy Enters Privacy Masking Masking menu On/Off Command On–lock on Lock/Unlock Off–lock off Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 118 Set/ Autopan left Set–programs left Shot limit limit Shot–shows limit Set/ Autopan right Set–programs right Shot limit limit Shot–shows limit Factory P/T Set–recalibrate home home position position F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 119 901- Adds/ Set ###–adds preset Shot Removes a Shot ###–removes preposition preset shot from Tour 1 *Commands perform the same function Aux 55 is required for older Allegiant systems. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 120: Preventive Maintenance
Do not scrape the bubble with razor blades or other sharp instruments. – Do not use Benzene, Gasoline, Acetone, or Carbon Tetrachloride on the bubble. – Do not clean bubbles in direct sunlight or on very hot days. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 121: Troubleshooting
Set the synchronization mode to INT.NTSC Model power frequency in LL mode: 60 Hz. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 122: Autodome Easy Ii Operation And Control
Check that the Yellow LED, located on the top of the AutoDome Easy II unit, turns on when receiving pan/tilt commands from the controller keyboard. The Yellow LED indicates data is being received. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 123 – Check that the maximum wire distance has not been exceeded for the control protocol. If O.K., then: – Check that all wiring meets Bosch recommended standards and specifications. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 124 Check that the camera lens cover is removed. If O.K., then: – Check that the maximum coax distance has not been exceeded. If O.K., then: – Restore all camera settings (ON-40-ENTER). F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 125 Check that the maximum coax distance has not been exceeded. If O.K., then: – Check the integrity of all BNC connectors and splices. If O.K., then: – Contact Bosch Technical Support. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 126: A Alternative Control Protocols
Pelco-P addresses above 32 are repeated in multiples of 32 (1, 33, 65, 97 are the same). Pelco-D addresses above 254 are repeated in multiples of 254 (1, 255, 509, 763 are the same). F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 127: A.2 Pelco Protocol Mode
AutoDome Easy II responds to Pelco-D or Pelco-P protocol commands. NOTICE! The AutoDome Easy II supports only the RS-485 protocol while in Pelco mode. It does not transmit responses back to the controller. Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 128: A.2.1 Hardware Configuration
To save a preset, enter the desired number and hold the PRESET key for approximately two (2) seconds. To recall a preset, enter the desired preset number (or command) and momentarily press and release the PRESET key. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 129: A.2.3 Pelco Keyboard Commands
Press Activates / deactivates alarm relay. / Aux Off 91 – Aux Press Activate Zone Scan (display zone titles). 92 – Aux Press Deactivate Zone Scan (re-move zone titles) Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 130: A.2.4 Special Preset Commands
99-PRESET Starts an AutoScan NOTICE! Some Pelco controllers do not support all the preset command numbers. Consult the specific Pelco controller's documentation for supported preset commands. F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 131: Index
83 contact 97 pre-compensation 85 alarm status 103 sharpness 83 auto focus 86 shutter 84 auto iris 86 synchronization menu 84 autobaud 94 white balance 83 Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 132 130 recording tours 108 Set 106 Set Shot 77 SET-100-ENTER 107 Shot 106 Show Shot 77 store 107 synchronization mode 130 unlocked 106 user commands 106 zero pan 130 F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 133 66 homing failed 104 high temperature internal temperature 104 events 104 low temperature events 104 threshold 104 restart events 104 security access 104 video loss events 105 Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 134 Rule Setup 99 SET-100-ENTER 107 Setup 111 Shot 106 Tour Period 107 Shot Shot 77 mounting plate 57 multiplexer 20 Language menu 81 networking baud rate 95 night mode 112 F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 135 Pelco-D 127 Pelco-P 127 Pelco 109 FastAddress 127 keyboard commands 128 menus 109 mode 127 PRESET command 128 protocol 127 random scan 130 Setup menu 130 Pelco frame scan 130 Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 136 107 enabled 100 preset shot 106 follows 101 preset tour 130 input 101 previous Aux 88 OSD 101 privacy masking 92 output 101 Shot 101 status 100 transmit 101 F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 137 61 clear 107 control 61 set 106 power 61 store 107 video 61 view 106 Show 77 Show Shot 77 zero pan 130 shutter 84 shutter mode 84 Bosch Security Systems, Inc. Installation Manual F.01U.164.478 | 2.0 | 2010.02...
Page 138 138 en | Index AutoDome Easy II F.01U.164.478 | 2.0 | 2010.02 Installation Manual Bosch Security Systems, Inc.
Page 140 Bosch Security Systems, Inc. 850 Greenfield Road Lancaster, PA 17601 U.S.A. www.boschsecurity.com © Bosch Security Systems, Inc. , 2010; Data subject to change.

Bosch VEZ Series Installation Manual

1 Safety

2 Unpacking

3 Description

4 Installing a Surface Mount

5 Installing a Wall Mount

6 Installing a Recessed Mount

Installing a Pipe Mount

Preparing the Wiring

Alarms and Relay Connections

Getting Started

On-Screen Display Menu Navigation

Common User Commands (Unlocked)

Pelco On-Screen Menus

Keyboard Commands by Number

Preventive Maintenance

Troubleshooting

Index

Quick Links

Need help?

Questions and answers

Related Manuals for Bosch VEZ Series

Summary of Contents for Bosch VEZ Series

Table of Contents
