I Mounting Plate Attachment; I Mounting Descriptions - Icom ID-RP1 Instruction Manual

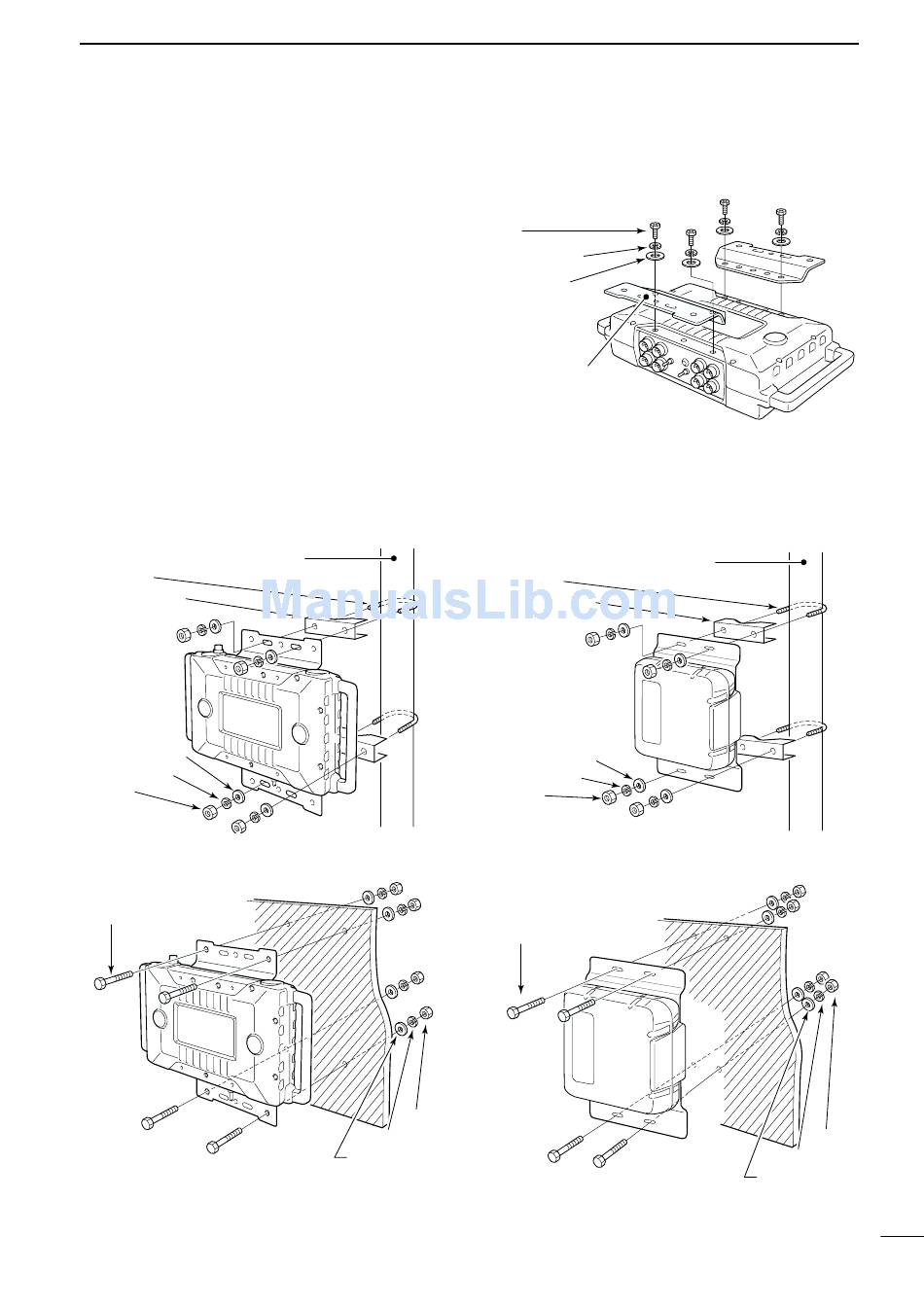

I Mounting plate attachment

Attach the supplied mounting plates onto ID-RP1D, ID-
RP1VS, ID-RP1L, notch filter, canceller and duplexer
unit as illustrated at right.

I Mounting descriptions

D D ID-RP1D/VS/L
• Mounting to a pole
1
Pole (32–60 mm; 1 ⁄ –2
4
U-bolt
Pole clamp
Flat washer
S-washer
Nut
• Mounting onto a wall
Hex-head bolt
"
3
⁄ (d))
8
Nut
S-washer
Flat washer
CONNECTIONS AND INSTALLATIONS
• Example— ID-RP1D
Bolt
Spring washer
Flat washer
Mounting plate
D D Notch filter/Duplexer/Canceller unit
• Mounting to a pole
1
Pole (32–60 mm; 1 ⁄ –2
4
U-bolt
Pole clamp
Flat washer
S-washer
Nut
• Mounting onto a wall
Hex-head bolt
"
3
⁄ (d))
8
Nut
S-washer
Flat washer
2
5
