CONNECTIONS AND INSTALLATIONS

I Connections

RDANGER
ID-RP1 is intended for professional installation only.
We are not responsible for any building breakage, any
damage resulting from a drop of ID-RP1 from a high
place or unstable site or resulting from any personal
injury nor any accident in any other cases. If ID-RP1 is
must be installed at such high place or unstable site,
be sure to consult an expert engineer.
IMPORTANT: Use the supplied connection cables
ONLY. NEVER extend the cables— system or com-
munication error may occur.

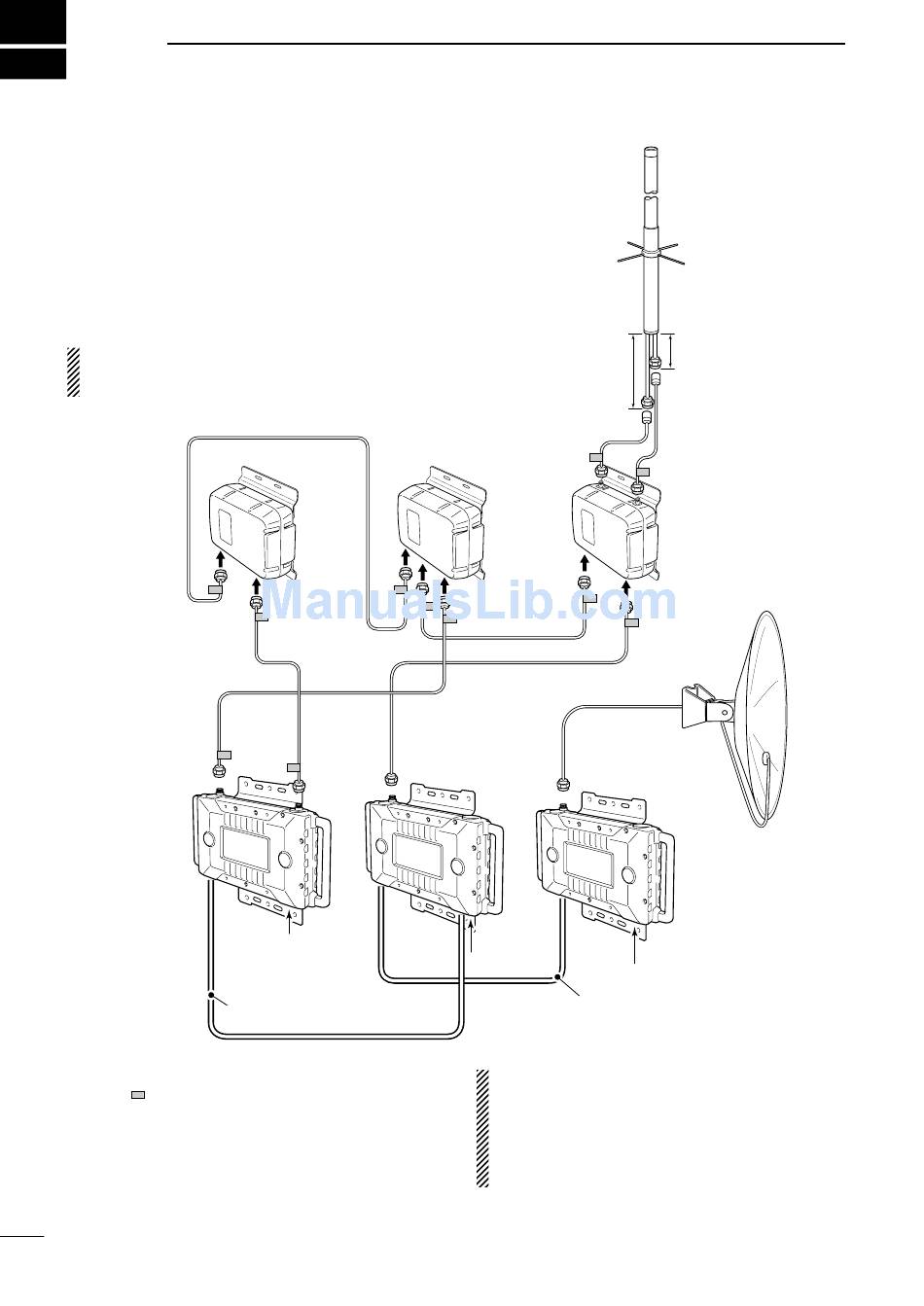

to [toDUP]
to [TX]
ID-RP1VS
to
[CONT I/O]
✔ For your convenience
A label (" " mark in the diagram above) is attached
near the connector on the supplied coaxial cable to
specifying the connection for guidance.
*Connecting connector can be selected with the ID-RP1D
maintenance application. (See page 19) Before operating
the repeater system, programming is necessary for both the
ID-RP1D and the ID-RP1VS.
4
Notch
filter
unit
to [toRX]
to [LOW]
to [RX]
to
[DATA A]*
13.8 V DC
[CONT B]
1 m (3.3 ft) twist pair cable
(supplied with the ID-RP1VS)
Long
to [V_ANT]
Duplexer
unit
to [VOICE]
to [HIGH]
to [COM]
ID-RP1D
to
[DATA I/O]
to
13.8 V DC
13.8 V DC
2 m (6.6 ft) twist pair cable
(supplied with the ID-RP1L)
CAUTION!: NEVER turn the ID-RP1L power ON
without connecting the parabolic antenna. The ID-
RP1L starts transmission after power ON. Trans-
mission without antenna may damage the ID-RP1L.
IMPORTANT: After the connections, turn the ID-
RP1D power ON first to prevent system error.
AH-1415
Short
to [D_ANT]
Canceller
unit
to [DATA]
AH-1045/1080
ID-RP1L
