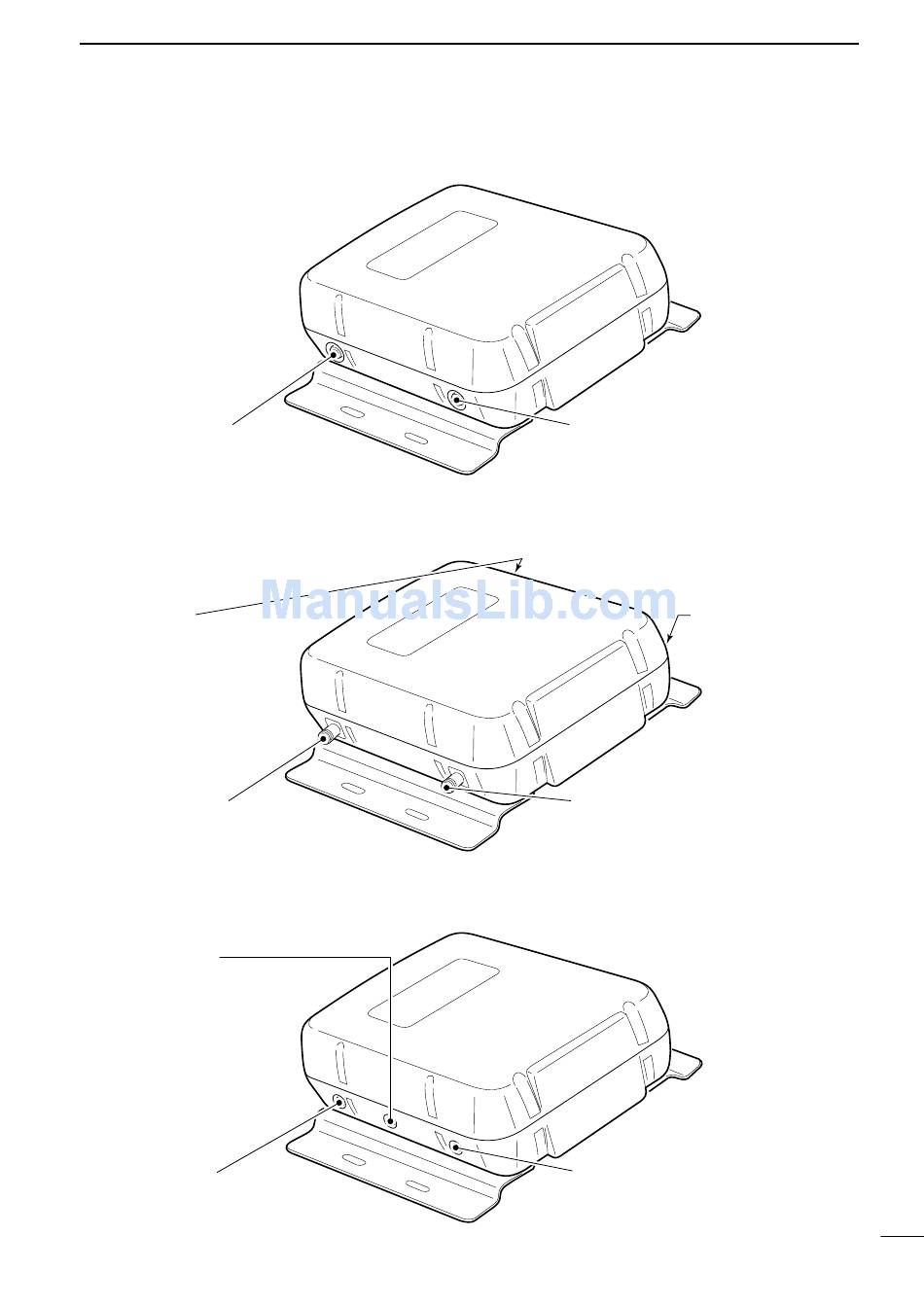

I Notch filter unit (EX-2659)
[toDUP]
Connect to the duplexer
unit [LOW] connector.
I Canceller unit (EX-2660)
[V_ANT]
Connect the long antenna
cable from the AH-1415.
[VOICE]
Connect to the duplexer
unit [COM] connector.
I Duplexer (EX-2661)
[COM]
Connect to the canceller
unit [VOICE] connector.
[LOW]
Connect to the notch filter
unit [toDUP] connector.
PANEL DESCRIPTION
[toRX]
Connect to the ID-RP1VS
[RX] antenna connector.
[D_ANT]
Connect the short antenna
cable from the AH-1415.
[DATA]
Connect to the ID-RP1D
antenna connector.
[HIGH]
Connect to the ID-RP1VS
[TX] antenna connector.
1
3
