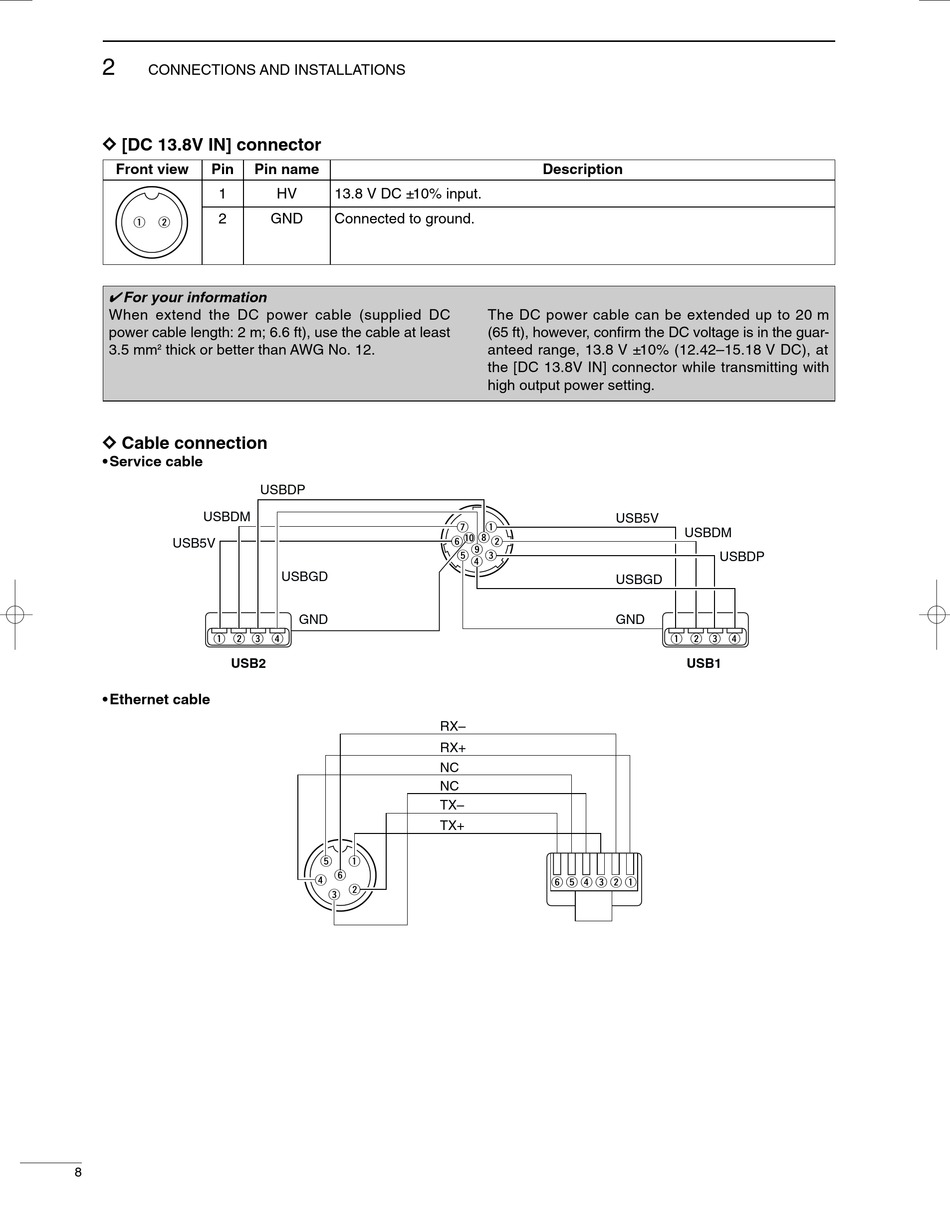

CONNECTIONS AND INSTALLATIONS
D D [DC 13.8V IN] connector
Front view Pin
1
2
q w
✔ For your information
When extend the DC power cable (supplied DC
power cable length: 2 m; 6.6 ft), use the cable at least
3.5 mm 2 thick or better than AWG No. 12.
D D Cable connection
• Service cable
USBDM
USB5V
q w
USB2
• Ethernet cable
8
Pin name
HV 13.8 V DC ±10% input.
GND Connected to ground.
USBDP
USBGD
GND
e r
t q
y
r
w
e
Description
The DC power cable can be extended up to 20 m
(65 ft), however, confirm the DC voltage is in the guar-
anteed range, 13.8 V ±10% (12.42–15.18 V DC), at
the [DC 13.8V IN] connector while transmitting with
high output power setting.
u q
y !0 i
w
o
t e
r
RX–
RX+
NC
NC
TX–
TX+
y t r e
USB5V
USBDM
USBDP
USBGD
GND
q w
e r
USB1
w q
