5

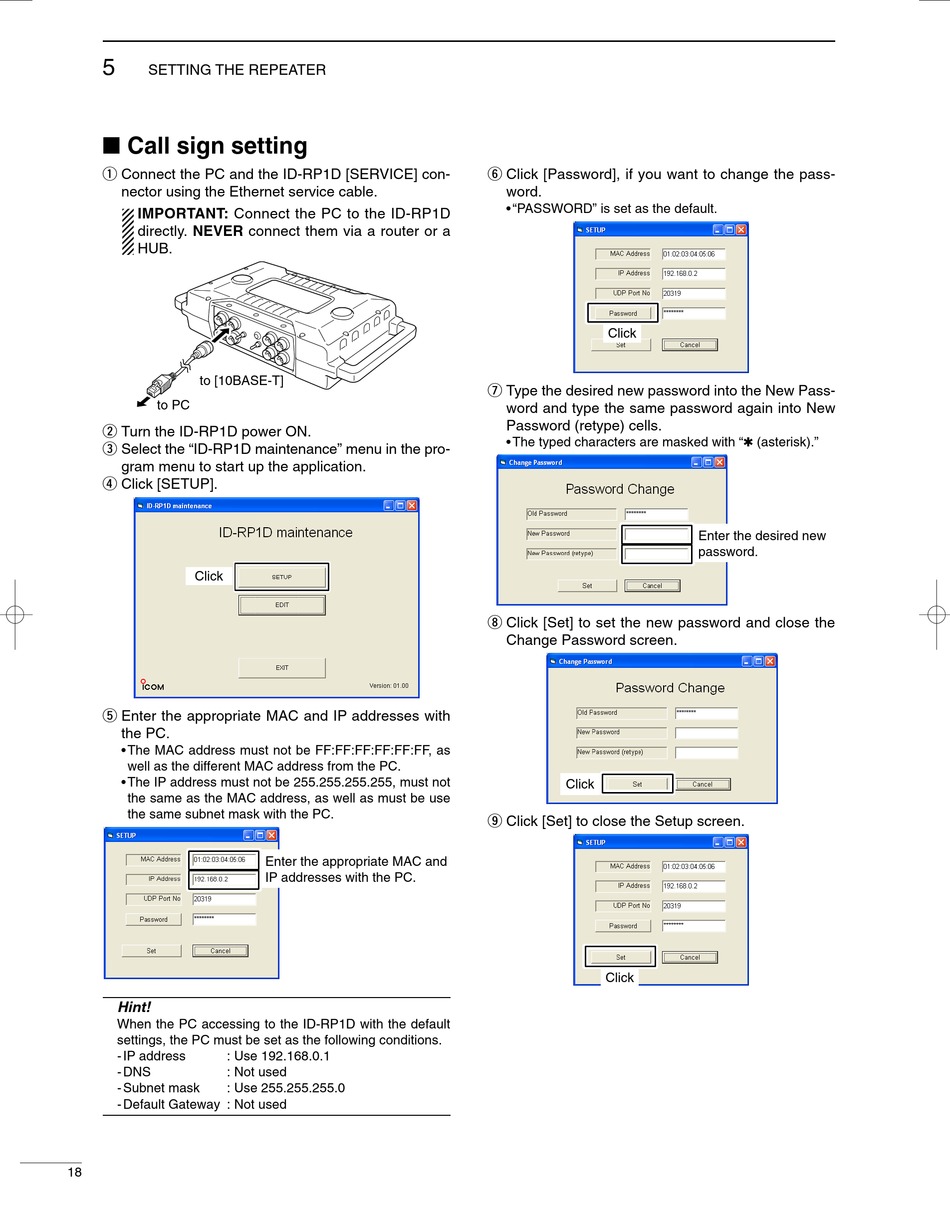

SETTING THE REPEATER

I Call sign setting

q Connect the PC and the ID-RP1D [SERVICE] con-
nector using the Ethernet service cable.
IMPORTANT: Connect the PC to the ID-RP1D
directly. NEVER connect them via a router or a
HUB.
to [10BASE-T]
to PC
w Turn the ID-RP1D power ON.
e Select the "ID-RP1D maintenance" menu in the pro-
gram menu to start up the application.
r Click [SETUP].
Click
t Enter the appropriate MAC and IP addresses with
the PC.
• The MAC address must not be FF:FF:FF:FF:FF:FF, as
well as the different MAC address from the PC.
• The IP address must not be 255.255.255.255, must not
the same as the MAC address, as well as must be use
the same subnet mask with the PC.
Hint!
When the PC accessing to the ID-RP1D with the default
settings, the PC must be set as the following conditions.
- IP address : Use 192.168.0.1
- DNS : Not used
- Subnet mask : Use 255.255.255.0
- Default Gateway : Not used
18
Enter the appropriate MAC and
IP addresses with the PC.
y Click [Password], if you want to change the pass-
word.
• "PASSWORD" is set as the default.
Click
u Type the desired new password into the New Pass-
word and type the same password again into New
Password (retype) cells.
• The typed characters are masked with "✱ (asterisk)."
i Click [Set] to set the new password and close the
Change Password screen.
Click
o Click [Set] to close the Setup screen.
Click
Enter the desired new
password.
