America's Barbecue Grill Superstores
Grill Information Center:
missing parts when you unpack this unit from the shipping boxes, call us 8am - 4:30 pm PST,
Monday through Friday at: 1-800-474-5587
!
WARNING:
Read this Owner's Manual carefully and be sure your
gas grill is properly assembled, installed and
maintained. Follow all leak check procedures care-
fully in this manual prior to grill operation. Do this
even if the grill was store assembled.
follow these instructions could result in serious bodily
injury and/or property damage. This grill is intended for
outdoor use only and is not intended to be installed in
or on recreational vehicles or boats.
Note to Installer:
with the consumer after delivery and/or installation.

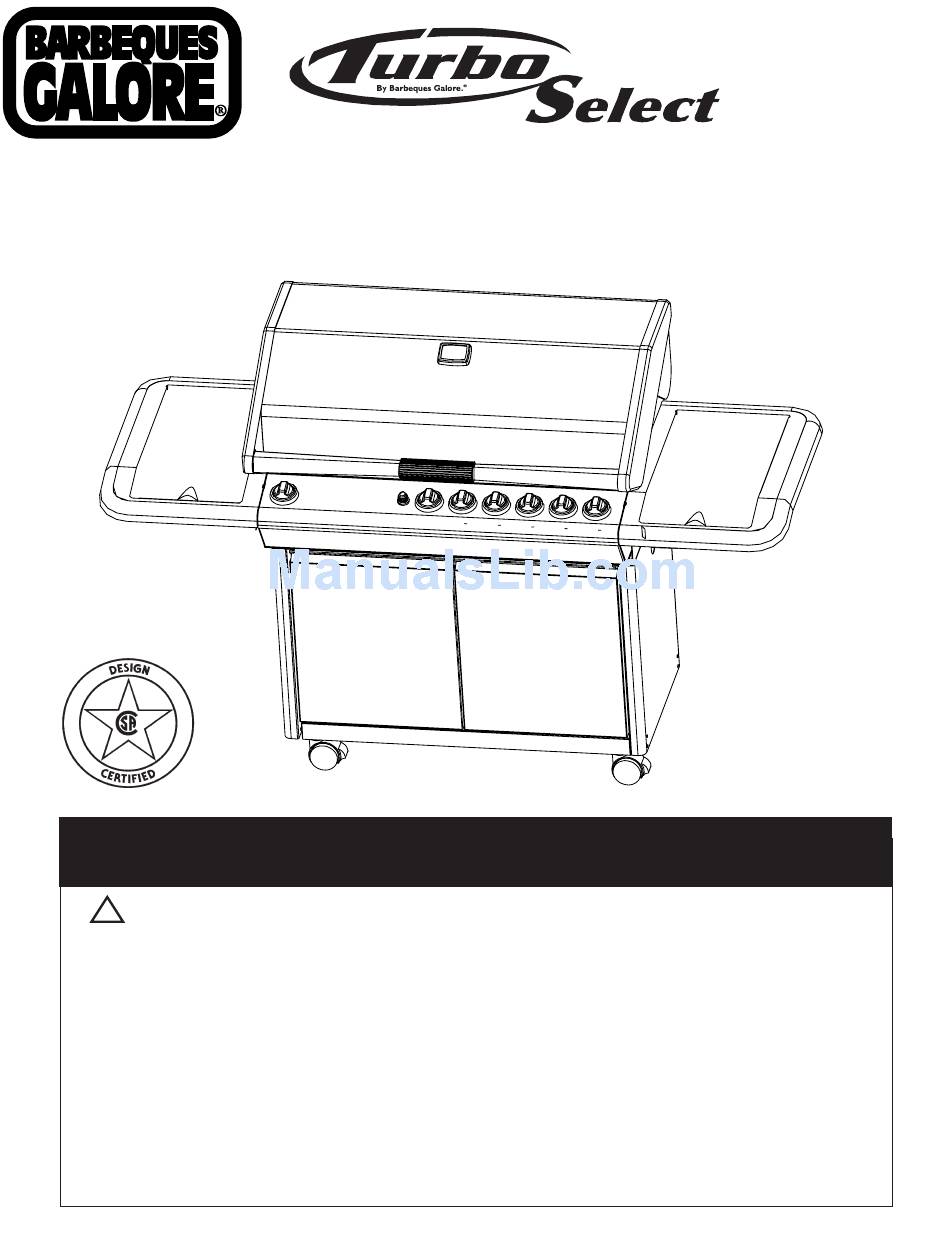

Owner's M anual
G5STR/G5STRN, G6STR/G6STRN
If you have questions about assembly or grill operation, or if there are damaged or
Failure to
Leave this Owner's Manual
Note to Consumer:
Leave this Owner's Manual in
a convenient place for future reference.
Important Note:
This grill is manufactured to
exact specifications. Model Turbo Select LP is
certified for use with LP gas and Model Turbo Select
NG is certified for use with Natural Gas. You cannot
convert this grill from one fuel type to the other.
For your safety, conversion kits are available but
can only be installed by a BBQ Galore technician.
Any attempt to convert your grill will void your
warranty.
Manufacturer:
Barbeques Galore Inc.
10 Orchard Road, Suite 200
Lake Forest, CA. 92630
P 80151082A - Date : 09/25/03
Advertisement
Table of Contents
Related Manuals for Barbeques Galore Turbo select G5STR
Summary of Contents for Barbeques Galore Turbo select G5STR
- Page 1 America's Barbecue Grill Superstores Owner's M anual G5STR/G5STRN, G6STR/G6STRN Grill Information Center: If you have questions about assembly or grill operation, or if there are damaged or missing parts when you unpack this unit from the shipping boxes, call us 8am - 4:30 pm PST,...
- Page 3 • The LP gas tank has a Shut Off Valve, The Regulator and Hose assembly must be terminating in an LP gas supply tank valve inspected before each use of the grill. If there outlet, that is compatible with a Type 1 tank is excessive abrasion or wear or if the hose connection device.
- Page 4 Natural Gas Safety Instructions • F igure 1 Y our Natural G as G rill is des igned to operate on N a tura l G a s only, a t a pre s s ure of 7" wa te r (F or Natural G as Model O nly ) column (W.C .) (1/4 ps ig or 1.75 kpa), regulated at the res idential meter.
- Page 5 Pre-Assembly Instructions CAUTION: BEWARE OF FLASH-BACK To reduce the chance of "FLASH-BACK" (see CAUTION: Spiders and small insects occasion- CAUTION at left) clean the Burner Tubes and ally spin webs or make nests in the grill burner Burners before fully assembling your grill. Remove tubes during transit and warehousing.
- Page 6 "AAA" B a tteries - Q T Y . 2 3/16" x 3/8" P hillips H ea d S crew - Q T Y 2 Barbeques Galore Information: If you have questions about assembly or grill operation, or if there are damaged...
- Page 7 6B Parts Diagram Remove all components from both cartons and place within easy reach. Turn the largest carton upside down and it will provide a comfortable height work surface for grill assembly.
- Page 8 6B Parts List REF# DESCRIPTION PART# QTY. REF# DESCRIPTION PART# QTY. P00118026A Side Panel, Left Lid Plate P01102003G P00607211C Heat Indicator Side Panel, Right P01103003G P00417001C Name Plate Door Plate,Left P04302001A P00127017J Lid Side Panel, Left Door Plate,Right P04303001A P00128017J Castor Lid Side Panel, Right P05115020A...
- Page 9 5B Parts Diagram Remove all components from both cartons and place within easy reach. Turn the largest carton upside down and it will provide a comfortable height work surface for grill assembly. 17-1...
- Page 10 5B Parts List REF# DESCRIPTION PART# QTY. REF# DESCRIPTION PART# QTY. P00118056A P01102003G Lid Plate Side Panel,Left Heat Indicator P00607211C Side Panel,Right P01103003G P00417001C Door Plate,Left P04302002A Name Plate P00127017J Door Plate,Right P04303002A Lid Side Panel, Left P00128017J P05115020A Lid Side Panel, Right Castor Lid Handle P00206002B...
- Page 11 Figure 1 Cart Assembly Instructions Remove all cart parts, hardware, and Grill Head from shipping boxes. Raise the Grill Lid and remove all GRILL BOWL packed components. Use the parts list to check that all necessary parts have been included. Assemble the gas grill on a protective work surface to avoid scratching grill surfaces.
- Page 12 5. Locate the Male F itting of connection from S ide B urner. F eed the Male F itting through the hole on the right S ide P anel. C onnect the Male F itting to the Quick Disconnect F itting (under the rear side of the grill bowl) as s hown in F igure 3 &...
- Page 13 1. Unscrew the Ignitor Cap located on the Grill Control following common causes. If you need Panel and remove the Contact and Spring from the assistance call Barbeques Galore Info Ignitor Slot. Center at 1-800-474-5587. 2. Place the manufacturer supplied AA battery into the Ignitor AA battery not installed properly.
- Page 14 & lower ground-level vents (20 sq. in. minimum each) MUST BE PROVIDED on both sides of built-in construction. Please ask a Barbeques Galore associate for full details. Built-in Instructions 1. Attach Left and Right Side Trim Kit on either side of the barbecue. Use 3 of 1/4"x 3/4" Phillips head screws for each side.
- Page 15 Figure 9 LP Gas Installation Natural Gas Installation Figure 10 Rear Trim Left Trim Clamp down flexline Right Trim Access must be provided to Shut-off Valve Air Vents Stainless Figure 11 Natural Gas models only Flexline CSA Approved Rubber Gas Hose Non-combustible Construction 3/8 FF - 1/2 MP...
- Page 16 Fuel Gauge Display Installation. (LP Only) IMPORTANT: Before installing batteries be sure the gas tank is not mounted in the tank pull-out tray. 1. Attach the Tank Gauge Bracket on the Bottom Shelf. Using 4 of 1/2" x 3/4" Phillips Head BOTTOM SHELF Screws to fixing the Tank Gauge.
- Page 17 Rotisserie Instruction 1.Attach the motor bracket on the outside of the right grill bowl panel. Align the two holes on the grill bowl panel. Tighten securely using two #10-24 UNC x 3/4" MOTOR BRACKET screws, flat washers and nuts provided. 2.
- Page 18 Disconnecting A Liquid Propane Gas (LP gas) Connecting A Liquid Propane Gas (LP gas) Tank From Your Grill Tank To Your Grill Turn the Burner Valves and LP Gas Tank Valve to the full OFF position (turn clockwise to 1. Check the Tank Valve to insure it has proper close).
- Page 19 This purging procedure should be done every time a new LP gas tank is connected to your grill. For help call the Barbeques Galore Infoline for assistance. Customer Service Helpline, 8:00am - 4:30pm PST Monday through Friday at 1-800-474-5587.
- Page 20 • Misalignment of Ignitor on Burner Manually Lighting Your Grill by Match Correction: Check for proper position of the To light your gas grill by match, Follow steps 1 Electrode Tip as shown on page 15. The gap through 6 of the Basic Lighting Procedures. Then, b e t w e e n t h e S p a r k E l e c t r o d e T i p a n d light the match and place near the top end of Spark Receiver should be approximately...
- Page 21 B ac k B urner L ighting Ins truc tions Us ing y our Infrared B ac k B urner and R otis s erie Note: T he location of the B ack B urner makes it more susceptible to winds that will decrease the performance of your R otis s erie cooking.
- Page 22 Cleaning and Maintenance Cover each gas Valve Orifice with aluminum foil. Brush the inside and bottom of the grill with a brass Keeping outdoor cooking gas appliance area clear and wire brush or fiber cleaning pad, and wash with a free from comustible materials, gasoline and other mild soap and warm water solution.
- Page 23 Regardless of which Burner cleaning procedure you Cleaning The Burner Tubes and Burner Ports use, we recommend you also complete the following To reduce the chance of "FLASH-BACK" you must steps to help prolong Burner life. clean the Burner Tubes at least once a month in late Use a wire brush to clean the entire outer surface of summer or early fall when spiders are most active each Burner until free of food residue and dirt.
- Page 24 Close off gas supply at source and reconnect fuel line or scrubbers. Routine cleaning to remove dirt, grease to your grill.If an obstruction is suspected in the and oils will help discourage Lid discoloration. Orifice or Gas Valves, call Barbeques Galore at 1-800-474-5587.
- Page 25 Indirect Cooking Cooking Instructions The indirect cooking method can also be used with the supplied cooking grids. To cook indirectly, the food should be placed on the left or right side of your grill with the burner lit on the opposite side. Indirect WARNING cooking must be done with the lid down.
- Page 26 Guide to Grilling Meat and Poultry with the Direct Cooking Method Grilling Steak and Ribs Cut of Meat Approximate Cooking Times Turn the grill Burners on high, close the Lid T-bone steak Rare: 4-8 minutes and preheat your grill 3 to 5 minutes. Open Lid Sirloin steak Medium: 10-14 minutes and place the meat on the Cooking Grid...
- Page 27 Guide to Grilling Fish and Seafood with the Direct Cooking Method Whole Fish and Whole Fillets Cut of Meat Approximate Cooking Times Preheat your grill on HIGH for 2-3 minutes Whole fish 10 - 12 minutes per pound or with the Lid down. Raise Lid and turn Whole fish fillets until fish is opaque Burners to medium heat.
- Page 28 Guide to Slow Roasting and Baking Techniques An Important Note About Heat Settings Food Preparation The suggested heat settings shown are approximate. Trim meat of excess fat. Truss meat and poultry with There are many factors such as outside temperature, cooking string to retain shape if desired.
- Page 29 Guide to Rotisserie Cooking Rotisserie Cooking Note: it is our experience that many smoking chip and pellet products do not actually produce a smoke but Rotisserie cooking produces foods that are moist, instead infuses the food with flavor. Please read product flavorful and attractive.
- Page 30 Guide to Stir-Frying and Deep-Frying STIR-FRYING TECHNIQUES DEEP-FRYING TECHNIQUES This method of cooking is popular around the world and A wide variety of foods can be deep-fried outdoors can be easily accomplished outdoors on your grill. It's on your grill, from potatoes, to seafood and chicken. a quick and healthful way of preparing a complete meal Deep-frying uses a large portion of oil, preferably using meat, poultry or seafood in infinite combinations...
- Page 31 teaspoon salt Recipes 1 1/2 pounds lean ground beef cups shredded lettuce cup finely shredded cheddar cheese ONION BURGERS cup dairy sour cream and /or guacamole A honey and mustard sauce glazes the onion slices as they cook alongside these delicious burgers. For optimal Preparing the Salsa sweetness, select Vidalia or Walla Walla onions.
- Page 32 RIB EYE STEAKS WITH GRILLED GARLIC Preparation As they cook, the garlic cloves mellow in flavor, making Combine ketchup, pepper, rosemary, basil and a delicious sauce for any grilled meat. And for an garlic powder. Coat both sides of steak with mixture. appetizer, spread the softened cloves over toasted slices Grill steak with lid up, directly over medium heat M a k e s 4 s e r v i n g s .
- Page 33 MARINATED TUNA STEAK Preparation Experiment with unique dishes, like this tuna steak Combine thawed fish, margarine or butter, lemon recipe boasting a delicious wine marinade! juice, mustard and basil into a cooking pan or Makes 4 servings. aluminum foil rectangle, and cook directly over low flame until melted.
- Page 34 SOUTHWEST CHICKEN BREASTS BARBECUED CHICKEN This popular recipe can also be a grilled chicken salad! Another backyard favorite, this recipe includes an easy Slice chicken into small strips and place them on top to make, sweet and spicy sauce. Makes 4 servings. of shredded lettuce with avocado dressing and top with cheese! Makes 6 servings.
- Page 35 TRADITIONAL HOLIDAY TURKEY PIZZA ON THE GRILL Imagine everyone's surprise when you serve your next You may never want to call out for pizza again! Follow holiday turkey—complete with dressing—delicious and this pizza dough recipe, or purchase ready-made pizza dough found in your grocers refrigerated section—next to Serves 8 - 10 tender straight from the grill! the biscuits.
- Page 36 GRILLED POTATO SKINS FRESH VEGETABLE STIR-FRY Serve these crispy potatoes as a snack or side dish. Take a trip to the Orient with this easy, and healthy We've included microwave instructions for a timesaving vegetable recipe. Makes 4 - 6 servings. short cut.
