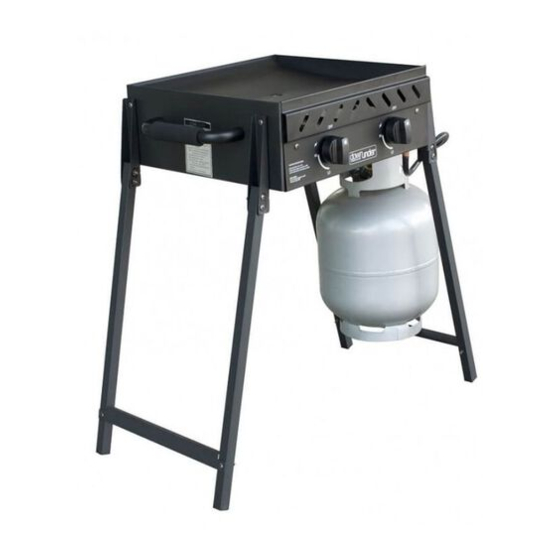

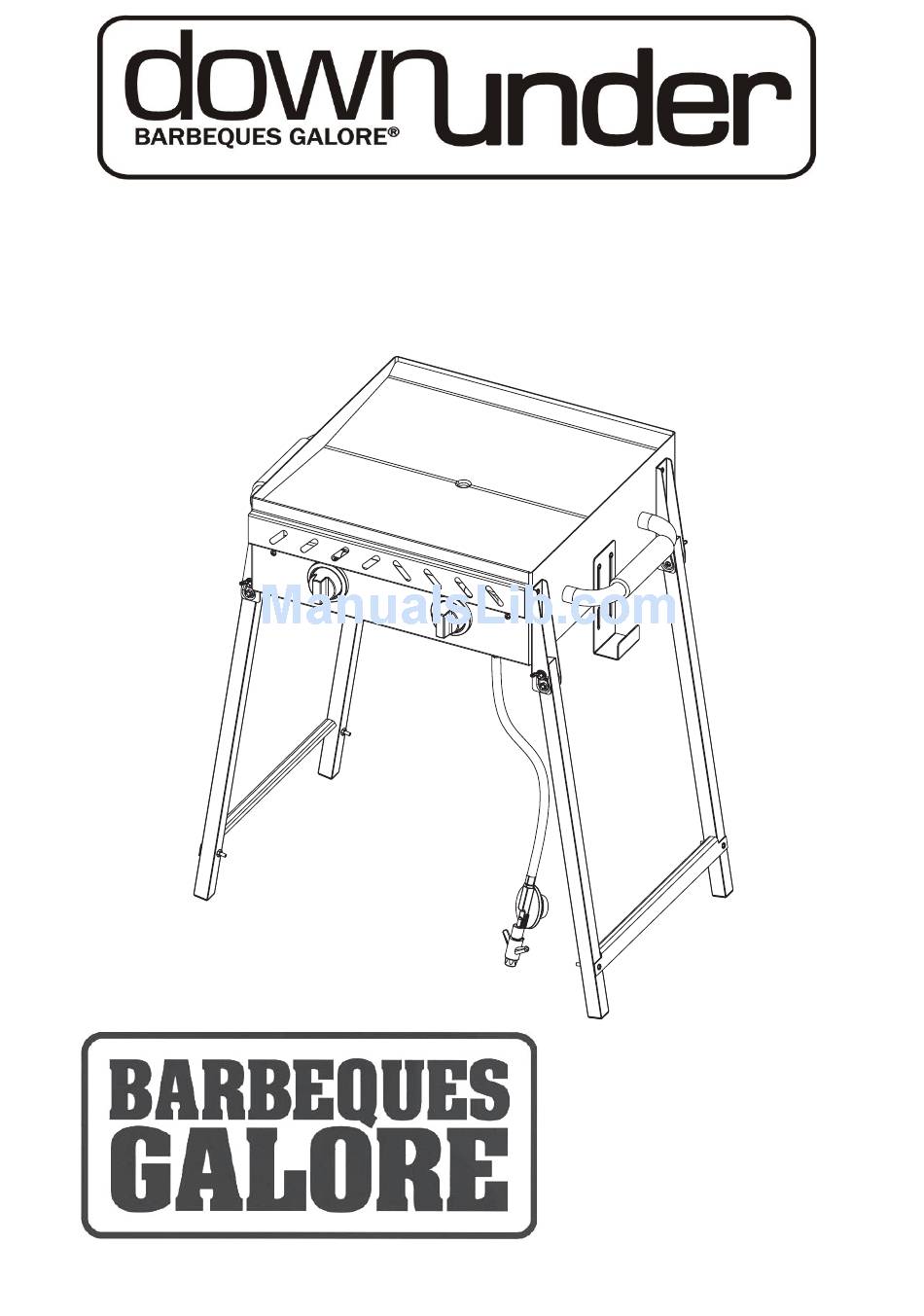

- Page 1 INSTRUCTIONS For safe use and enjoyment of your new barbeque 2 Burner Solid Hotplate Barbeque With Folding Legs (G2DLK)
- Page 2 IMPORTANT HEALTH & SAFETY INFORMATION 1. WARNING FOR OUTDOOR USE ONLY ! DO NOT USE INDOORS • Please read these instructions carefully prior to assembly and use. • Failure to follow these instructions could lead to serious injury and/or significant damage to property.
- Page 3 4. PRECAUTIONS BEFORE FIRST TIME OPERATION AND AFTER EACH GAS CYLINDER EXCHANGE/REFILL ALL CONNECTIONS SHOULD BE CHECKED FOR GAS LEAKS • Connections can be checked for leaks by using a soapy water solution as described in section 4 Precaitionary Leak Test. • Naked flames (matches or other open flames) must not be used to check for leaks, this is a dangerous practice to be avoided.
- Page 4 ASSEMBLY INSTRUCTIONS PARTS LIST PART PICTURE QUANTITY ITEM DESCRIPTION Fire-Box Assembly Leg Support Bracket Leg Cross Brace Gas Cylinder Hook Heat Insulation Panel Handle Grease Cup Regulator and Hose...
-
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS FASTENERS PART ITEM DESCIRPTION QUANITITY PICTURE M6 X 12MM SHORT PHILLIPS HEAD SCREW M6 STEEL WASHERS M6 NUTS M6 WING NUTS M6 X 40MM LONG PHILLIPS HEAD SCREW M6 X 16MM MEDIUM PHILLIPS HEAD SCREW... - Page 6 ASSEMBLY INSTRUCTIONS Note: Steps 1 to 4 are best done with the barbeque carefully resting on its back as shown in Step 1 Step 1. Attach the four leg support brackets (2) to the firebox (1) using screws (A). Eight of the nuts (closest to the hot plate) are pre installed for your convenience. SHORT SCREWS 8PCS Attach the legs (3) to the leg support bracket (2) using long screws (E), washers Step 2.
- Page 7 Attach the handles (7) from underneath using screws (F) and washers (B). Step 3 WASHERS 4PCS MEDIUM SCREWS 4PCS Attach the gas cylinder hook (5) and heat insulation panel (6) at the same time Step 4 using short screws (A). Four of the nuts (closest to the heat insulation panel) are pre-installed for your convenience. SHORT SCREWS 4PCS...
- Page 8 Hang the grease cup onto its hook underneath the two burners. Step 5 Full assembly.
-
Page 9: Setting Up The Barbeque
SETTING UP THE BARBEQUE THIS APPLIANCE SHALL ONLY BE USED IN AN ABOVE GROUND OPEN AIR SITUATION WITH NATURAL VENTILATION, WITHOUT STAGNANT AREAS, WHERE GAS LEAKAGE AND PRODUCTS OF COMBUSTION ARE RAPIDLY DISPERSED BY WIND AND NATURAL CONVECTION 1. POSITIONING • Please make sure that the barbeque is NOT positioned underneath any combustible material or surface. - Page 10 2. PRECAUTIONS DO NOT OBSTRUCT ANY AIRFLOW PATH OR VENTILATION PATHS OF THE BARBEQUE • Do not obstruct any ventilation ports on the body of the barbeque. • The gas cylinder must be securely placed on the gas cylinder hook as supplied. • It is important that the gas cylinder is not positioned under the barbeque when in operation.
- Page 11 OPERATING YOUR BARBEQUE 1. WARNINGS: • Before using the barbeque please ensure you have read and understood the entire instructions manual. 2. PRIOR TO COOKING: • It is advisable to wash the cooking surface with soapy water, then apply a light coating of cooking oil before starting to cook.
-
Page 12: Care And Maintenance
CARE & MAINTENANCE BEFORE ANY CARE AND MAINTENANCE IS ATTEMPTED PLEASE ENSURE THAT THE BARBEQUE CONTROLS ARE IN THE ‘OFF’ POSITION AND THAT ALL SURFACES HAVE BEEN GIVEN SUFFICIENT TIME TO COOL DOWN. Please note the following when maintaining and caring for your barbeque: • Cleaning your barbeque regularly will help to keep a pristine look. -
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Potential Cause Corrective Action Cannot light burners Gas cylinder is empty Check and refill/exchange gas cylinder Regulator is faulty Check and replace if required Blocked burner Check and clean all burner holes Blocked gas jets Check and clean gas jets Blocked gas hose Check and clean gas hose Gas cylinder maybe too small Change to a larger cylinder Burners have a low flame or flashback Blocked burner Check and clean all burner holes Blocked gas jets Check and clean gas jets Blocked gas hose Check and clean gas hose High winds Move barbeque to a sheltered position SPARE PART LIST NO. GLG Codes Description Qty per BBQ G2DLK-H020100 FIREBOX G2DLK-A0208 LEG SUPPORT BRACKET G2DLK-A0301... -
Page 14: Technical Specifications
Please ensure all these locations are not obstructed by anything Need more information or assistance in anyway? You can call your nearest Barbeques Galore store where barbeque experts will be happy to help you. Just phone 1300 301 392 for your nearest store.
