3. Connect the printer to the computer with the Centronics or USB cable.
4 Plug the DC power cord into the power jack at the rear of the printer, and then plug
the AC power cord into a properly grounded receptacle.
USB
Centronics
RS-232C
Power Cord

3.2 Loading Media Stock

1. Insert spindle into a media roll (If your media core is 1 inch, remove the 1.5 inch core
adapter from the fixing tab).
1.5" Core Adapter
Printing Side Face up
Power Jack

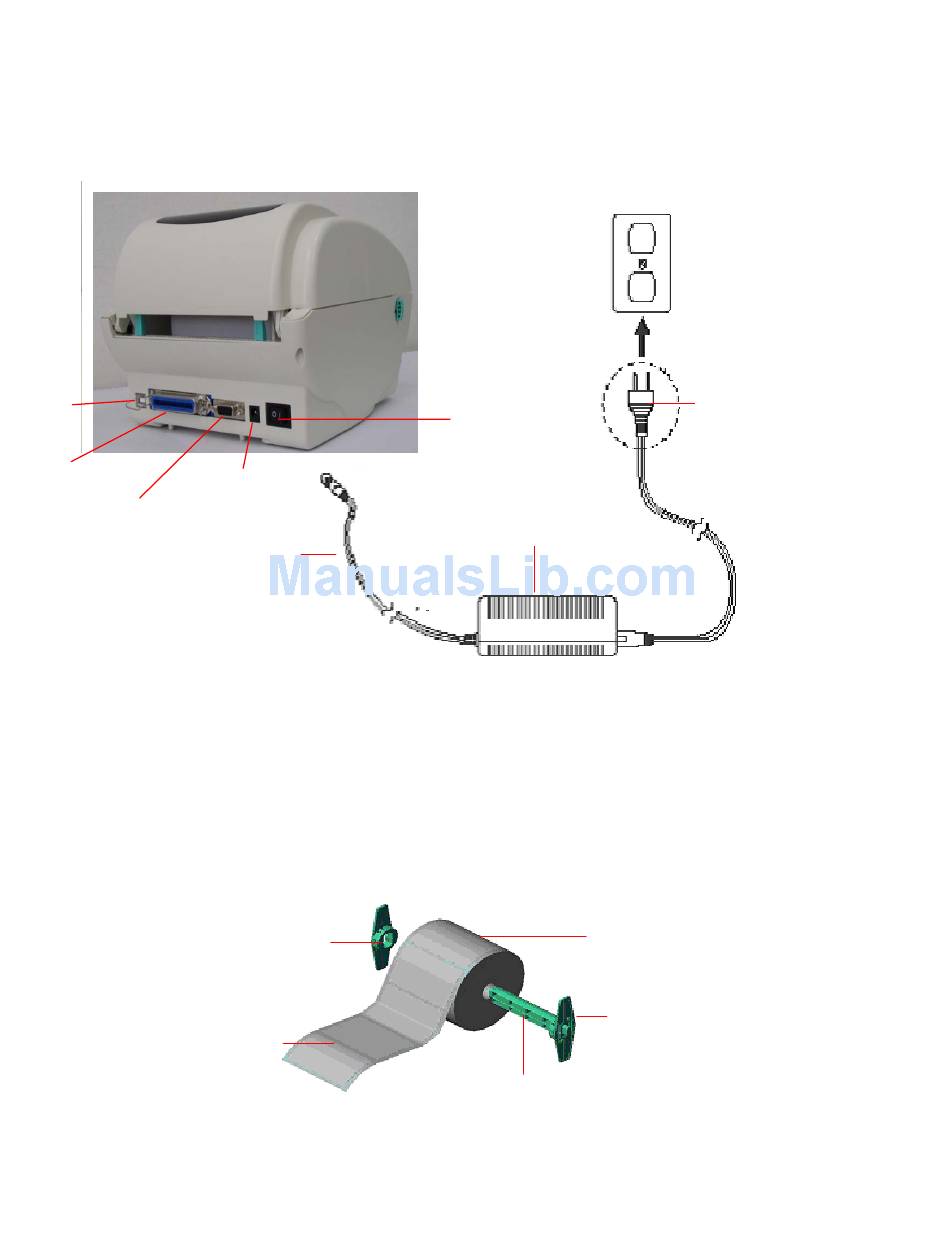

Fig. 5 Attach a power supply to a printer
Fig 6 Media roll installation (I)
Power Switch
Power Supply
Media Roll
1" Media Spindle
4
Plug
Fixing Tab
