3.4 Loading Labels for Peel-off Mode (Option)

1. Open the peel-off module by pulling it forward.
Peel-off Roller
Peel-off Panel

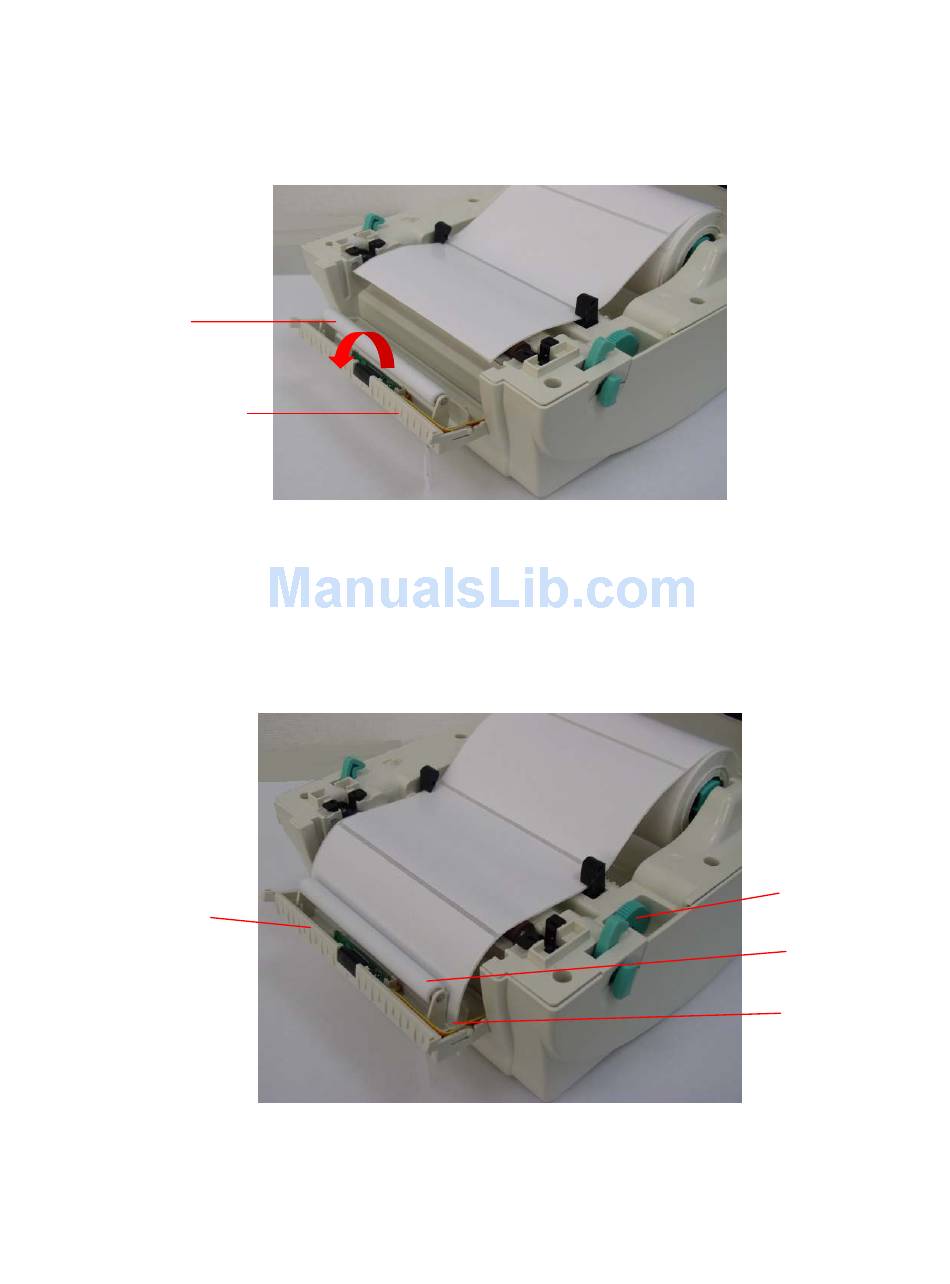

Fig. 9 Open the peel-off panel
2. Thread the label, printing side facing up, through the support guides.
3. Thread the label through the liner opening, which is beneath the roller.
4. Adjust the black center-biased media guides by turning the adjustment knob to fit the
edge of the label/backing.
Adjustment Knob
Peel-Off Panel
Roller
Liner Opening
Fig. 10 Loading Labels for peel-off mode
5. Lift the peel-off panel up and back into the closed position.
